Xiamen Acey New Energy Technology Co.,Ltd
![$this->product_detail['product_name']](/uploadfile/category/db6e9c0d653a96dbd1612d6f8f719bdf.jpg)
Brand:
ACEYItem No.:
ACEY-BCTCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:

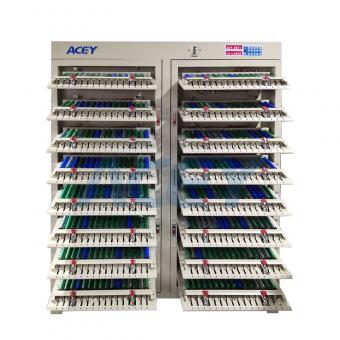

7daysCylindrical Batteries 18650 21700 26650 32650 32700 Charging And Discharging Tester BFGS For Battery Pack Assembly
Description
ACEY-BCT is divided into two types: cylinder, aluminum shell and polymer. The internal structure of the two is exactly the same, but the clamps are different. The cylinder and the aluminum shell use upper and lower needles to contact, while the polymer uses a gold-plated flat clamp to clamp the tabs for punching. Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.
Features
1. Each channel can be started and stopped at a single point, and the response speed is fast.
2. The operation is simple, convenient and intuitive.
3. Modular design, easy to maintain..
4. The digital current and voltage automatic calibration function.
5. Using network connection and SQL database.
6. The hardware technology is advanced, stable and durable.
Specification
|
Model No. |
ACEY-BCT |
|
Voltage and current |
5V/1A,5V/2A,5V/3A,5V/6A or others |
|
Channels |
256,512 or others. |
|
Battery type |
pouch or cylindrical cell |
|
Type |
Normal type or energy-saving type(can save 40% energy.) |
Product Details
512 Channel Battery Cell Charge Discharge Tester for 18650 21700 26650 32700
This battery testing machine can be used for cylindrical battery pack's capacity, internal resistance, charging and discharging test, etc.
512 Channel 5V 6A BFGS Lithium ion Battery Formation And Grading System
Lithium ion Battery Formation And Grading System is an instrument used to test the performance of batteries. Its main function is to evaluate the capacity, internal resistance, voltage, energy, temperature, and other parameters of batteries, as well as to detect any damage or defects in the batteries.
256 Channels 5V 20A Energy Saving Feedback Cylindrical Cell 33140 Capacity Grading Machine
This battery testing machine can be used for cylindrical battery pack's capacity, internal resistance, charging and discharging test, etc.Suitable for Cylindrical Cell 32140 33140 etc.
512 Channel 5V 6A Battery Cell Formation And Grading Tester For Lithium Battery
This battery testing machine can be used for cylindrical battery pack's capacity, internal resistance, charging and discharging test, etc.（Optional: Battery tester with tray loading and Energy feedback function.）
512 Channels 5V 5A Lithium Battery Cylindrical Cell Charging Discharging Testing Machine
5V 1A 2A 3A 5A 6A 512 Channels Li-ion battery charging and discharging test cabinet is a kind of equipment used to test the charging and discharging performance of Li-ion battery. It is usually composed of power supply system, load system, control system, data acquisition system, etc.
32140 33140 5V 10A Battery Charge Discharge Tester
256 Channel 5V 10A 20A battery charge discharge tester is used for 32140 33140 34189 cylindrical battery's capacity, internal resistance, charging and discharging test, etc.
Customized Automatic Electric Double Side Weld Machine For Lithium Battery Pack
ACEY-D300B is suitable for battery pack double-sided spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
1L Battery Slurry Mixing Machine Electric Vacuum Mixer With Tank
This instrument is suitable for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum.
