ACEY-AS11S automatic battery cell sorting machine tests and groups 14650, 18650, 21700, 26650 and 32700 cylindrical cells at approximately 3,200 cells per hour. It features a HIOKI BT3561A tester, barcode and QR code scanning, separate reject collection, and MES connectivity.
Brand:
ACEYItem No.:
ACEY-AS11SCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days

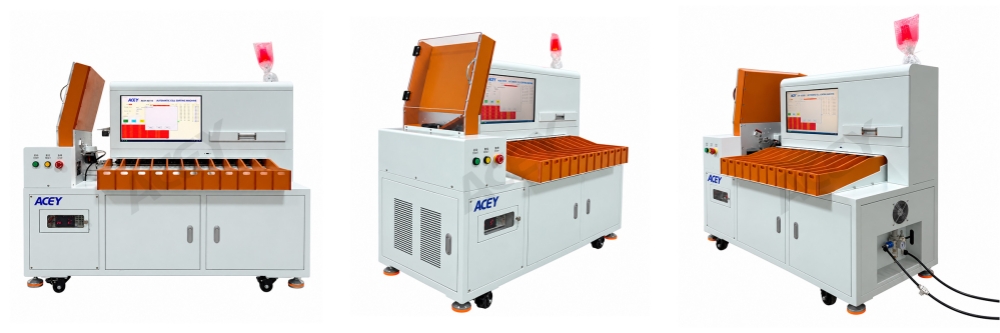

ACEY Automatic Cylindrical Battery Cell Sorting Machine With Barcode Scanner
Product Description

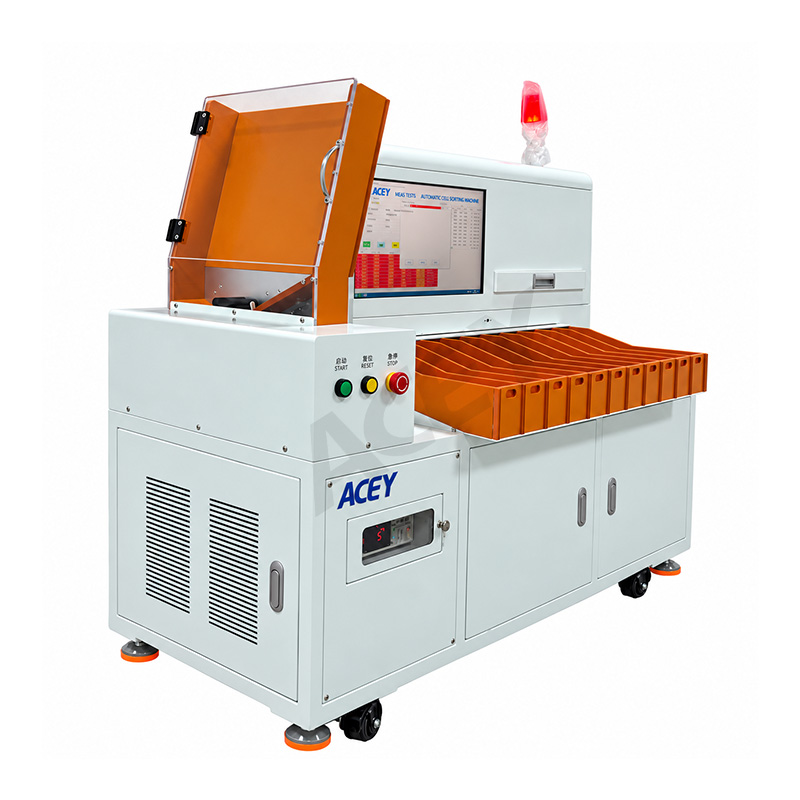

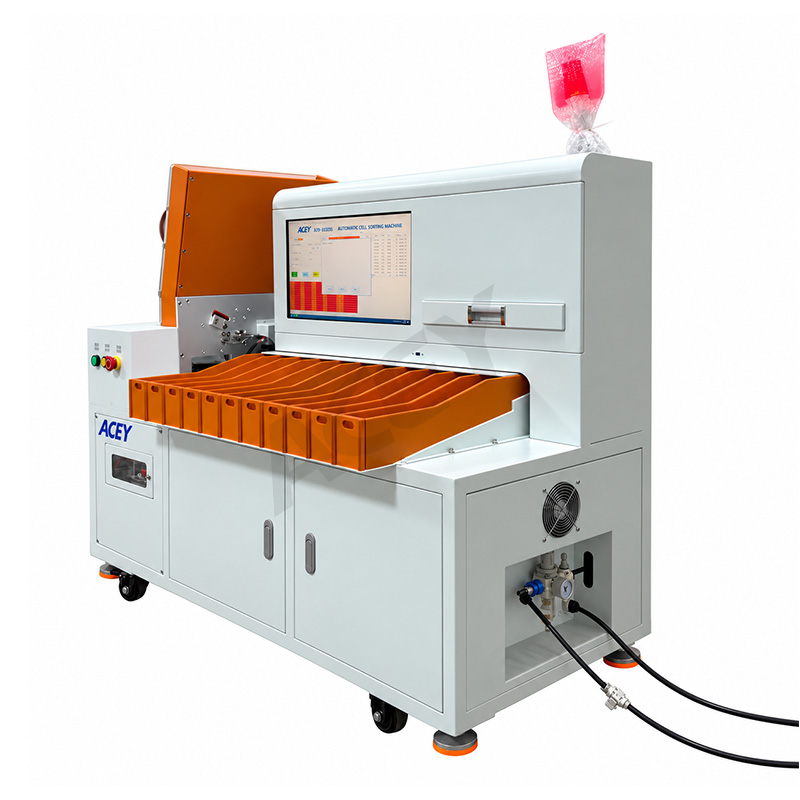

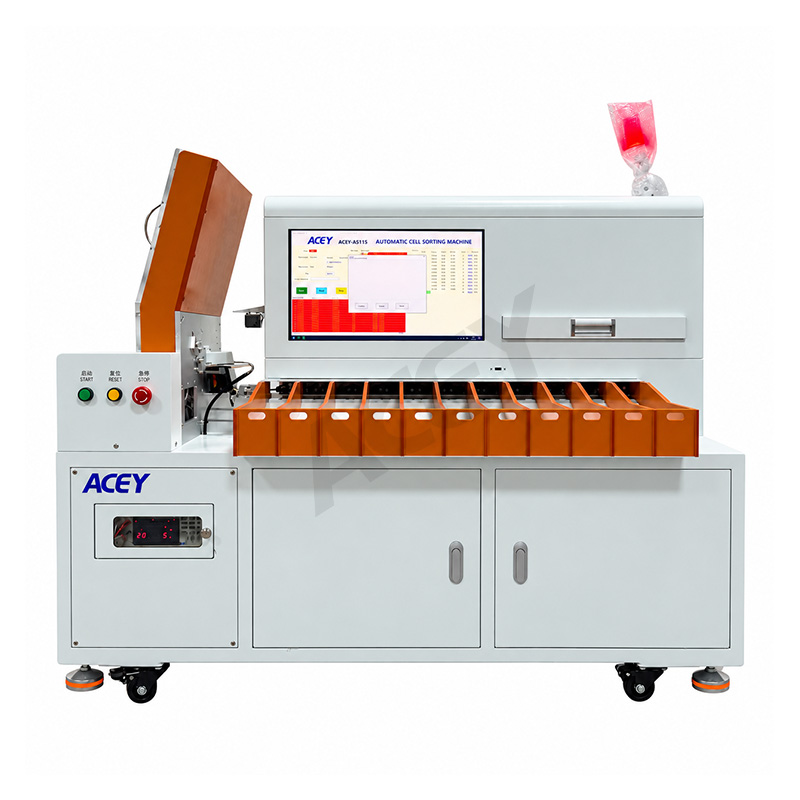

ACEY-AS11S is an 11-channel cylindrical battery sorting machine for cell testing and matching before battery pack assembly. It combines PC-based control, a motion controller, precision servo motors and a HIOKI BT3561A battery tester to automate feeding, testing, sorting and collection.
Cells are loaded through the hopper and feeding chute, then sorted into collection channels according to the configured test criteria. Rejected cells are collected separately. The system supports test data analysis, storage and production report generation, helping operators manage cell batches and review sorting results.
The machine can operate independently or connect with an automatic insulation paper application machine. Barcode scanning and MES integration support data collection and transfer within a battery pack production workflow.
Product Features
| Item | Specification |
| Model | ACEY-AS11S |
| Equipment type | Automatic cylindrical battery cell sorting machine |
| Sorting channels | 11 |
| Compatible cell formats | 14650, 18650, 21700, 26650; 32700 optional |
| Sorting throughput | Approximately 3,200 cells/hour |

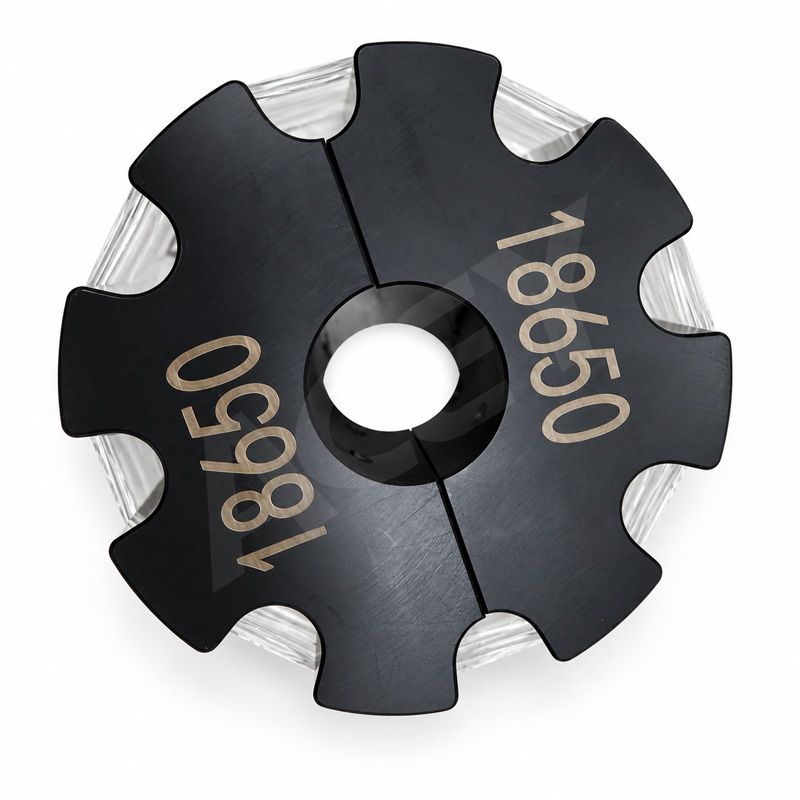

| Cell format changeover | Approximately 15 minutes |
| Feeding method | Hopper and feeding chute |
| Cell collection | Collection chutes with separate reject collection |
| Control system | PC, motion controller and precision servo motors |

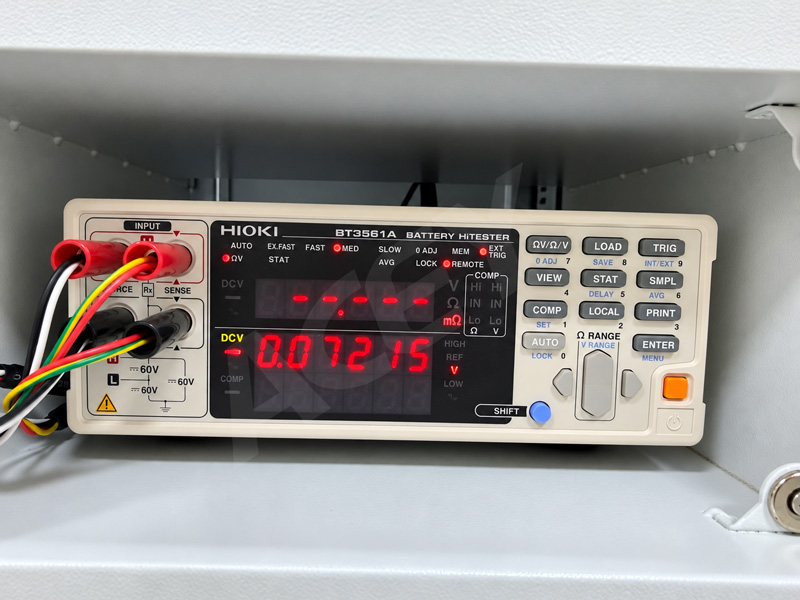

| Battery tester | HIOKI BT3561A |

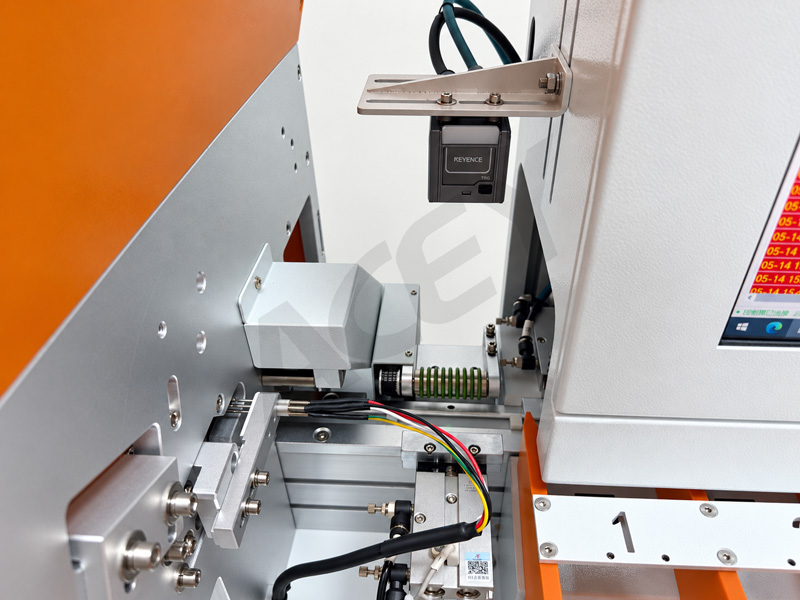

| Code scanning | Barcode and QR code |
| Data functions | Test data analysis, storage and production reports |
| MES integration | Supported |
| Connection to insulation paper application machine | Supported |
| Power supply | AC 220 V, 50/60 Hz |
| Total power | ≤1.5 kW |
| Compressed air pressure | 0.5–0.6 MPa |
| Dimensions (L × W × H) | 1,510 × 700 × 1,360 mm |
| Weight | 198 kg |
| Exterior color | Computer white; other colors available on request |
| Mobility | Swivel casters |
| Equipment noise | ≤80 dB |
Applications
ACEY-AS11S battery cell testing and sorting machine is used for cylindrical cell sorting and matching in battery pack production for power applications, 3C digital products and energy storage systems. It helps manufacturers organize tested cells into groups before subsequent pack assembly operations.

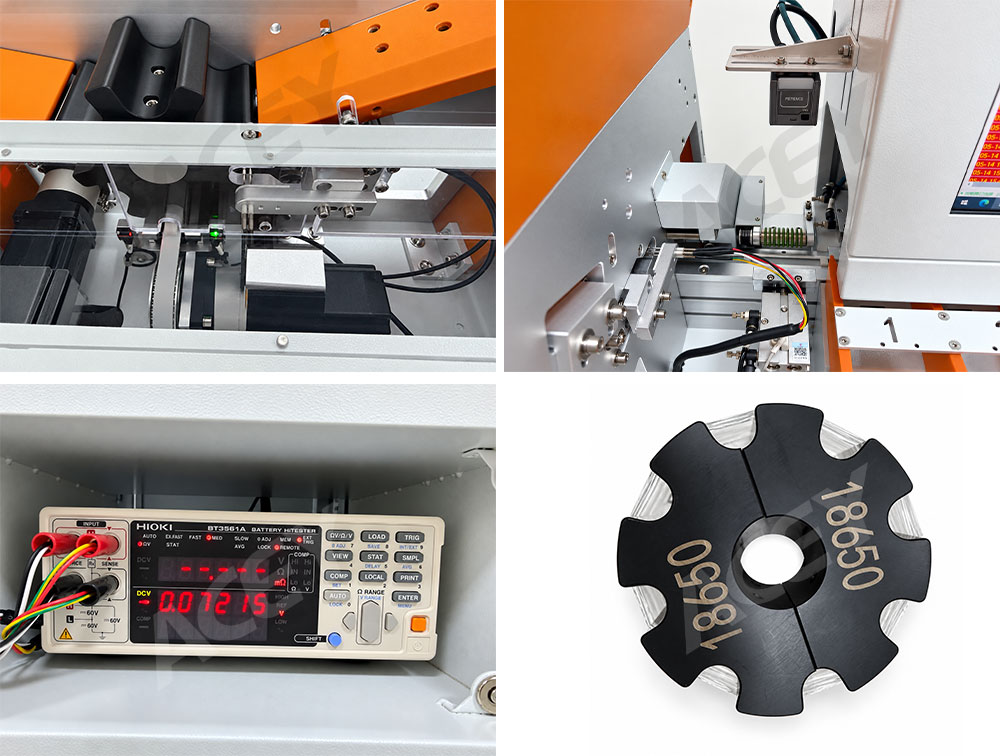

Product Details
Request a Quotation
Contact ACEY with your cell dimensions, required sorting criteria and production target. We can confirm the machine configuration, cell format options and integration requirements, and provide a detailed quotation.
FAQ
1. Which battery cell sizes can the ACEY-AS11S sort?
ACEY-AS11S lithium battery sorting machine supports 14650, 18650, 21700, 26650 and 32700 cylindrical cells. Please specify the required cell sizes before ordering so we can confirm the configuration.
2. Does ACEY-AS11S battery sorter support barcode scanning and MES integration?
Yes. ACEY-AS11S battery sorting machine includes a scanner for barcodes and QR codes and supports MES integration for data collection and uploading. Interface requirements should be confirmed before ordering.
3. Which battery tester is installed in the machine?
ACEY-AS11S cylindrical battery sorter uses a HIOKI BT3561A battery tester for internal resistance measurement. Test data can be stored and analyzed through the machine’s PC-based control system.
