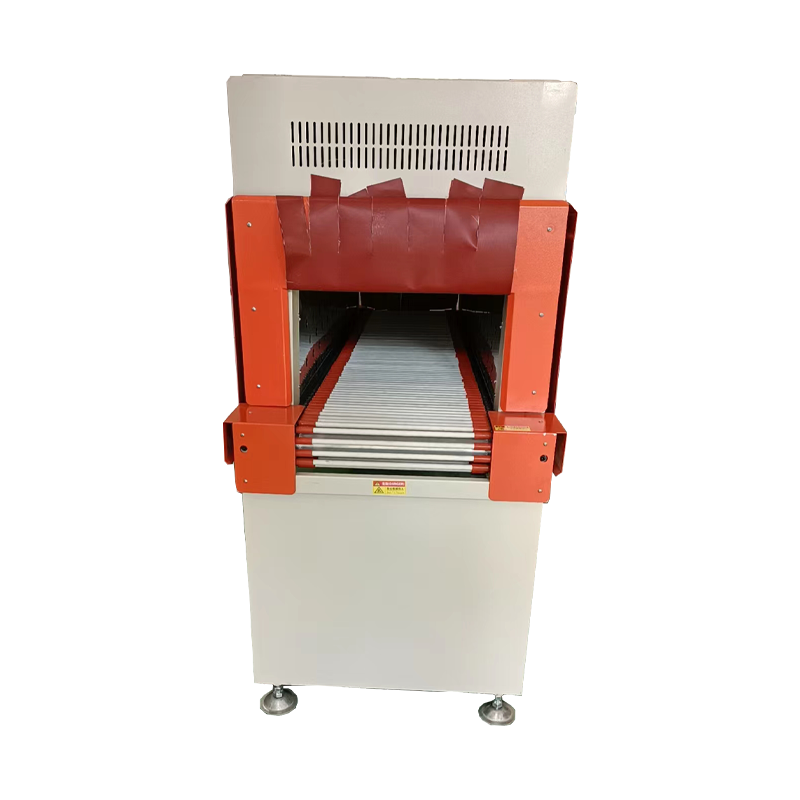

ACEY-5035C is used in the assembly and packaging of battery packs, particularly for lithium-ion batteries and other types of rechargeable batteries. These machines are designed to securely wrap and seal battery packs using heat shrinkable film, providing protection, insulation, and a clean appearance to the battery packs.
Brand:
ACEYItem No.:
ACEY-5035CCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7daysAutomatic Heat Shrink Tunnel Machine For PP PE POF PVC
Description
ACEY-5035C is an economical shrink packaging machine. The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances,auto parts, furniture, flooring and other individual or group shrink wrap.
Features
1.electronic speed governor to adjust the speed of conveyor belt conveyor speed.
2.using a double layer heat insulation device, the appearance of the machine is not too hot.
3.high temperature insulation cord, greatly reduce the heat loss.
4.the use of solid conveying chain roller, covered by silica gel ube,Can bear heavy objects and would notbe distorted.
Specification
Power supply:
380V 50-60HZ
Power:
18KW
Dimensions:
1800mm x 500mm x 350mm
Transporting velocity:
0-15m/min
Conveying material:
Mesh
Conveyor loading:
25kg max
Machine size (l * W * H):
2100mm x700mm x1620mm (L* W * H)
Weight:
300kg
Shrink film:
PE,POF,PVC,PP
Model:
ACEY-5035C
Product Display

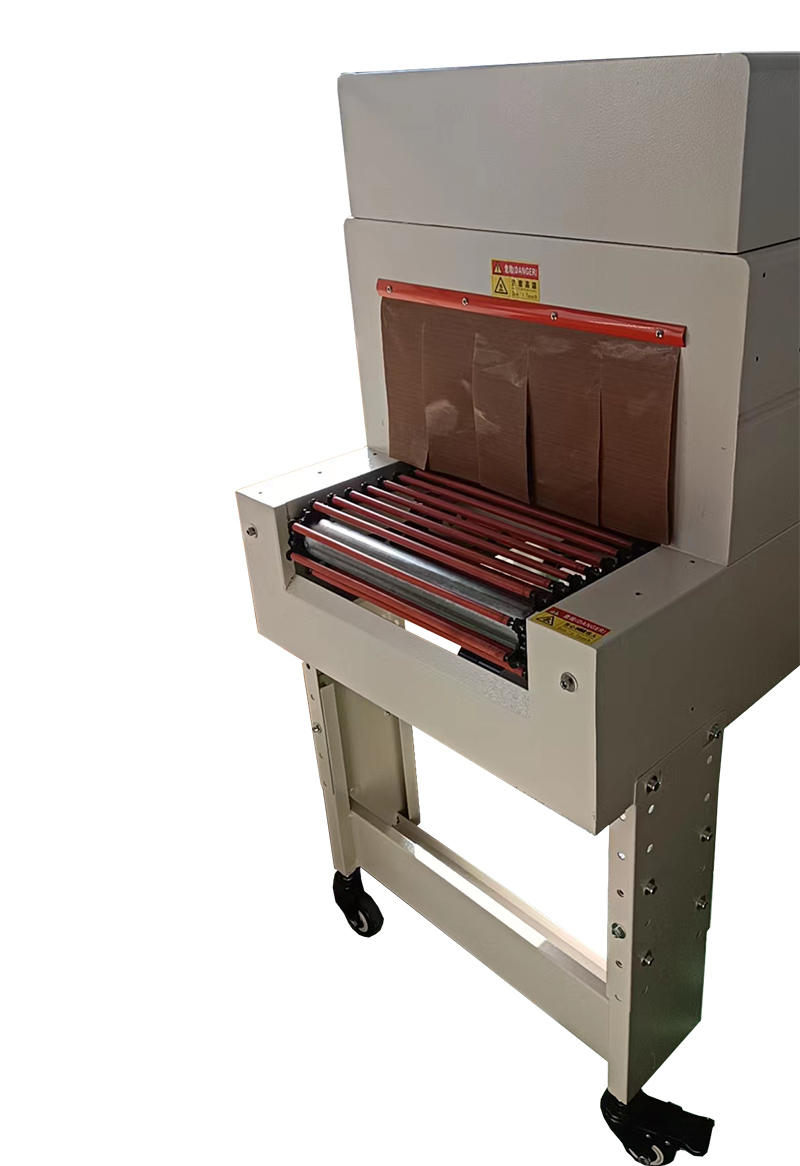

Automatic PVC POF Packaging Machine Film Heat Shrink Wrapping Machine
The heat shrink packaging machine uses imported motor makes it more stable during pushing and sealing;And It has a compact structure and a small footprint;Specially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;Usage of imported electrical components reduces failure during the using process.

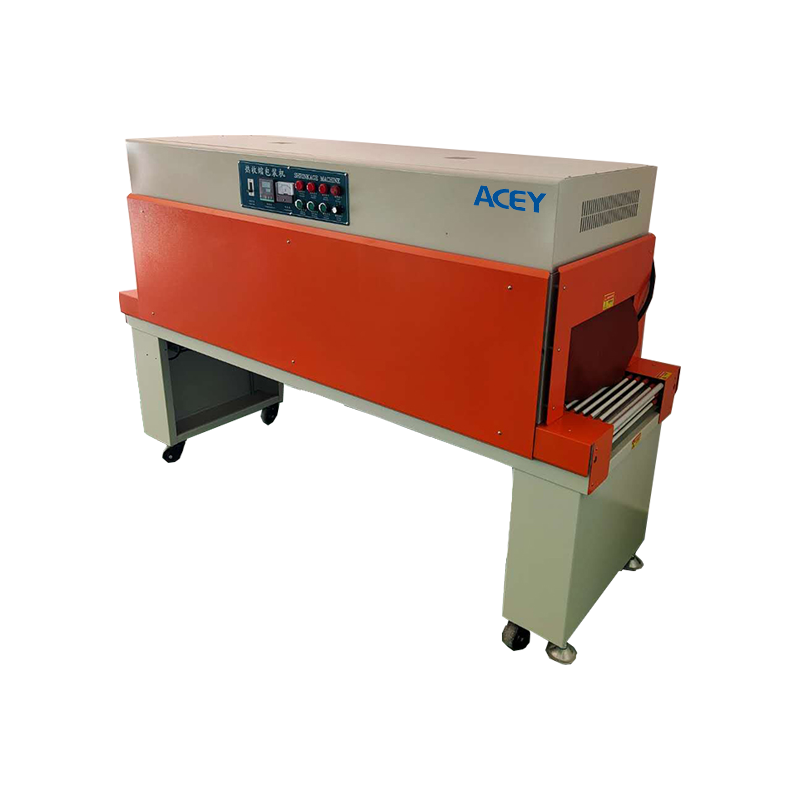

Automatic PVC POF PE PP Film Heat Shrink Packing Wrapping Machine
BSP series with the lack of phase, phase error, short circuit automatic fault safety alarm. Mining With stainless steel heater, high power supply of wind motor,so that the temperature of shrinkage furnace heatingup quickly, The air quantity is big, the wind is even,according to the size of the product, the quantity of the product can be adjusted. Conveyor belt speed andfurnace chamber temperature to achieve the besteffect of contraction.

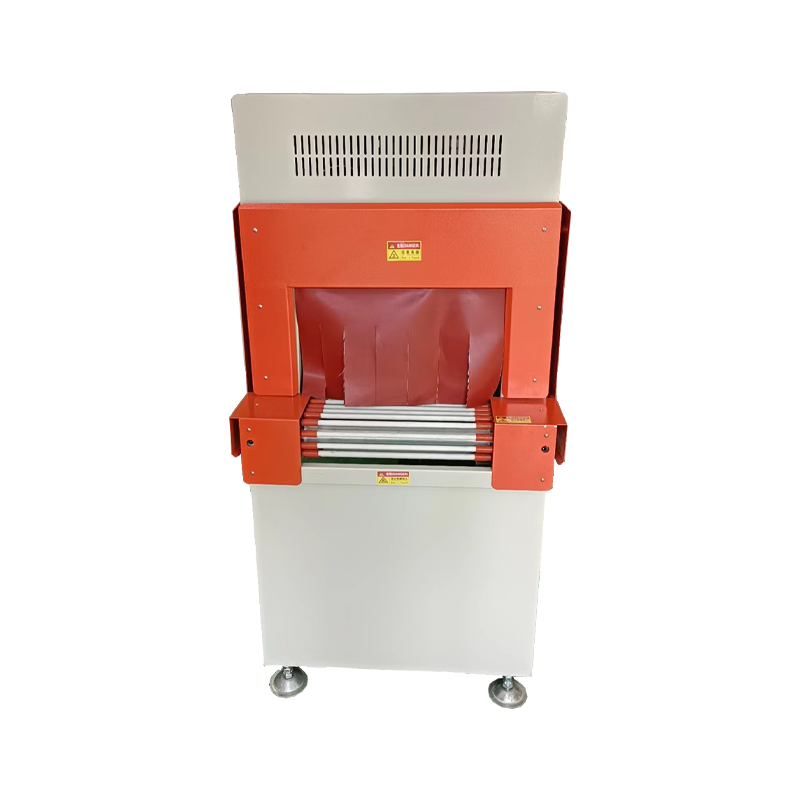

Automatic POF PE PP Packaging Machine PVC Heat Shrink Wrapping Machine
ACEY-5035 is an economical shrink packaging machine. The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances,auto parts, furniture, flooring and other individual or group shrink wrap.
POF PVC Shrink Wrap Packaging Machine
ACEY-4020 Heat Shrink Packaging Machine is designed for cylindrical and combined battery heat shrink packaging process, using a combination of far-infrared and circulating wind heating technology to ensure uniform heat shrinkage of the battery plastic cover, beautiful deformation and high concentration. Suitable for PVC, PP, PE, POF and other types of shrink film.
China Lab Mixing Machine For Li ion Battery Laboratory Research
It is made of SUS304 stainless steel and is resistant to acid, alkali and organic solvents. At the same time, the mixing barrel can be vacuumed and the slurry can be stirred under vacuum to achieve no bubbles in the slurry.
8S 24V 150A Smart BMS Lifepo4 For Lithium Ion Battery Packs
ACEY-SP08S004 is suitable for lithium batteries with different chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc.
Battery Vacuum Heat Pre-sealing And Electrolyte Diffusion Chamber All-in-one Machine
Vacuum diffusion and pre-sealing all-in-one machine for professional lithium-ion battery research.
640L 3 Layers Industrial Large Drying Oven For Battery Electrode
This Drying Oven is suitable for the baking process of battery electrode piece and battery cell to be injected in the production process of lithium battery.
