Xiamen Acey New Energy Technology Co.,Ltd
It is suitable for the lamination process of battery cells. The positive and negative electrodes and the diaphragm are laminated in a Z shape.
Brand:
ACEYItem No.:
ACEY-SSM-BCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:

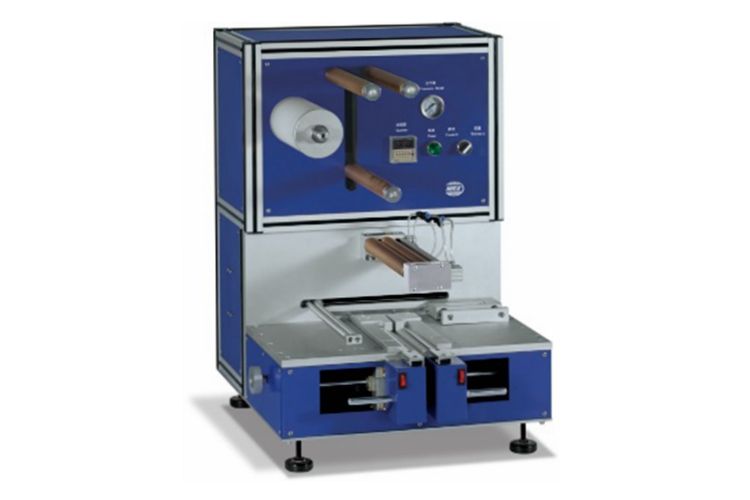

7daysSemi-Automatic Pouch Battery Electrode Stacking Machine
Description
The device is suitable for lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device, PLC control panel. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency.
Features
* Desktop type, can be placed on a normal desktop;
*The adjustment, operation and maintenance of the machine is simple and easy;
*Applicable to a large range of cell laminations;
* High efficiency, with digital counter;
* Use the foot switch to control the cylinder movement;
*The machine is small in size and exquisite in appearance;
Specification
Lamination accuracy
neatness is better than ±0.5mm
Lamination thickness
Max.12mm (the adjustment plate needs to be replaced if it is thicker)
Diaphragm roll diameter
Max. 220mm
Air source
0.4~0.6MPa compressed air
Lamination size
Min. L44mm*W44mm Max. L200mm*W150mm
Using environment
Environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference
Power source
voltage single-phase 220VAC±10% (110VAC can be customized), frequency 50Hz/60Hz, power 200W
Dimensions
L510mm*W825mm*H585mm
Weight
80Kg;

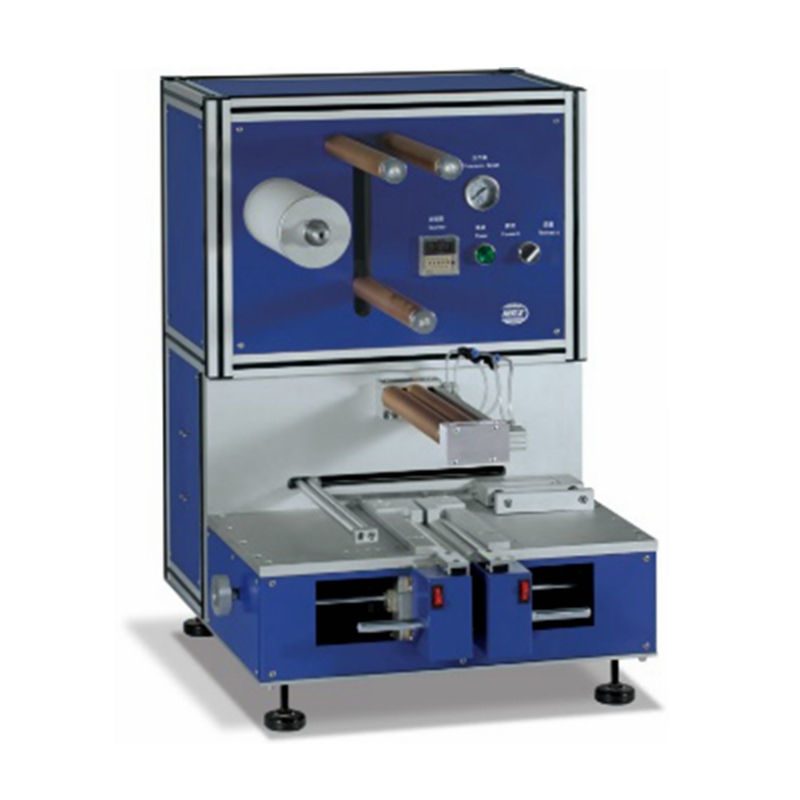

Product Display
Packing

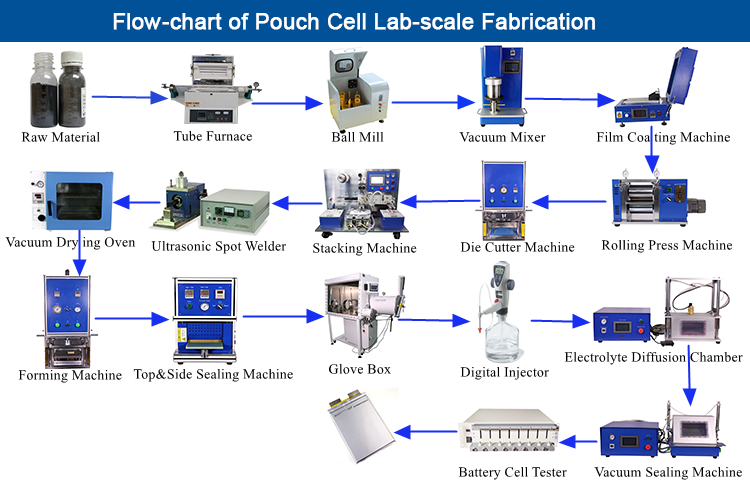

One-stop Solution
