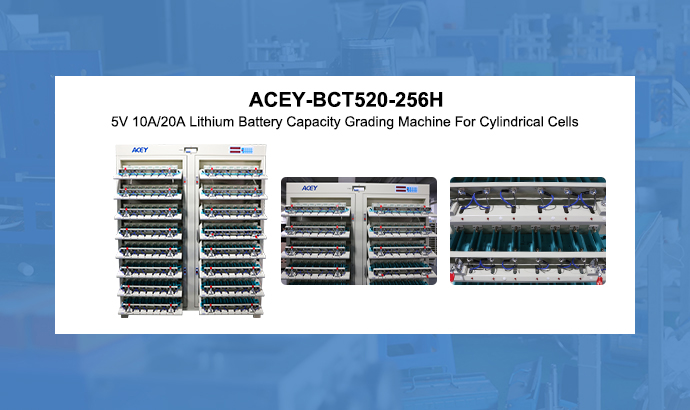

This 5V 10A/20A capacity grading machine is used to test the capacity of cylindrical batteries through cyclic charging and discharging tests. The whole machine has 256 channels and can test 256 cells simultaneously. It uses a customized battery cell holder for cylindrical batteries with diameters from 32 to 60 mm and length range from 90 to 165 mm. The voltage & current accuracy up to 0.5‰ and with energy-saving feedback function.
This machine is used to test the capacity of prismatic batteries through cyclic charging and discharging tests. The whole machine has 128 channels and can test 128 cells simultaneously. The voltage and current accuracy up to 0.5‰ and has energy-saving feedback function, in addition, alligator clamps is optional if needed.

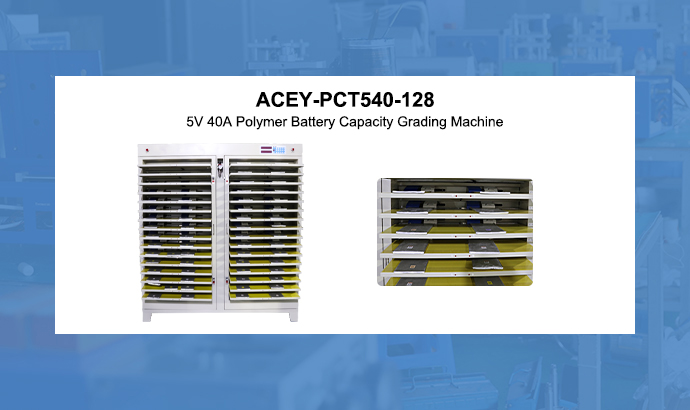

The machine is specialized in testing the capacity of pouch cell by cyclic charging and discharging. The whole machine has 128 channels and can test 128 cells at the same time. It is the whole cabinet control, with the function of automatically clamping the fixture, saving working time and improving working efficiency.

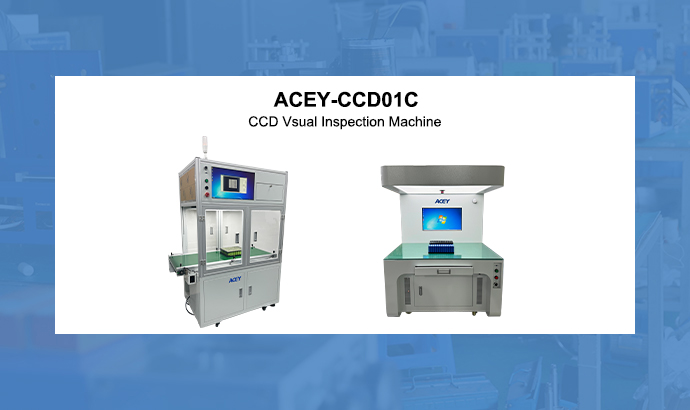

CCD tester is used to automatically detect the positive and negative electrodes of cylindrical lithium battery cells before spot welding. It adopts a multifunctional CCD vision detection system using machine vision technology, which can be used for polarity detection of various batteries, saving labor costs, and can perform highly repetitive tasks.

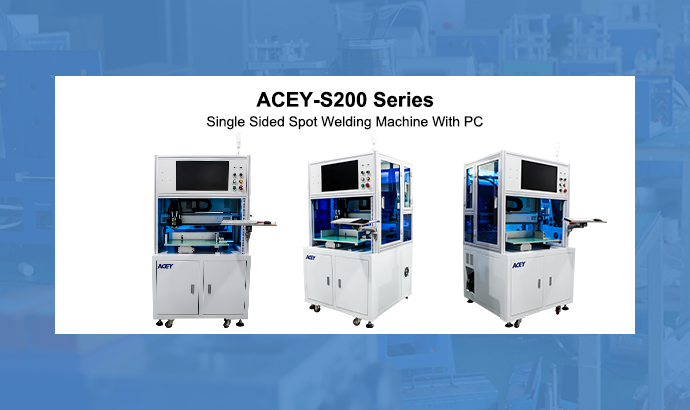

Single sided spot welding machine is used for cylindrical lithium battery pack assembly of battery cells in multiple series parallel combination welding, like 18650, 21700, 26650, 32650, 32700 etc cylindrical batteries. It can be configured with different power supplies, such as DC inverter welding power supply and transistor welding power supply. The welding stroke also can be customized.

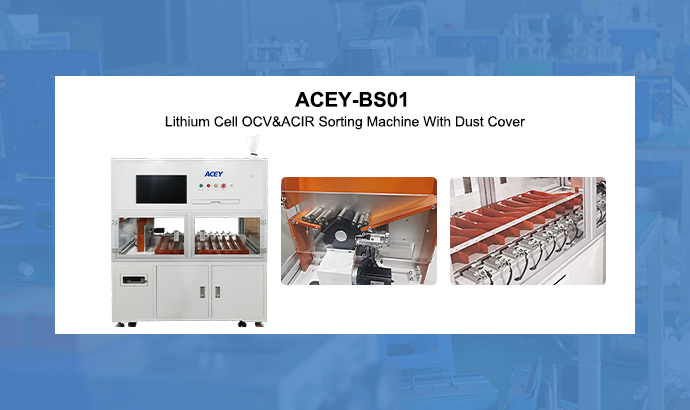

This 11-channel battery sorting machine with dust cover is used in testing the open circuit voltage and AC internal resistance of lithium batteries with diameter of 18 to 32mm and length of 65 to 70mm. The high-precision tester is available in either HK or HIOKI brands, with the option of barcode scanning function, which can track the data of each cell, facilitating data management.

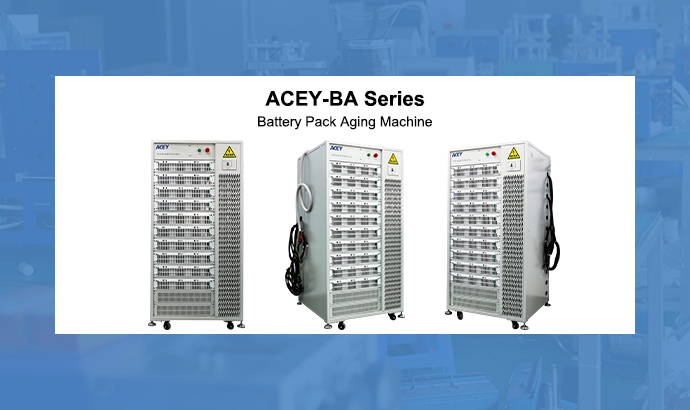

Battery aging machine is used for aging testing of ternary, lithium iron phosphate, lead-acid, nickel hydrogen nickel cadmium and other battery packs. The output voltage(6V-1650V) and output current range(20A-1000A) of the equipment are adjustable. It is suitable for charging and discharging testing of battery packs such as vacuum cleaners, electrical tools, scooter, E-bike, EV and so on.

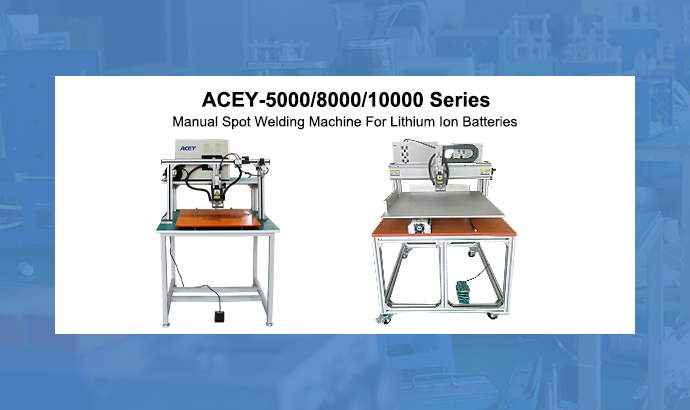

This manual spot welder with optional 5000A, 8000A, 10000A transistor or DC inverter welding power supply is used for manually welding pure nickel or nickel-plated steel strips onto cylindrical lithium-ion battery packs in the process of assembling cylindrical battery packs, such as 18650, 21700 26650 32650 32700 and other cylindrical batteries, and this machine also can be customized according to the user's needs.
