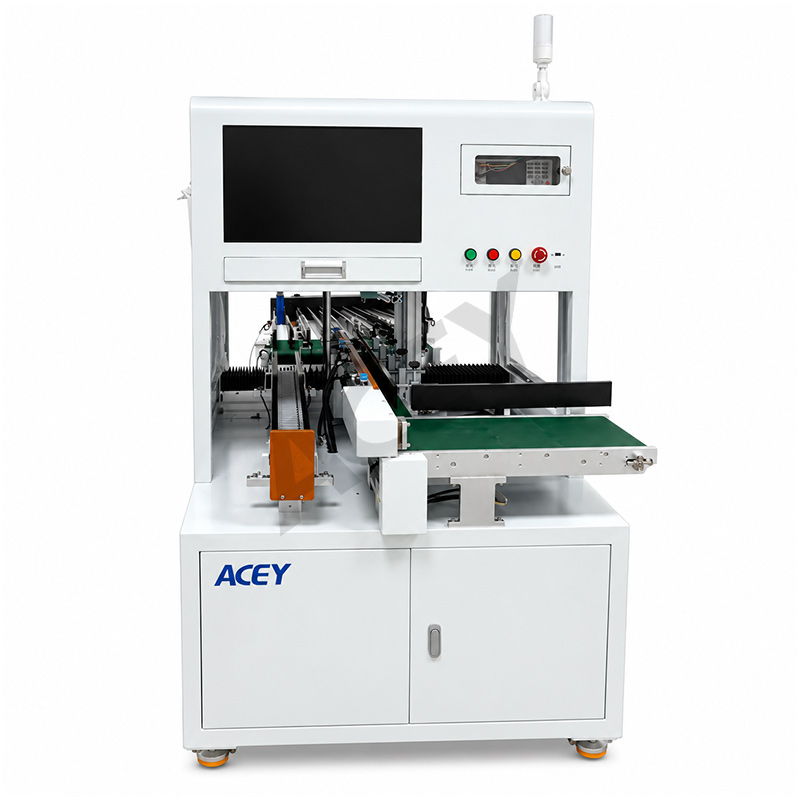

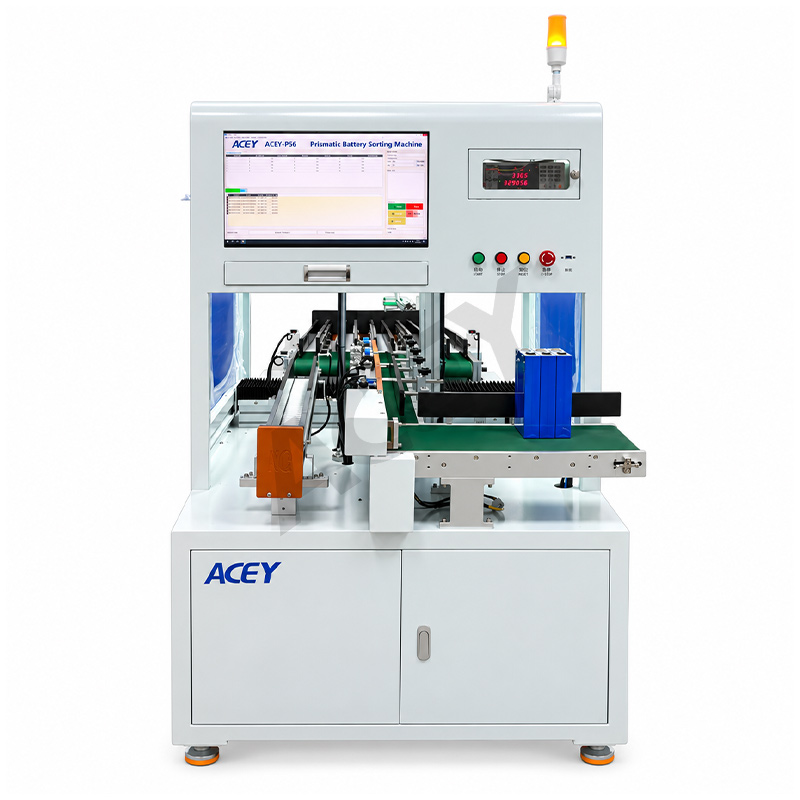

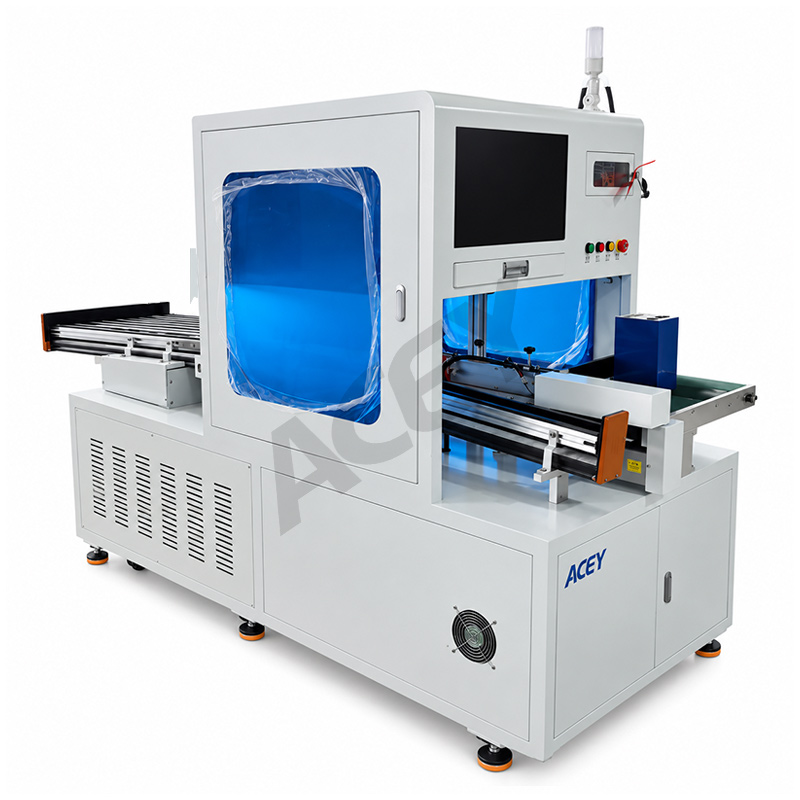

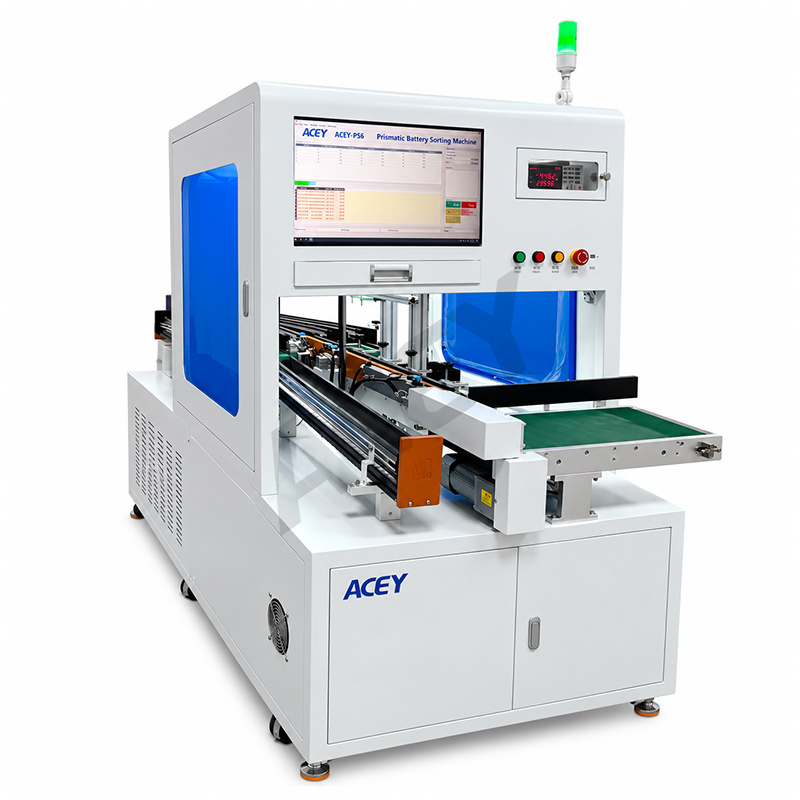

ACEY-PS6 automatic prismatic battery sorting machine provides six sorting grades (5 OK + 1 NG) at speeds of up to 1,000 cells per hour. It combines manual loading with automatic inspection, code scanning and sorting to support cell matching before battery pack assembly. Internal resistance testers from different brands can be configured to meet customers’ measurement accuracy requirements.
Brand:
ACEYItem No.:
ACEY-PS6Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysTechnical Parameters
| Item | Specification |
| Model | ACEY-PS6 |
| Applicable Cell Type | Prismatic battery cells |
| Compatible Cell Length | 100–245 mm |
| Compatible Cell Width | 20–75 mm |
| Compatible Cell Height | 100–290 mm |
| Sorting Channels | 6 Channels: 5 OK + 1 NG |
| Loading Method | Manual loading |
| Inspection and Sorting | Automatic |
| Maximum Sorting Speed | Up to 1,000 cells/hour |
| Control System | Computer + PLC |
| Motion System | Servo-driven linear modules |
| Internal Resistance Tester | Optional |
| Code Scanning | QR codes and barcodes |
| Data Recording | Cell identification codes and test data |
| Production Data Interface | MES interface |
| Data Analysis | SPC analysis reports |
| Power Supply | AC 220 V, 50/60 Hz |
| Total Power | ≤1.5 kW |
| Compressed Air Pressure | 0.5–0.6 MPa |
| Equipment Dimensions | Approx. L2483 × W1015 × H1646 mm |
| Equipment Weight | Approx. 477 kg |
| Equipment Color | Computer white; other colors available on request |
| Noise Level | ≤80 dB |
Applications
ACEY-PS6 prismatic battery sorting equipment supports prismatic cell sorting and matching for:

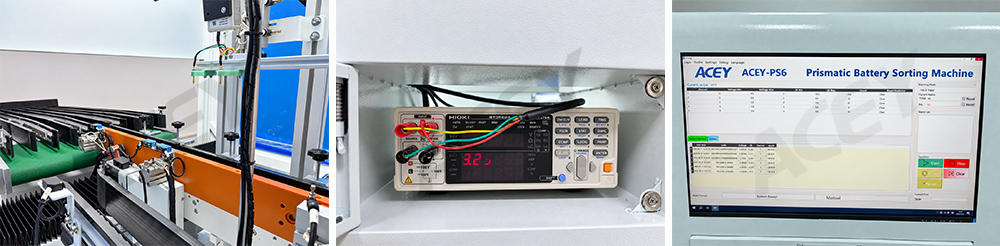

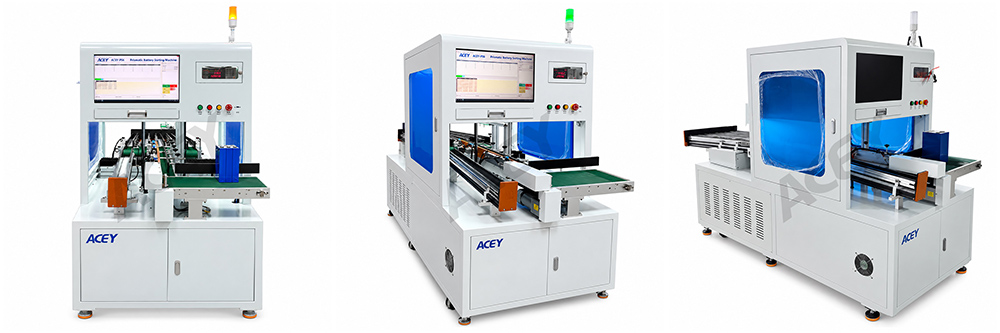

Product Details
Frequently Asked Questions
1. What sizes of prismatic battery cells can the ACEY-PS6 handle?
The ACEY-PS6 accommodates cells measuring 100–245 mm in length, 20–75 mm in width and 100–290 mm in height. Send us your cell drawing and terminal layout so we can confirm compatibility.
2. Can we choose the internal resistance tester brand?
Yes. Testers from brands such as HIOKI and HK can be configured according to your measurement accuracy requirements. Please provide your required test range and accuracy when requesting a quotation.
3. Can we trace each cell’s test results?
Yes. The machine reads cell QR codes or barcodes and records the identification information together with test results, supporting traceability during pack assembly.
