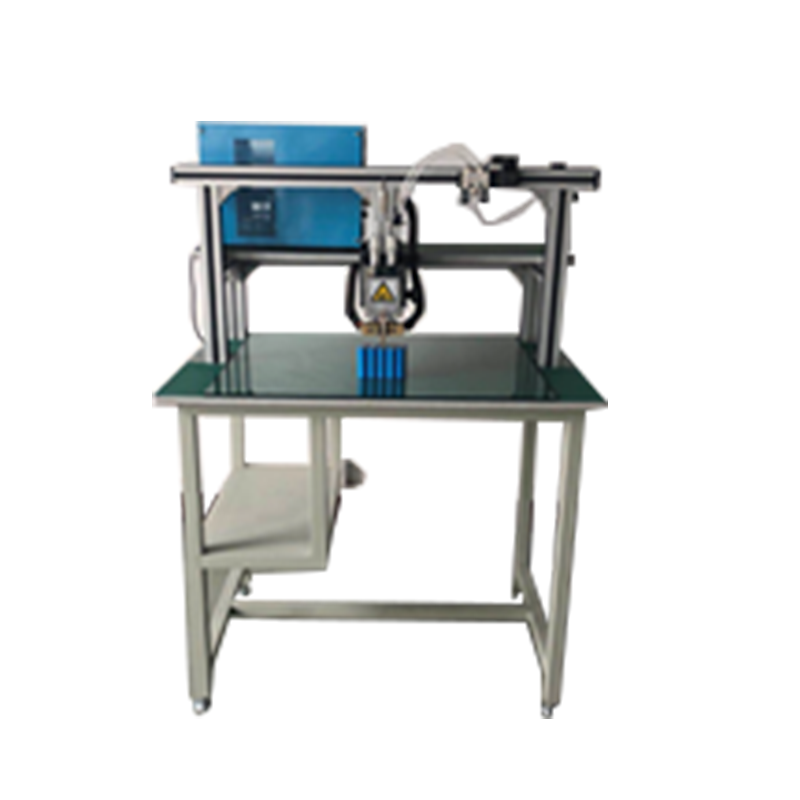

Manual AC Power Gantry Spot Welder For Battery Pack Assembly

ACEY-1000C equipped  with advanced 220V AC welding power supply, Suitable  for battery pack spot welding and assembly in the factory.

  • Brand:

    ACEY
  • Item No.:

    ACEY-1000C
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Manual AC Power Gantry Spot Welder For Battery Pack Assembly

Description

This kind battery spot welder is mainly used for 18650, 26650, 32650 cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.

Features


1. This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces.

2. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition.


Specification

Model No.


ACEY-1000C


Energy storage capacitor

6600UF
Max output power of transformer
18 KVA
Output max short circuit current
5000A
Prewelding voltage
80.0V -- 330V adjustable, accuracy 0.5V
Welding voltage
80.0V -- 330V adjustable, accuracy 0.5V
Welding time
1.0ms -- 20.0ms adjustable, accuracy: 0.1ms
Applicable scope
Max thickness of parallel welding: 0.03mm~0.15mm
Max thickness of upper and lower butt welding: 0.1mm + 0.3mm
Machine weight
40KG
Dimensions
350L x 180W x 280H (unit: mm)
Input power supply
single-phase AC220V/50Hz
Input current
< 5A
Input power
< 1200W
