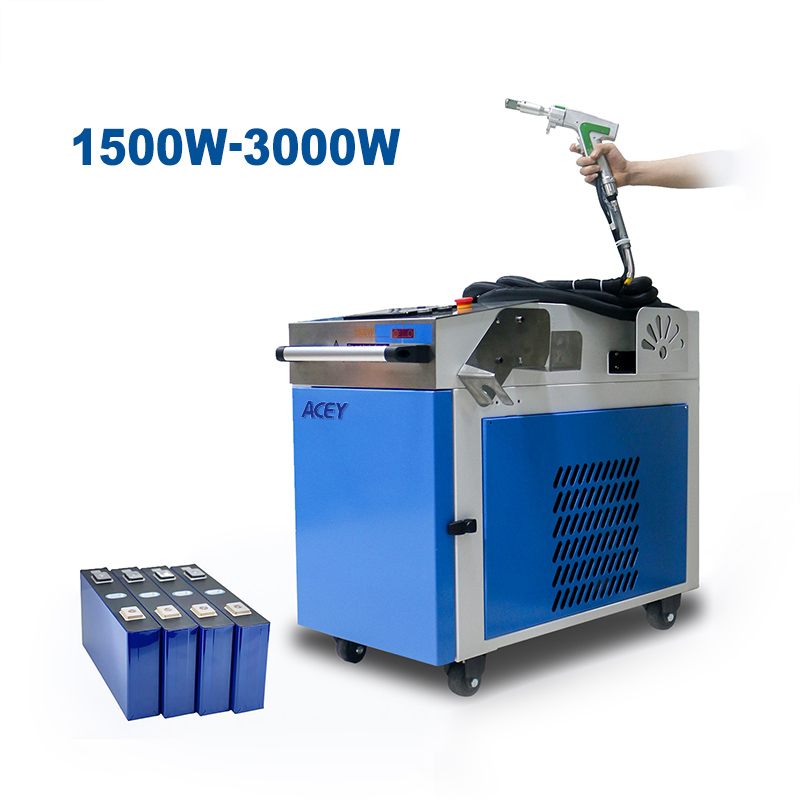

1500W 2000W 3000W Handheld Galvanometer 3 In 1 Fiber Laser Welding Machine

ACEY handheld galvanometer laser welding machine is specifically designed for welding various materials such as aluminum, nickel, copper, etc. on the electrodes of lithium batteries. It adopts advanced control systems and high-quality lenses, which can work continuously for a long time and maintain stable welding quality. It is suitable for major new energy vehicle maintenance, lithium battery dealers, and battery pack manufacturers.
  • Brand:

    ACEY
  • Item No.:

    ACEY-HLW
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    T/T
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

1500W 2000W 3000W Handheld Metal Laser Welder 3 in 1 Lithium Battery Fiber Laser Welding and Cutting Machine



Introduction:

ACEY Lithium Battery Special Laser Welding Machine adapts handheld welding with built-in biaxial galvanometer device.It can spot weld aluminum,nickel,copper and other materials on lithium battery electrodes.Precise and reliable welding reduces the contact  resistance  of lithium  batteries  during  assembly  and  improves  the  output and performance  of  lithium  battery  packs.It  has  an  8-meter-long  cable,which  can  easily weld large-sized battery packs for new energy vehicles and reduce the requirements for operating equipment.


Main feature:

  1. The welding gun with built-in biaxial galvanometer device achieves precise positioning of tiny welding spots and ensure welding quality and accuracy.
  2. The high-speed swinging lenses guide the laser for welding.The welding speed is faster than the traditional method and improves production efficiency.
  3. Achieve multi-shape welding through program control,and flexibly adapt to the welding requirements of various complex shapes.
  4. Equipped with software of graphics processing functions,which makes operation easier.
  5. It uses an advanced control system and high-quality lenses and has very good stability and can work continuously for a long time with stable welding quality.
  6. It is suitable for welding and cutting various metal materials,such as stainless steel, tungsten steel,aluminum alloy,etc.
  7. The output energy waveform can be set and waveform controlled to achieve a more deal welding effect according to different welding materials.
  8. Various welding copper nozzles can be switched helps to weld special-shaped materials with ease.


Technical parameters

Product name Handheld Galvanometer-Type Laser Welding Machine
Supply voltage AC 110V or 220V Power consumption ≤6KW
Output power 1500W/2000W/3000W Laser wavelength 1070±10nm
Cooling system Water cooling Welding head weight 0.9KG
Size 58*110*80cm Machine weight 133KG


Products Details

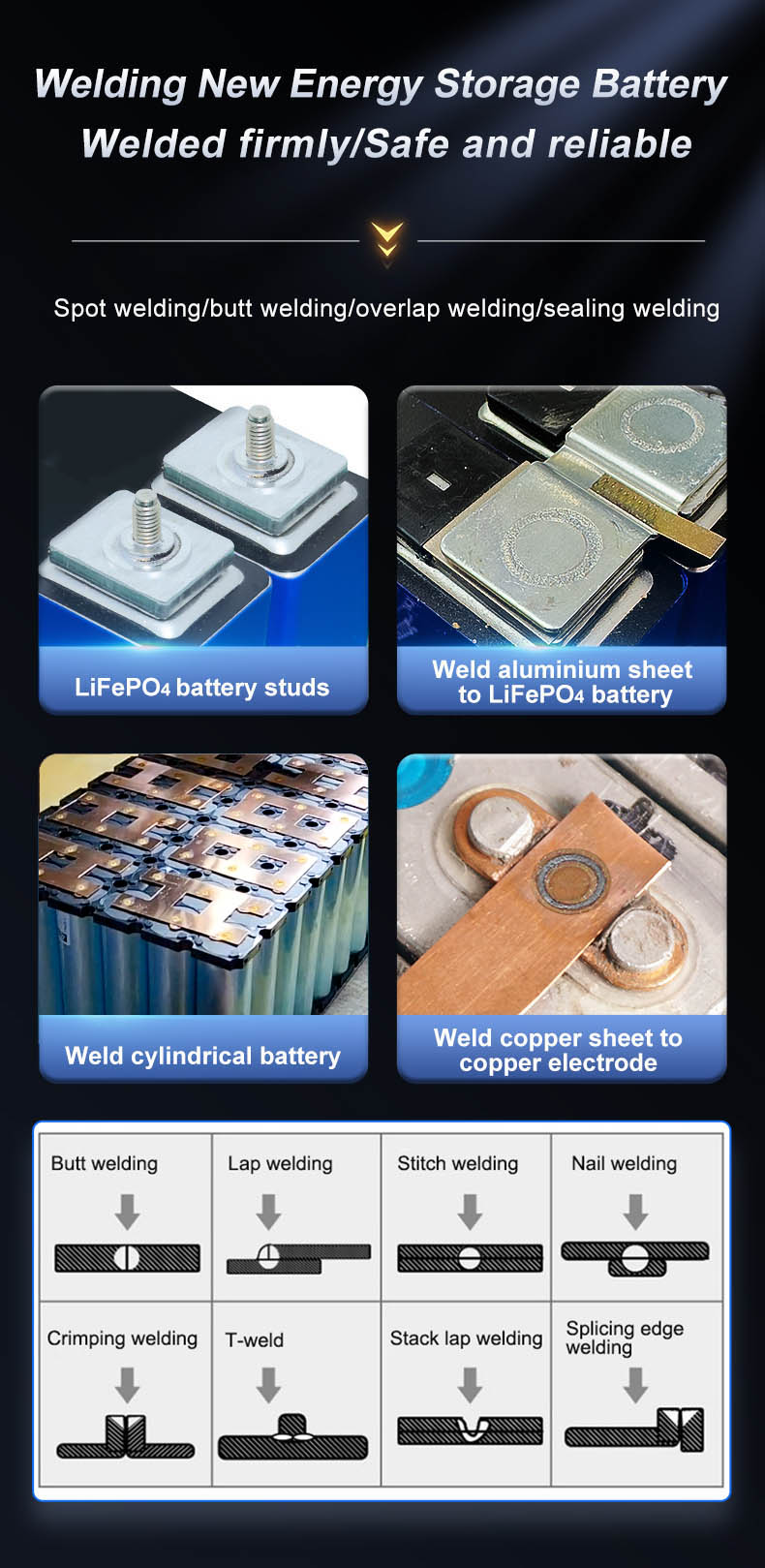

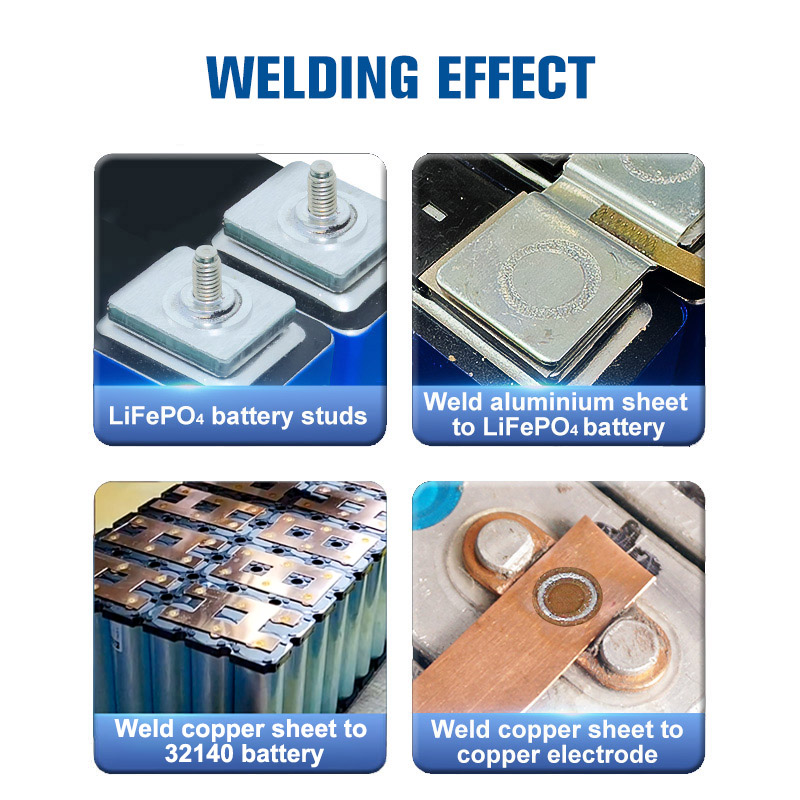

Welding effect of laser welder

welding materials of laser welder

Application of laser welding machine

Advantages of galvanometer laser welding machine

3 in 1 handheld laser welding

Water cooling system

welding materials of laser welding machine
