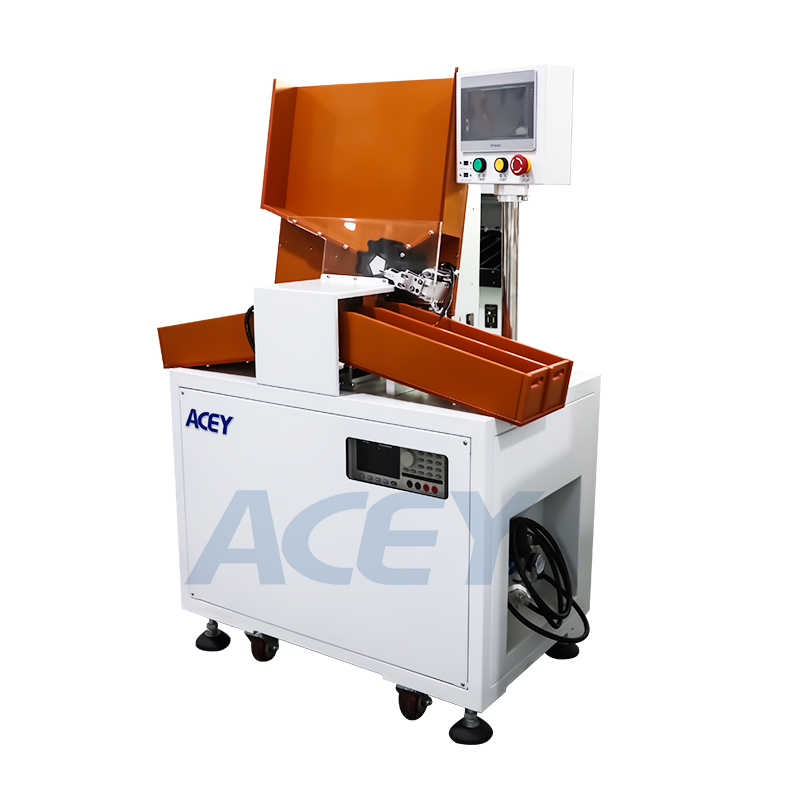

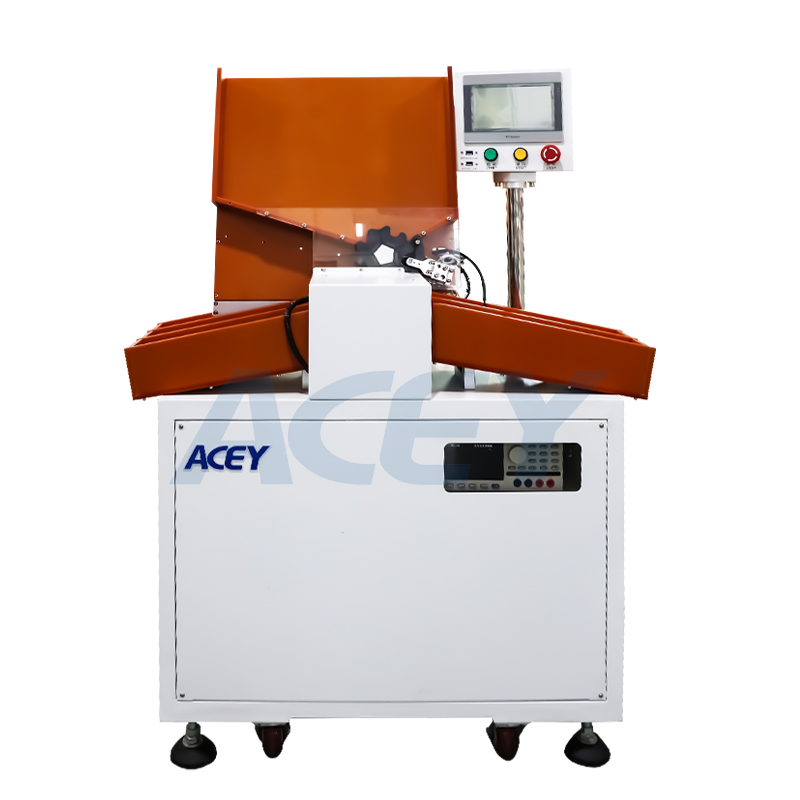

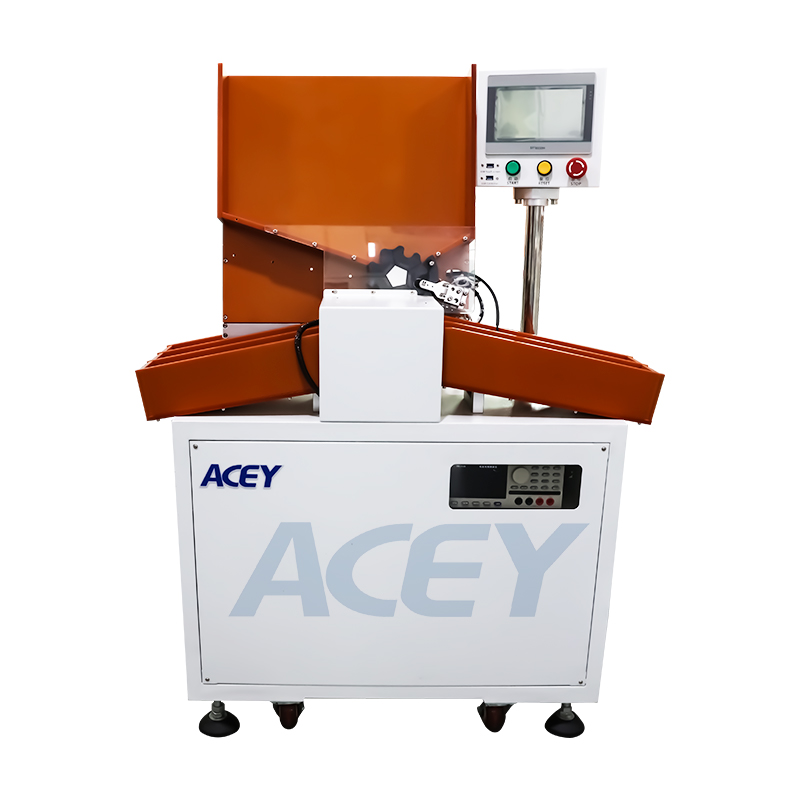

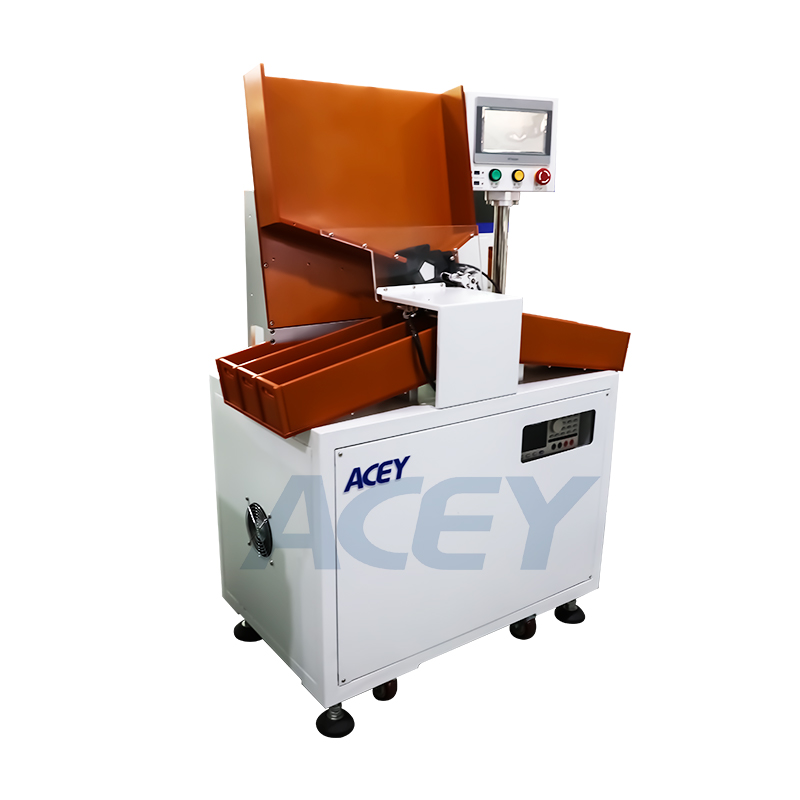

ACEY-AS5S lithium battery cell sorting machine is designed to measure and sort lithium batteries based on their open circuit voltage and alternating current internal resistance. By sorting batteries according to these parameters, manufacturers can ensure that batteries with similar characteristics are grouped together.
Brand:
ACEYItem No.:
ACEY-AS5SCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7days
18650 21700 26650 32700 Battery Sorter Lithium Cell IR Sorting Machine
Description
ACEY-AS5S lithium battery sorter is an efficient and automated sorting machine. It has the remarkable ability to sort the voltage and internal resistance of cylindrical batteries like 18650, 21700, 26650, 32650 and 32700. By automating this process, it effectively eliminates the unreliable factors of human misoperation and misclassification that could occur during traditional battery sorting. This not only enhances the quality of the sorted batteries but also significantly increases the efficiency of the sorting process. It is particularly well-suited for the automatic sorting of large and medium-sized cylindrical batteries, providing a reliable and efficient solution for battery manufacturers and recyclers.
Features
Specification
Model No. |
ACEY-AS5S |
Voltage Supply |
single-phase ~220V±10%/50Hz±10%, power <800W |
Battery Types |
18650, 21700, 26650, 32650, 32700 |
Receiving channel |
4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
Test parameters |
AC internal resistance, DC voltage |
Internal resistance test |
Test range: 80mΩ, |
Accuracy: ±0.5%rdg |
|
Display resolution: 0.01mΩ |
|
Voltage test |
Test range: 8V |
Accuracy :±0.015%rdg, |
|
Display resolution: 0.01mV |
|
Sorting speed |
80ppm |
AI.Set function |
Intelligent one-button setting, specially designed for new functions of battery pack. |
Size |
L960mm*W540mm*H1350mm |
Weight |
<150Kg |
Product Details
