18650 Battery Pack Comprehensive Tester

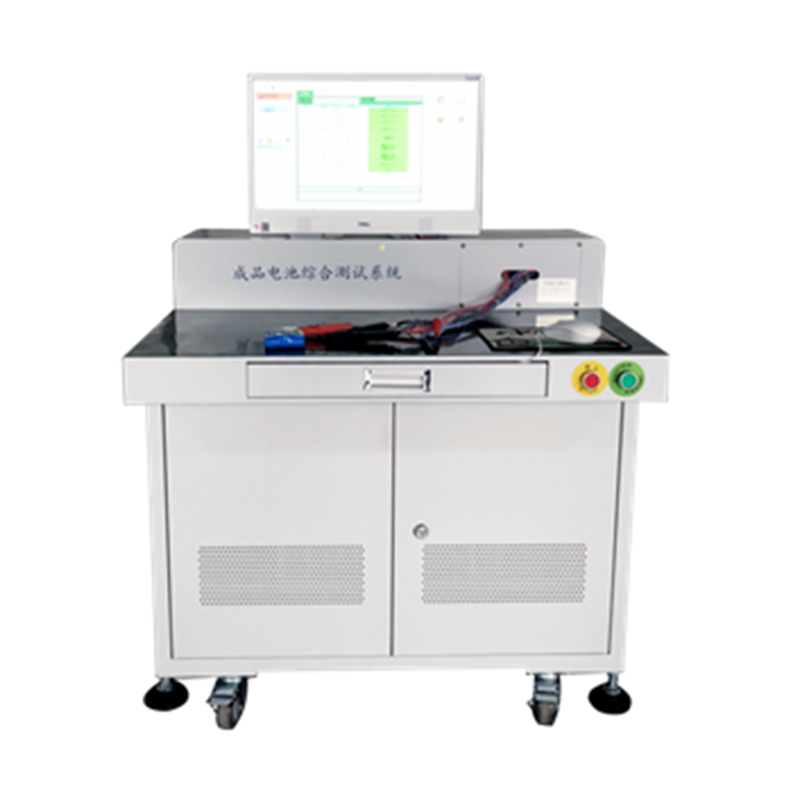

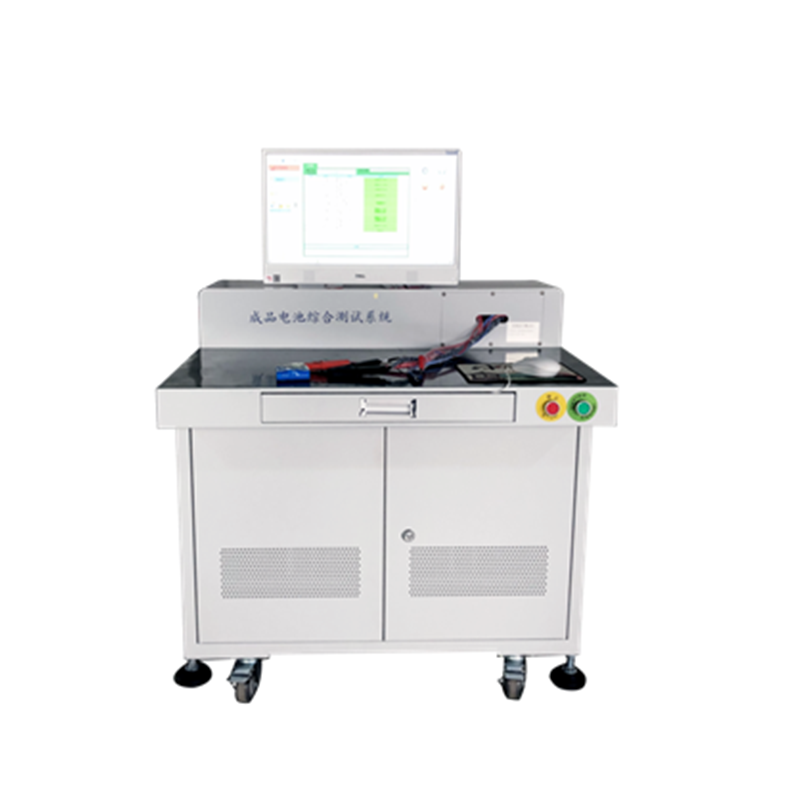

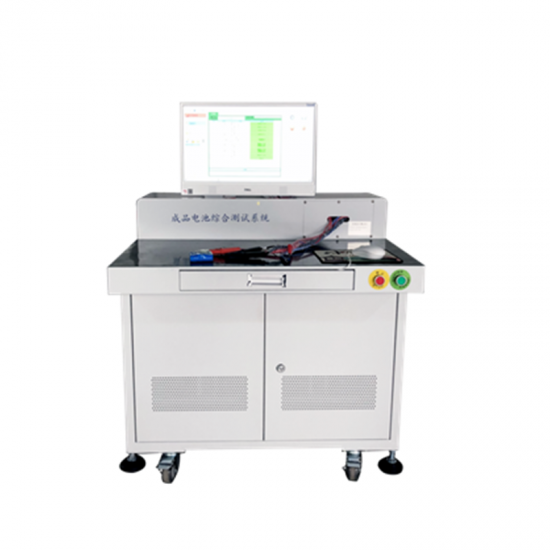

18650 Battery Pack Comprehensive Tester Multi Functional Tester Integrated Testing Machine

18650 Battery Pack Comprehensive Tester Multi Functional Tester Integrated Testing Machine

ACEY-BCT100 can make a quantitative and accurate measurement of some basic parameters of the battery.

  • Brand:

    ACEY

  • Item No.:

    ACEY-BCT100

  • Compliance:

    CE Certified

  • Warranty:

    One Year warranty with lifetime support

  • Order(Moq):

    1set

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Lead Time:

    7day
INQUIRE now
  • Product Detail


18650 Battery Pack Comprehensive Tester Multi Functional Tester Integrated Testing Machine

Description

ACEY-BCT100 can make a quantitative and accurate measurement of some basic parameters of the battery. It can measure the open circuit voltage, internal resistance, charge, discharge, overcurrent protection, short circuit protection and other functions of the battery. It can easily detect bad batteries and increased production efficiency.

Features

1. The continuous output power of the equipment is 2KW.

2. The continuous load power of the equipment is 12KW.

3. The maximum test voltage is 100V. (can be customized according to requirements)

4. Maximum charging current (20A), discharge current (120A). (can be customized according to requirements)

5. Programmable control of test items.

6. Friendly human-computer interface.

7. Support one upper computer software to control 8 devices.

8. The device supports serial port, network and upper computer communication.

9. Test records can be saved to database (SQL) or file (Excel).

10. Support the export and import function of test project.

11. The equipment supports the same port and split port batteries for charging and discharging.

Specification

Model No.
 ACEY-BCT100
Test open circuit voltage
 7.2V-85V
Peak current
 100A
Functions
 Try charging voltage test
Charging current test
Internal resistance test
Discharge current test
Load voltage test
Overcurrent current test
Overcurrent recovery voltage test
Set aside time
Setting of discharge time and current
Overcurrent protection delay time setting
Over current step current setting
Product Details
18650 Battery Pack Comprehensive Tester Multi Functional Tester Integrated Testing Machine
