This machine is used to weld batteries pack like 18650, 21700,26650, 32650,32700 etc cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
Brand:
ACEYItem No.:
ACEY-D1000Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setProduct Origin:
ChinaLead Time:

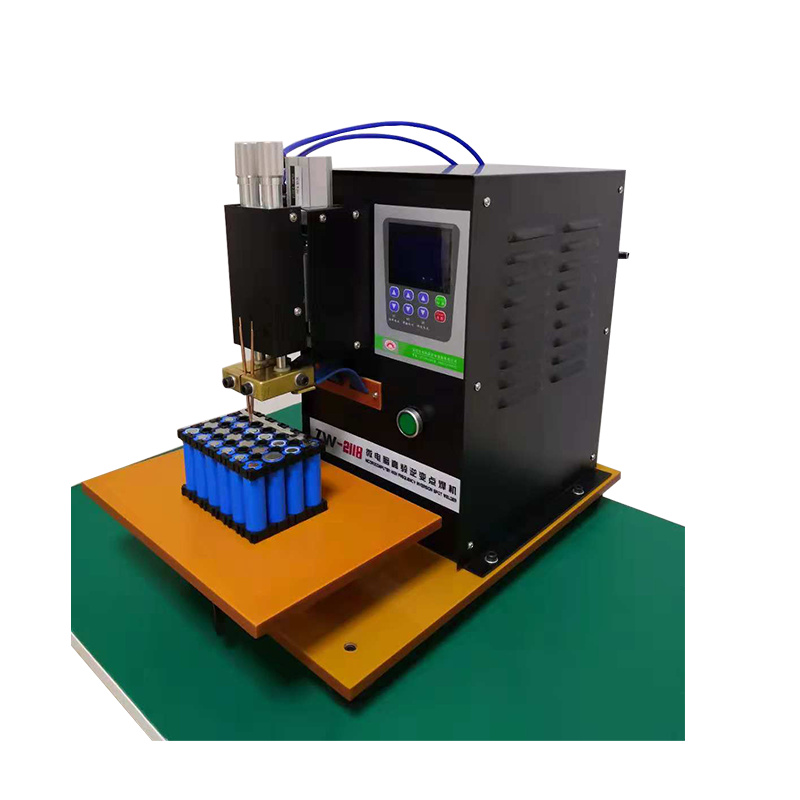

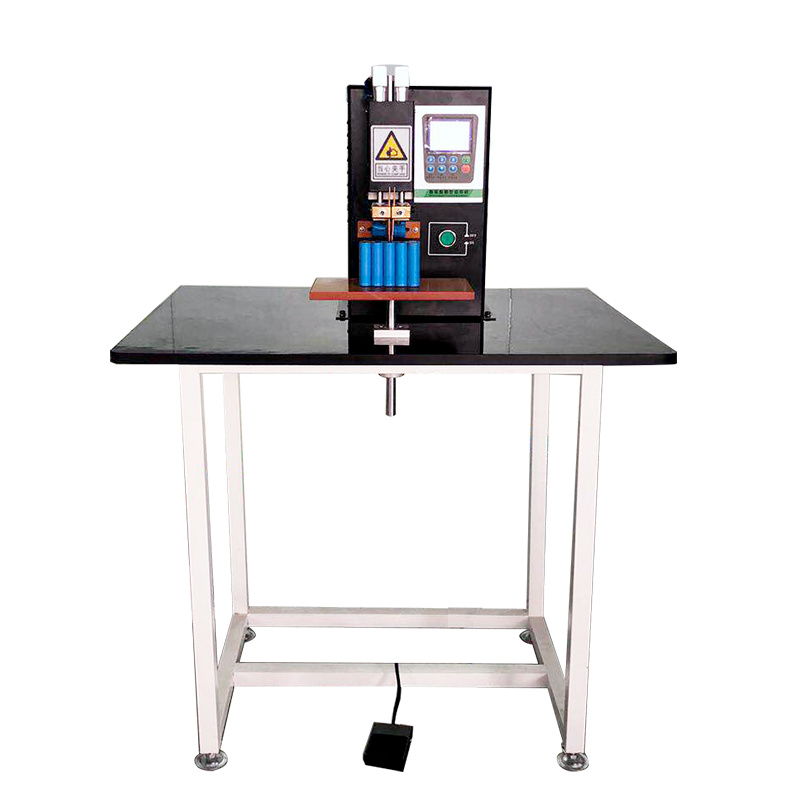

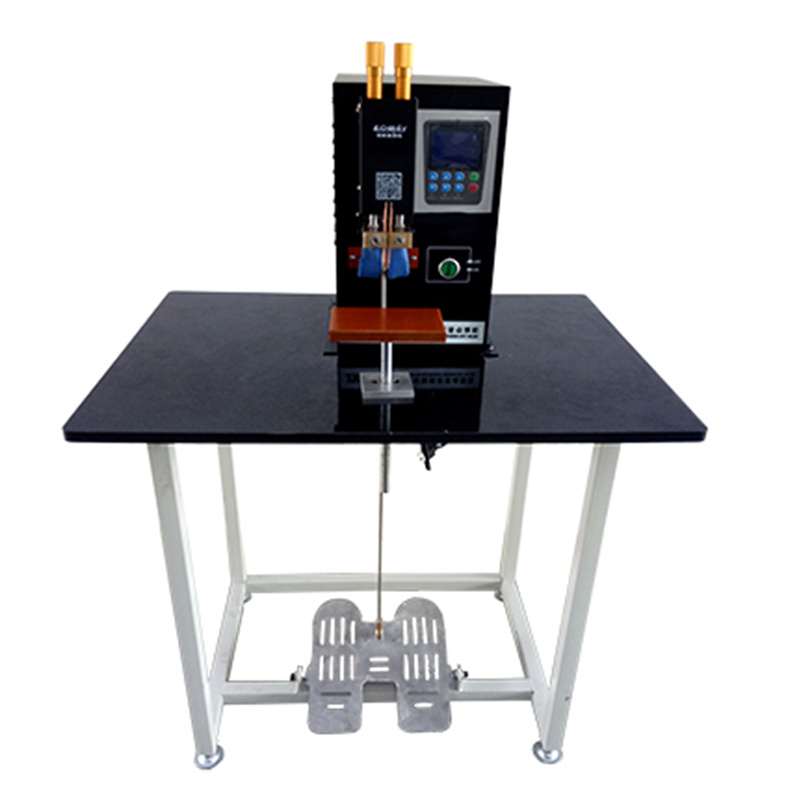

7days18650 Battery Pack Pneumatic Spot Welder Nickel Tabs Welding Machine
Description
This machine is used to weld batteries pack like 18650, 21700,26650, 32650,32700 etc cylindrical battery, NI-MH battery(nickel-metal hydride battery), Nickel cadmium battery and EV Lithium battery pack Ni tab welding.
Specification
Max output power of transformer
18 KVA
Output max short circuit current
5000A
Welding voltage
80.0V -- 330V adjustable, accuracy 0.5V
Welding time
1.0ms -- 20.0ms adjustable, accuracy: 0.1ms
Use
electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc
Applicable scope
Max thickness of parallel welding: 0.03mm~0.15mm
Machine weight
40kg
External dimension
L350mm*W180mm*H280mm
Input power
single-phase AC220V/50Hz
Max thickness of upper and lower butt welding: 0.1mm + 0.3mm
Lithium Battery Pack Single Side Automatic Spot Welder With Rotatable Welding Head
ACEY-S200C with welding head rotation function, is used for 18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding.
5000A Battery Pack Cylindrical Cell Gantry Spot Welder With Slide Rail
This machine can assembling batteries like 18650, 21700,26650, 32650... and Nickel or Nickel-Plated Steel strips.
Pneumatic Single Side Automatic Spot Welding Machine For Battery Pack Assembly
ACEY-S200A can be matched with the production line of lithium battery group,suitable for battery pack spot welding and assembly in the factory for 14500/18650/21700/26650/32650/32700 multi-parallel multi-series combination
Electric Single Side CNC Automatic Spot Welder For Battery Pack Assembly
ACEY-S200B is suitable for the processing of various and diversified battery packs like 18650,21700,26650,32650,32700,and can be equipped with 5000A/8000A/10000A AC, transistor or DC inverter power supply.
Double Sides CNC DC Inverter Automatic Spot Welding Machine
ACEY-D300C with Rotatable Welding Head can be equipped with 5000A/8000A/10000A AC, transistor or DC inverter power supply And is used for 18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding.The welding head adopts water-cooled circulating heat dissipation to effectively reduce the loss of welding needle and improve the welding effect.
Pneumatic Double Sides CNC Automatic Spot Welding Machine for Battery Pack
ACEY-D300A is equipped with 5000A/8000A/10000A AC, transistor or DC inverter power supply.It can weld pure nickel sheet less than 0.2mm and steel nickel sheet more than 0.3. Bump welding is required. Double sided automatic welding, high efficiency. Programming is simple.
Double Sides Cylindrical Battery Pack Automatic Spot Welder
ACEY-D300B support breakpoint start, automatic start, and manual start.And is used for18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding.The power supply can be equipped with 5000A or 8000A AC, transistor or DC inverter.The operation and debugging is very easy and convenient.
Double Sides Cnc Automatic Battery Spot Welding Machine
ACEY-D300 is used for 18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect and the highly automated human-machine interface makes it easy to operate.
