2L Vertical Grinding Planetary Ball Mill With 4 Jars

2L Vertical Grinding Planetary Ball Mill With 4 Jars

The laboratory planetary ball milling machine is Used for rapid batch study sample grinding to the colloidal fineness .

Brand:
ACEY
Item No.:
ACEY-VHBM-2L
Compliance:
CE Certified
Warranty:
One Year warranty with lifetime support
Order(Moq):
1set
Product Origin:
China
Lead Time:
7days

INQUIRE now

Product Catalog

New Products

Product Detail

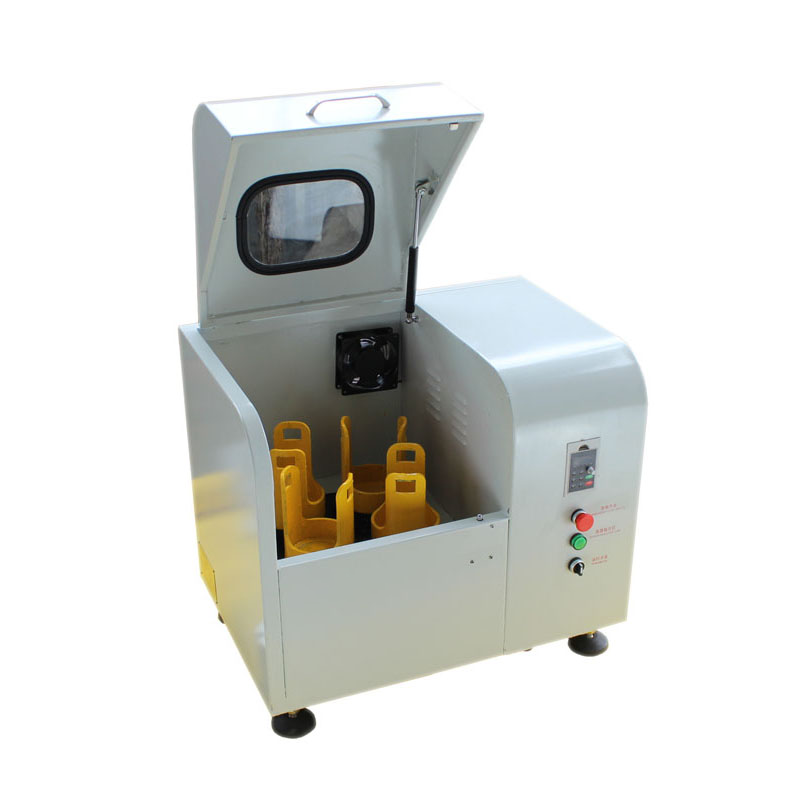

2L Vertical Grinding Planetary Ball Mill With 4 Jars

Description

ACEY-VHBM-2L has four ball grinding tanks installed on one disc. When the turn disc rotates, the mill pots revolve on their own axis and make 360 degree rotation. And the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods.

Features

1. multiple grinding modes to choose.

2. High Uniformity and excellent repeatability.

3. Fast rotational speed, high efficiency and fine granularity.

4. Four samples with different sizes and materials in one experiment.

5. Programmable interval and pause times.

6. Stepless speed regulation, reversing function.

7. Large range of materials available for grinding tools.

8. Gear-drive offers an effective solution to problems caused by belt driving.

9. Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small wear.

10. Cooling of the grinding chamber with a built-in fan for long grinding times.

Specification

Model No.	ACEY-VHBM-2L
Working Principle	impact and friction force
Compatible Grinding Jars	(250ml~1500ml) * 4
Max Feeding Capacity	1/3 capacity of the grinding jar
Operation Mode	2 or 4 grinding jars working simultaneously
Feeding Granularity	Soil materials < 10mm, others materials < 3mm
Discharging Granularity	down to 0.1μm
Sample Type	hard, medium-hard, soft, fibrous, brittle, moist
Rotational Speed of Grinding Jar	800rpm
Rotational Speed Ratio	1 : 2
Drive Mode	gear drive and belt drive
Speed Control	stepless speed regulation
Electrical Details	110V/220VAC, 50/60Hz, single phase, 0.75KW
Max Continuous Grinding Time	72hours (full-load)
Weight	140KG
Dimension (LWH)	720480630mm
Noise Level	< 70dB

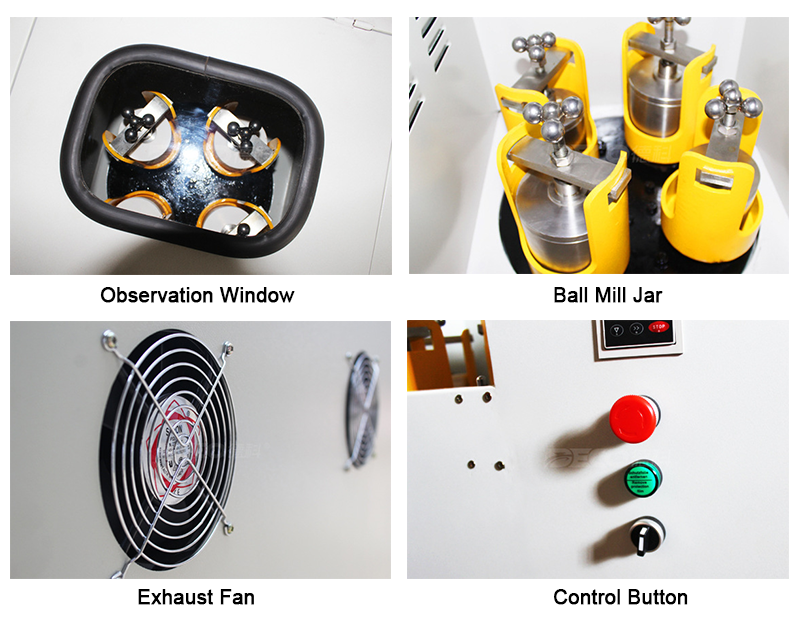

Product Details

Packing

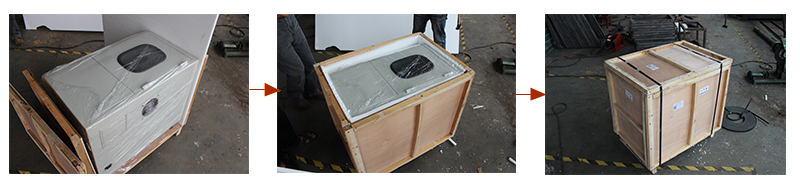

Packaging and packaging process of small ball mill machine
