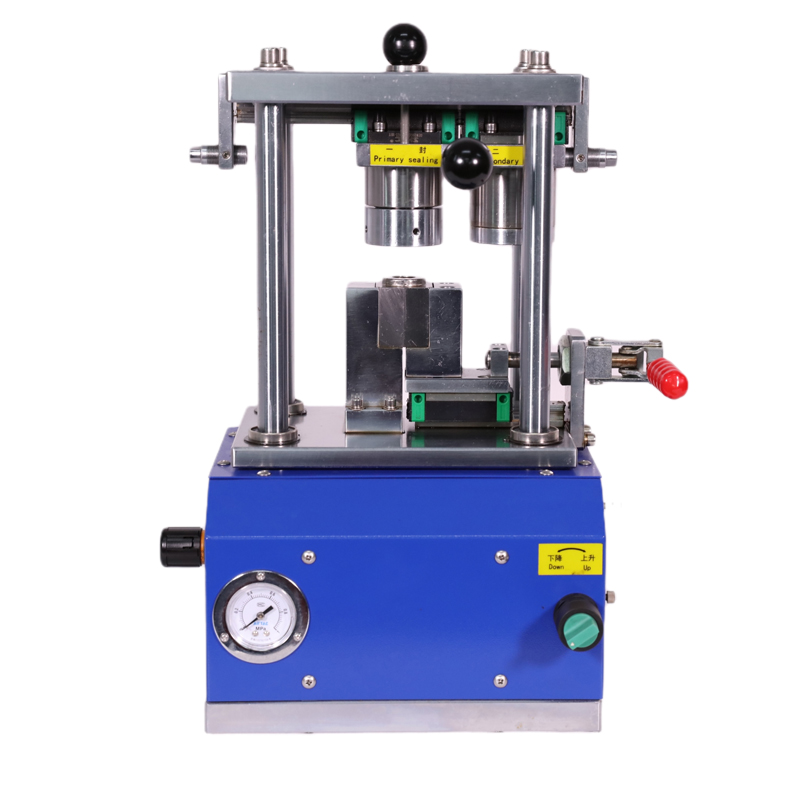

This is a cylinder drive mold for cylindrical battery seal, sealing pressure controlled by manual valve .
Brand:
ACEYItem No.:
ACEY-ACS-1Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:
7daysAutomatic Cylindrical Battery Sealing Machine For 18650 26650 32650
Description
It is mainly used in the sample production of laboratory battery material research and development for the scientific research sealing of cylindrical batteries and cylindrical capacitors, and can also be used for small batch trial production in factories. Pneumatic control is convenient and labor-saving.
Features
1. Pure pneumatic operation, no electricity, convenient and easy to use;

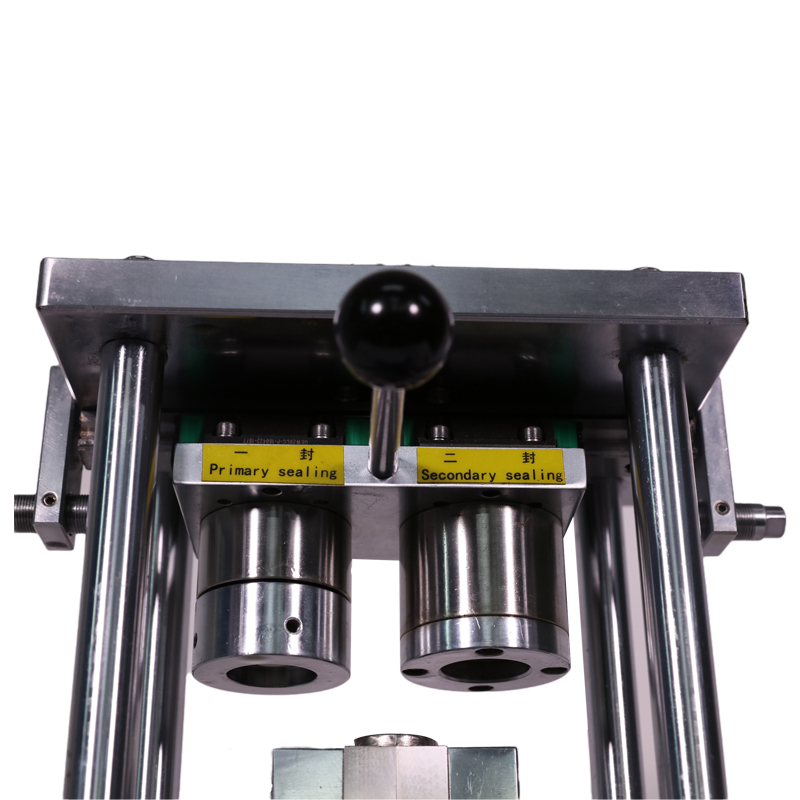

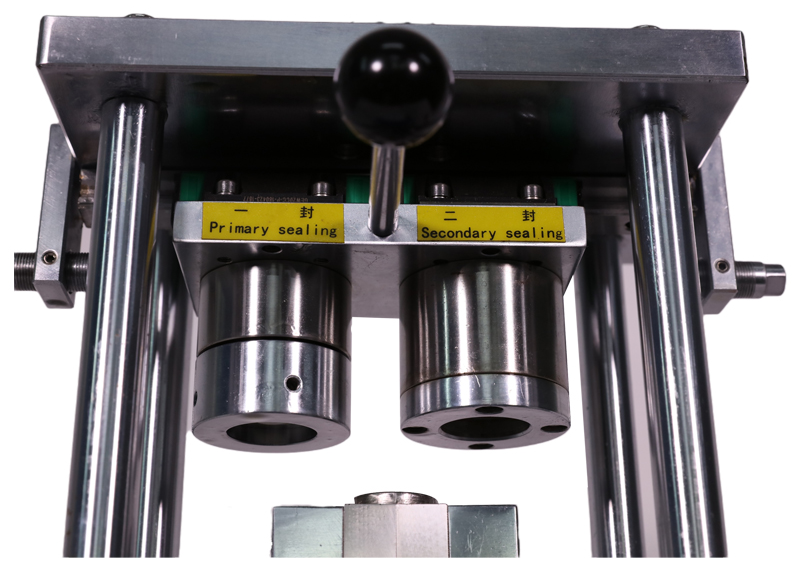

2. Two-station sealing, better sealing and sealing effect;
3. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
4. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
5. Compressed air or inert gas cylinders are used to supply air. The compressed air exhaust is connected to prevent damage to the glove box atmosphere.
6. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
Specification
|
Model NO. |
ACEY-ACS-1 |
|
Air source |
0.6～0.8MPa argon, nitrogen gas cylinder, or compressed air (compressed air is not recommended in the glove box) |
|
Exhaust design |
specially designed exhaust port, which can be connected externally through KF40 and other devices |
|
Air consumption |
about 480ml air consumption for a single seal |
|
Sealing pressure |
manual control valve control, maximum pressure 1MPa, recommended pressure 0.7MPa |
|
Sealing stroke |
30mm |
|
Sealing mold |
standard 18650 series packaging mold, optional or
additional specifications |
|
Installation size |
L290mm*W205mm*H330mm |
|
Approximate weight |
27Kg |
|
It has the function of preventing short circuit of
battery sealing. |
|
|
Structural material |
high-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment. |
