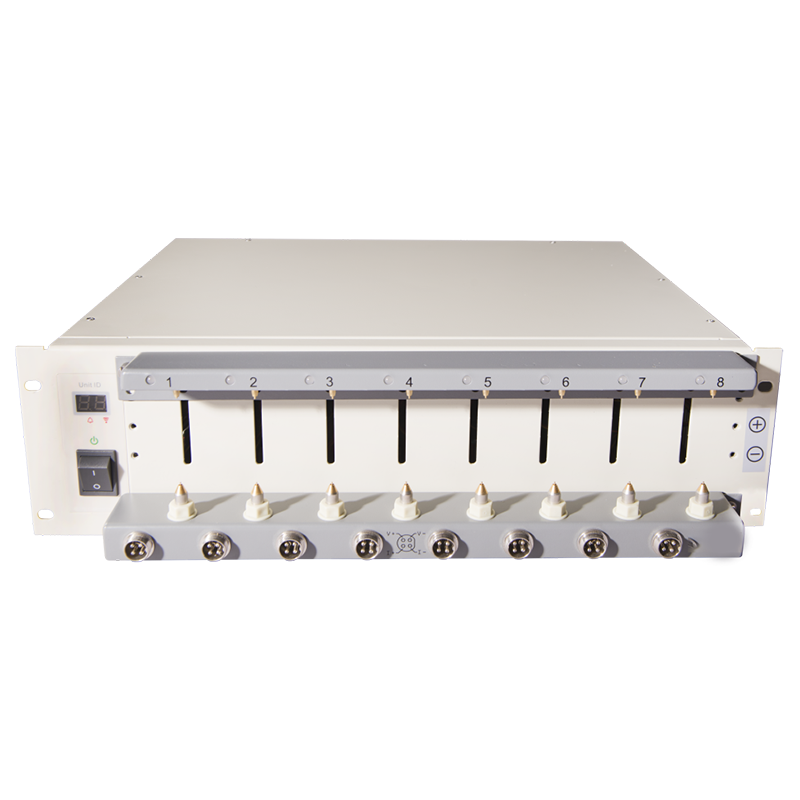

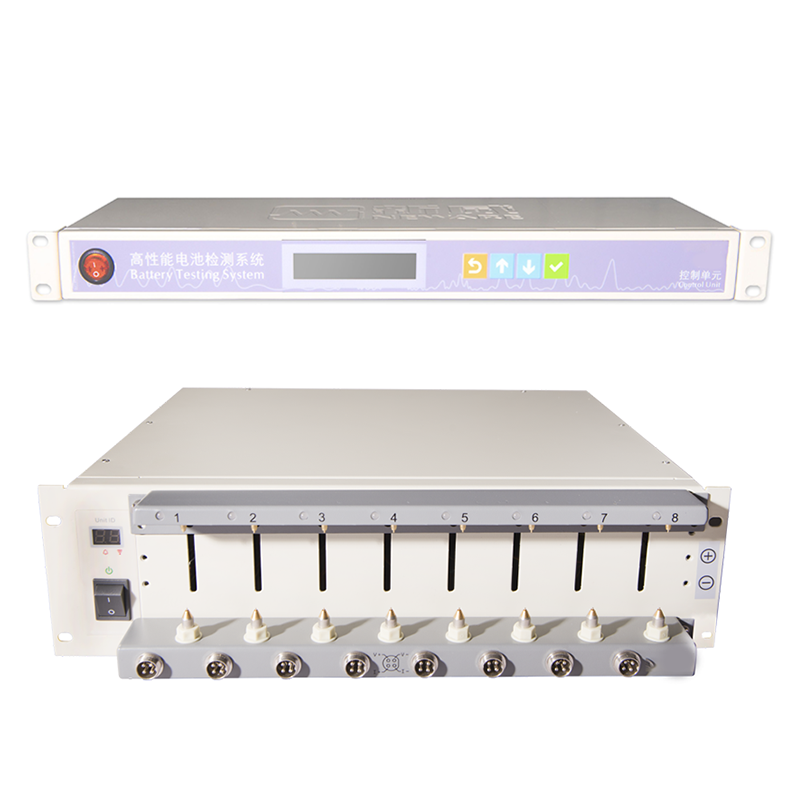

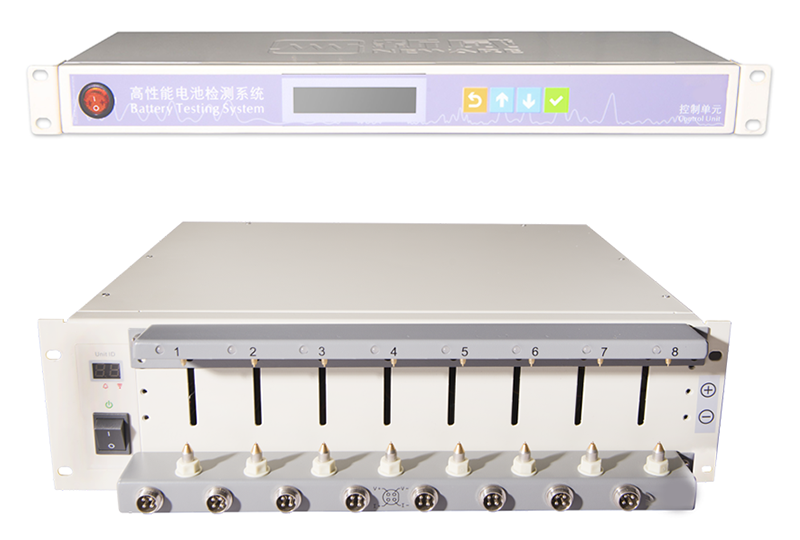

This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
Brand:
ACEYItem No.:
ACEY-BT-5V12ACompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7daysEight-Channel Battery Life Analyzer Capacity Testing Machine For Cylindrical & Pouch Cell
Description
This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.Specification
Product Name
Battery Testing Equipment 5V12A
Model No.
ACEY-BT-5V12A
Input power
AC 220V ±10% / 50Hz
Input active power
826W
Input Resistance
≥1MΩ
Resolution
AD：16bit；DA：16bit
Voltage
Per Channel Voltage Range
25mV~5V
Discharge Min Voltage
2V
Accuracy
± 0.05% of FS
Stability
± 0.05% of FS
Current
Per Channel Current Range
Accuracy
± 0.05% of FS
Constant Voltage Cut-off Current
0.2mA；6mA；12mA
Stability
± 0.05% of FS
Power
Per Channel Output Power
60W
Stability
±0.1% of FS
Time
Current Response Time
(0~Full Range)＜1ms
Step Time Range
≤（365*24）Hour/Step
Data Recording
Recording Condition
Record Frequency
10Hz
Charge
Charge Mode
Constant Current Charge、Constant Voltage Charge、Constant Current and Constant Voltage Charge、CPC
End Condition
Voltage、Current、Relative Time、Capacity、-△V
Discharge
Discharge Mode
CCD、CVD、CCVD、CPD、CRD
End Condition
Voltage、Current、Relative Time、Capacity
Pulse
Charge
CCC
Discharge
CCD
Min Pulse Width
500ms
Pulse Number
Each pulse step supports 32 different pulses
Automated Switch
Automated switch from charge to discharge for each pulse
End Condition
Voltage, Test Time
Cycle
Loop Measure Range
1~65535 times
Max Steps Per Loop
254
Nested Loop
Nested loop Function，Max Support 3 Layers
Protection
Software Protection
Power-down Data Protection
Off-line Testing Function
Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
Noise
<85dB
Channel Features
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode
Independent Control
Voltage and Current Testing Sample
4-wire connecting
Database
MySQL Database
A Means of Communication of Upper Machine
TCP/IP Protocol
Data Output
EXCEL、TXT、Graph
Communication Interface
Ethernet Port
Per Unit Main Channels No.
8
Working Temperature Range
0℃~40℃
Storage Temperature Range
-10℃~50℃
Working Environment Relative Humidity Range
30% ~ 80% RH
Storage Environment Relative Humidity Range
30% ~ 90% RH
Dimensions
3U2F，W*D*H：480*400*130（mm）
