Li Ion Battery Core Formation Machine For Pouch Cell

This equipment is mainly suitable for hot flat pressing and shaping after winding the electric core

  • Brand:

    ACEY
  • Item No.:

    ACEY-SM200
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Li Ion Battery Core Formation Machine For Pouch Cell

Description

ACEY-SM200 using the hot press shaping machine after battery Winding On the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries.

Features

*The temperature of the work surface can be adjusted by the temperature controller panel button;

*The pressure of the upper and lower working table can be adjusted by the pressure regulating valve;

*The work surface is made of high-quality materials, with good heat transfer effect;

*Use light curtain protection device, safe to use;

*This machine has a temperature abnormal alarm function;

*Heat pressing time, temperature and pressure can be adjusted;

*Electric control can be used for automatic operation during operation, and manual function can be used during debugging;

Specification

Power supply

AC220V/50Hz;

Power

1.5 KW;

Air source

0.5Mpa0.8Mpa

Hot pressing area

200mmx200mm

Pressure

1T pressure adjustable;

Temperature control accuracy

±2℃;

Heating temperature

adjustable from room temperature to 250℃;

The plane parallelism of two pressure plates

within 0.05

Equipment weight

about 80Kg

Dimensions

L350xW320xH550mm

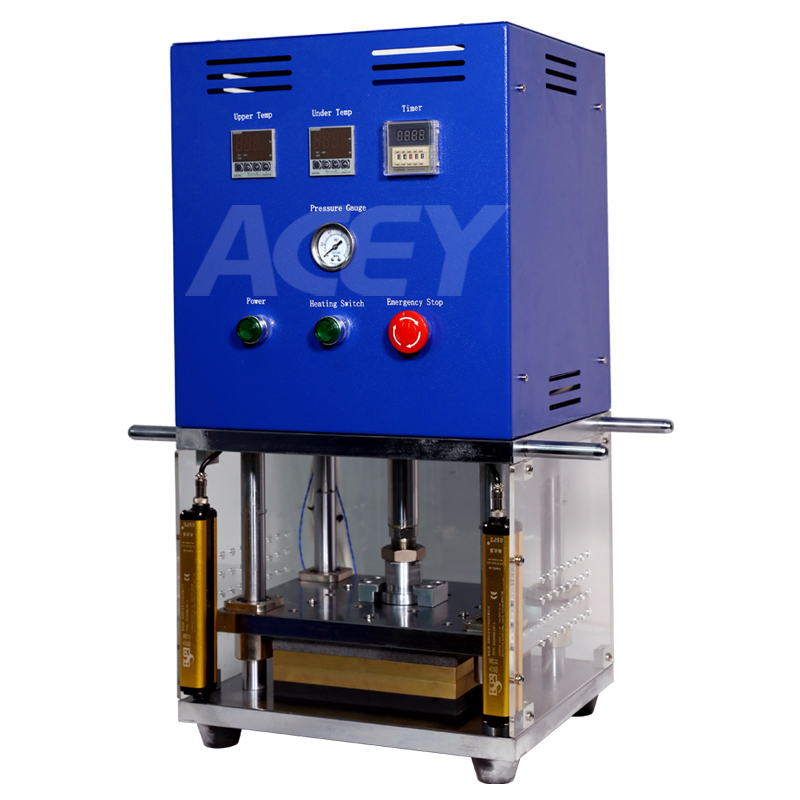

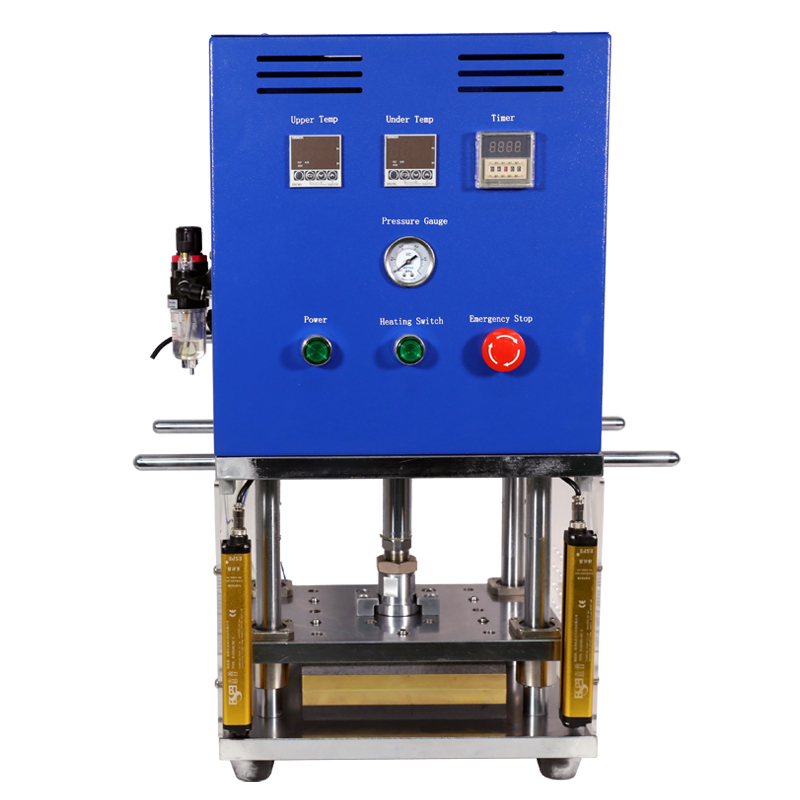

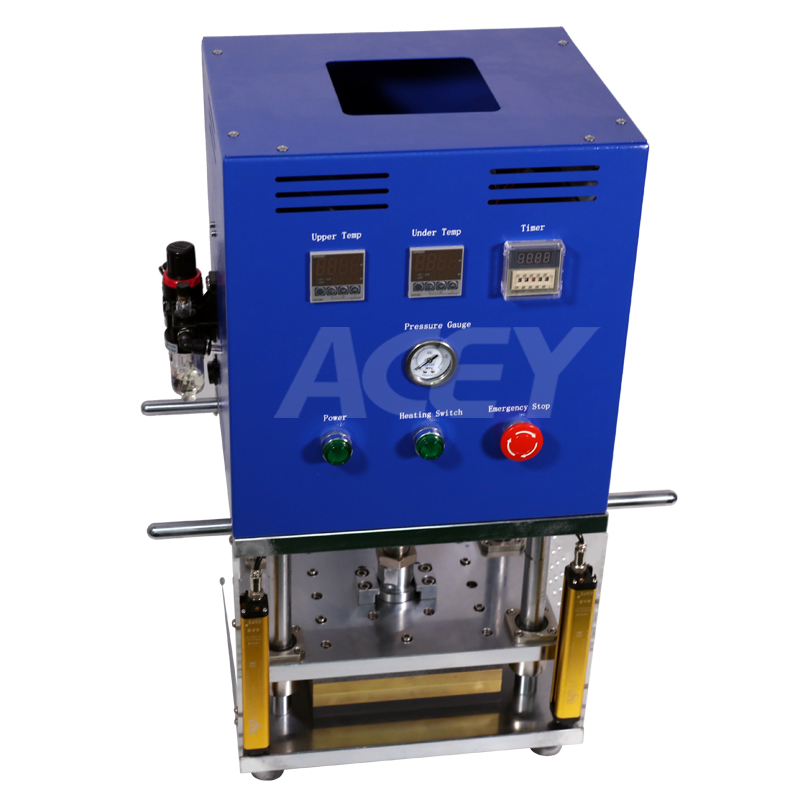

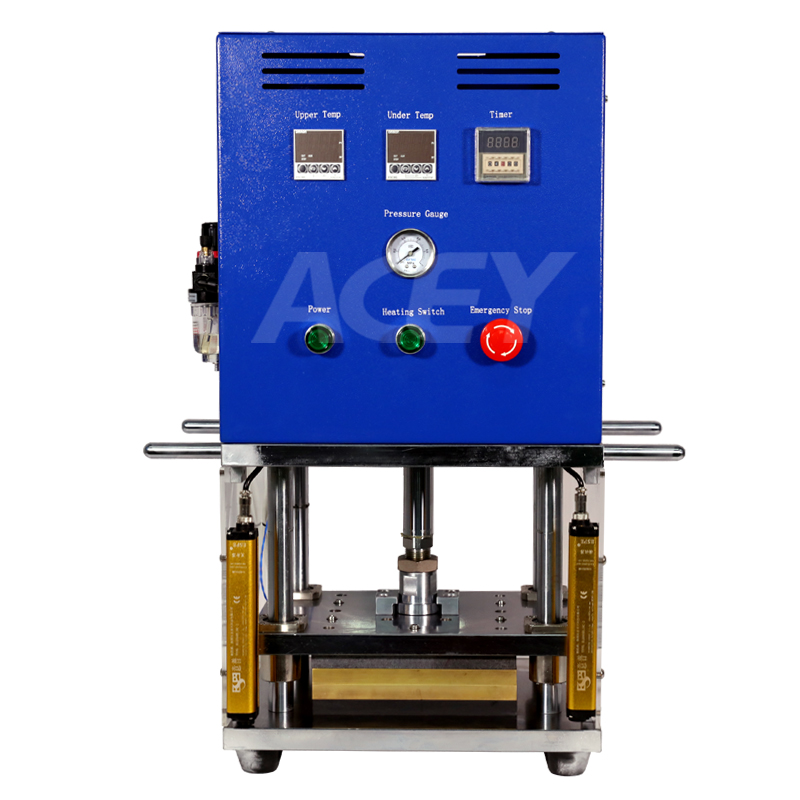

Product Display

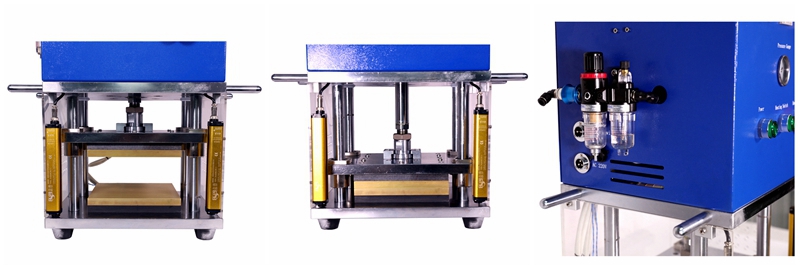

Details

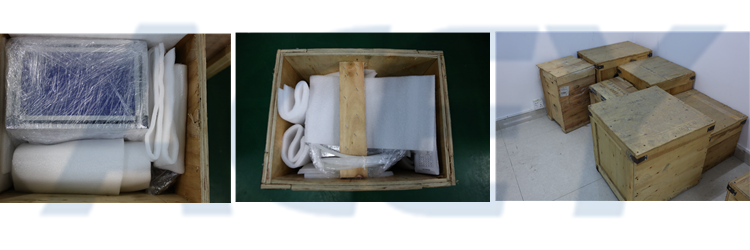

Packing


One-stop Solution

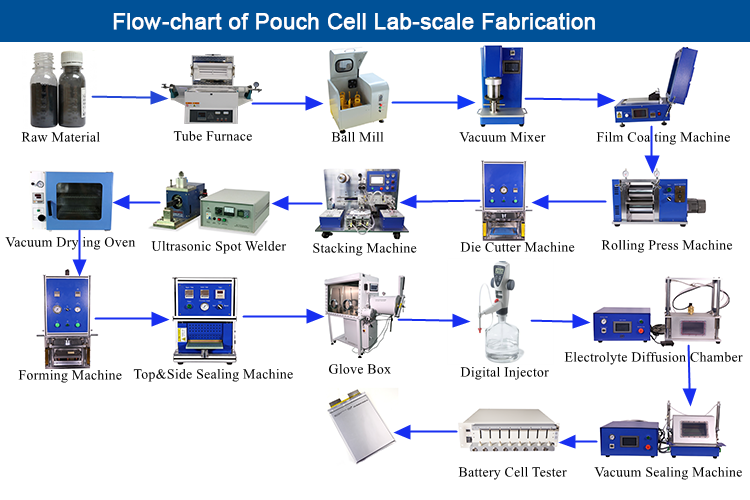

Flow-chart of Pouch Cell Lab-scale Fabrication
