Lithium ion Battery Voltage Active Equalizer with Light for Storage Battery Packs

Lithium ion Battery Voltage Active Equalizer with Light for Storage Battery Packs

Lithium ion Battery Voltage Active Equalizer with Led Indicator for Storage Battery Packs

Brand:
ACEY
Item No.:
ACEY-Lithium
Compliance:
CE Certified
Warranty:
One Year warranty with lifetime support
Order(Moq):
Payment:
T/T
Product Origin:
China
Lead Time:
7days

INQUIRE now

Product Catalog

New Products

Product Detail

Lithium ion Battery Voltage Active Equalizer with Light for Storage Battery Packs

Product Overview:

ACEY-BBM is a high-efficiency and high-precision bi-directional energy transfer system that prevents and corrects battery overcharge, undercharge, and overdischarge in a timely manner by finely managing the voltage of each battery in the battery pack at all times, thus extending the battery pack life.

ACEY-BBM wiring is simple, just connect the BBM to the positive and negative battery terminals correctly, and then connect all the BBM equalization terminals in parallel.

Installation diagram

Application

This specification is applicable to single 12V lead-acid battery, lead-acid battery pack, unitized lithium battery pack 3S/unitized lithium battery pack 4S, battery capacity range: 10AH-500AH

Lead-acid battery active battery equalization module parameters	Specifications:	ACEY-BBM-Lithium Battery Balancer
	Voltage range:	2V-5V
	Equilibrium current:	Peak current 10A long-term working current 6A
	Equalization accuracy:	Battery pressure difference after equalization <10mv
	Work efficiency:	When equalizing current 1A> 96%
	Equilibrium loss:	Equalized current <10mA
	Power consumption:	30mw
	Size:	74mm × 37mm × 21.6mm
	Size of battery connection line and equalization line:	Red and black line: RV1.25-10 terminal line 1.0 square national marking line, L = 250mm Equalization line: 620006-2P transfer 610008-2P, 1.0 square national marking line, L = 235mm
Characteristics of Lead Acid Battery Active Equalization Module	How to work:	The lithium electronic battery active equalization module transfers the power of the high-voltage battery to the bottom voltage battery in the way of energy transfer. The power transfer is carried out in two directions in parallel, even if the power of any high-voltage battery can be transferred to any low-voltage battery in parallel at the same time, Infinite cascade, infinite expansion, so as to achieve battery voltage balance,.
	Pressure range:	DC≥1000V
	Insulation resistance:	≥1000 MΩ
	Working environment:	Both indoor and outdoor can be used
	Use ambient temperature:	-10 ℃ ~ 70 ℃
	Storage ambient temperature:	-40 ℃ ~ 70 ℃
	Environmental relative humidity:	45% ~ 90%
	Cooling method	Natural cooling

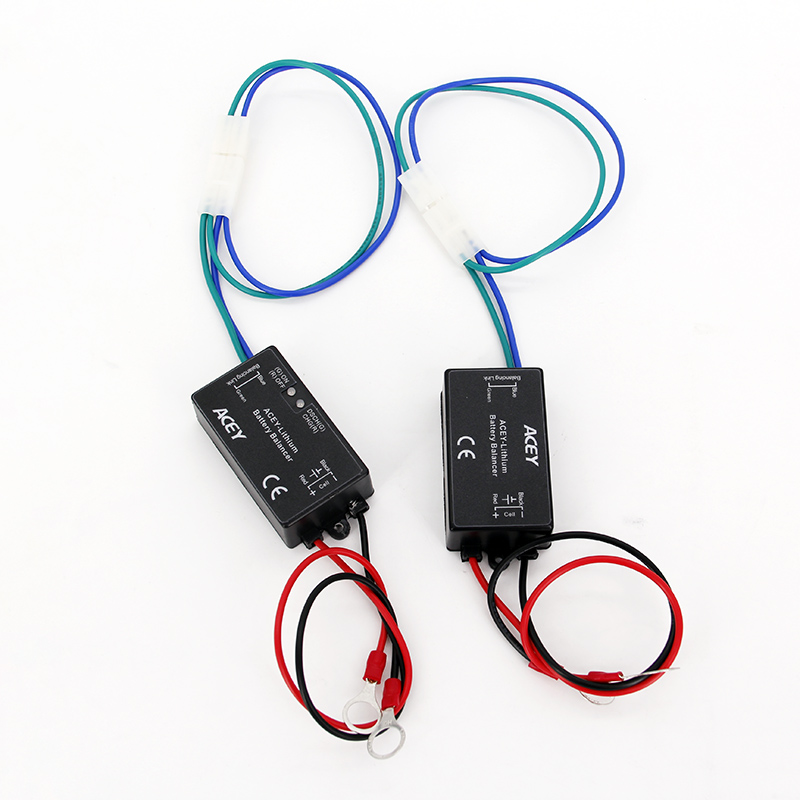

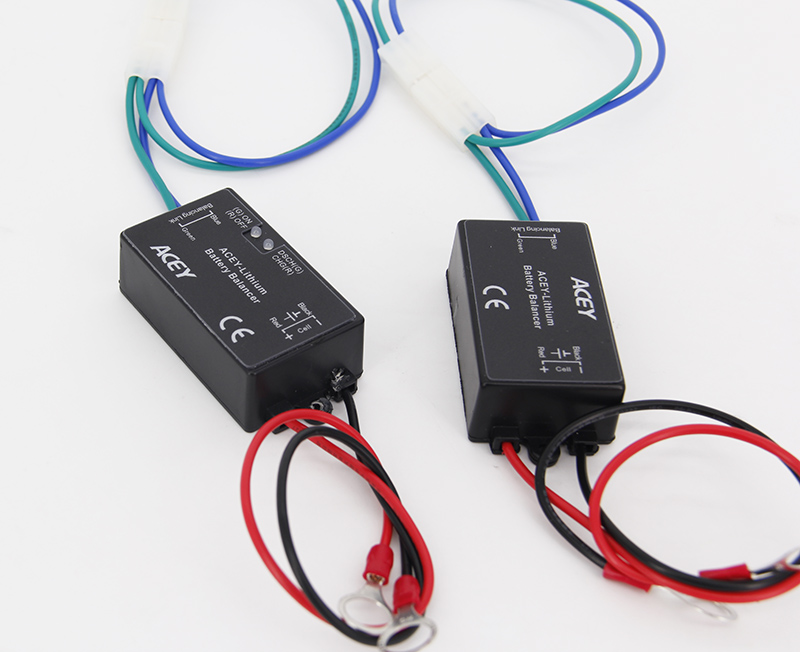

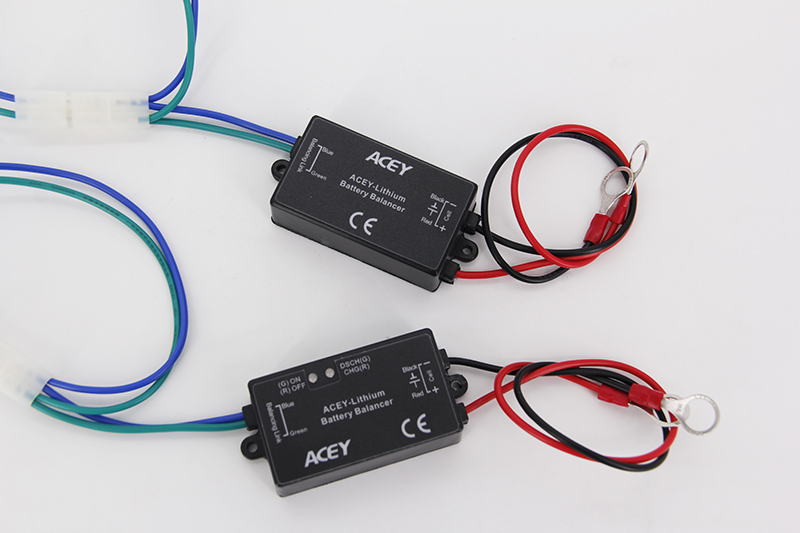

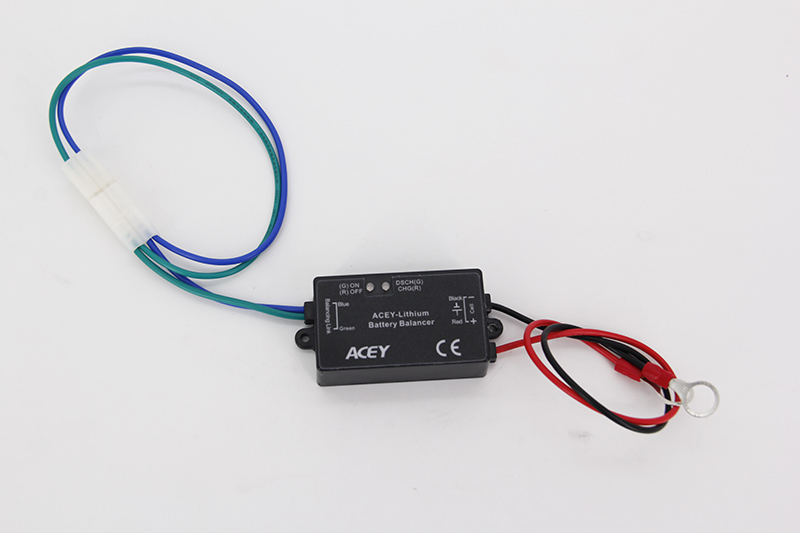

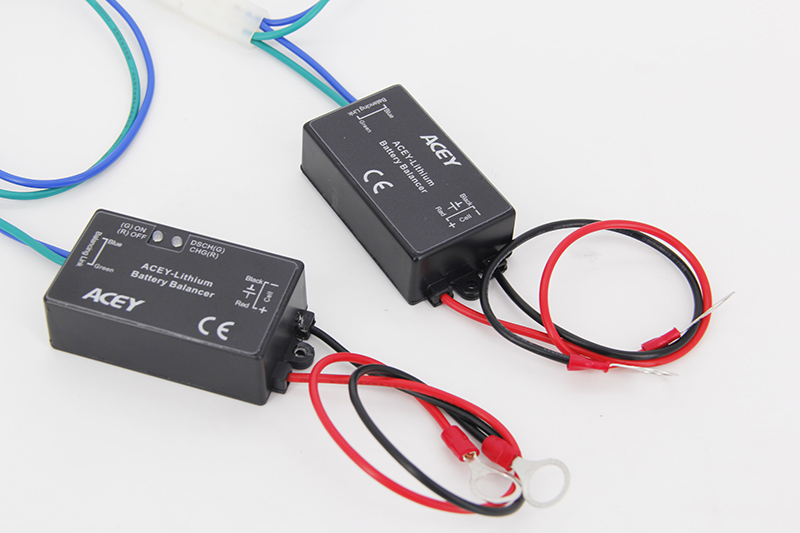

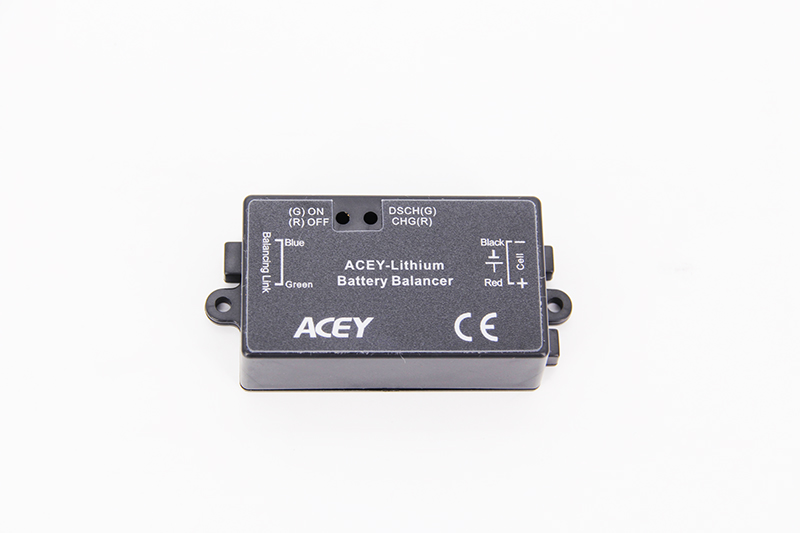

Product Display

Lithium Battery Balancer
