Xiamen Acey New Energy Technology Co.,Ltd
Lithium battery equalizer is a device used to balance the charging and discharging states of lithium batteries. Widely used in electric vehicles, energy storage systems, and other fields that use lithium battery packs.
Brand:
ACEYItem No.:
ACEY-BBT100-24S-10ACompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:

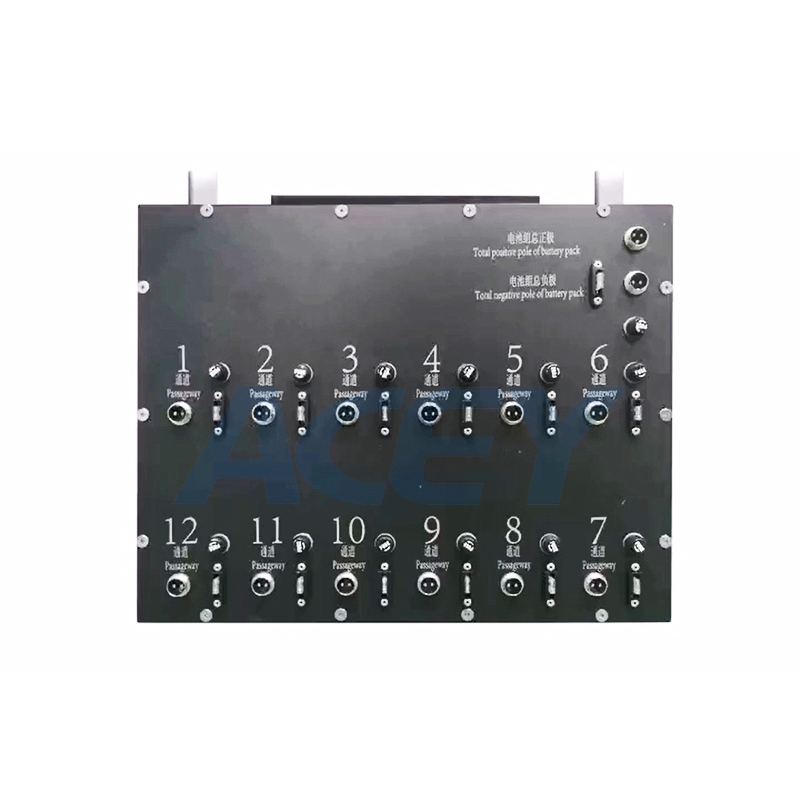

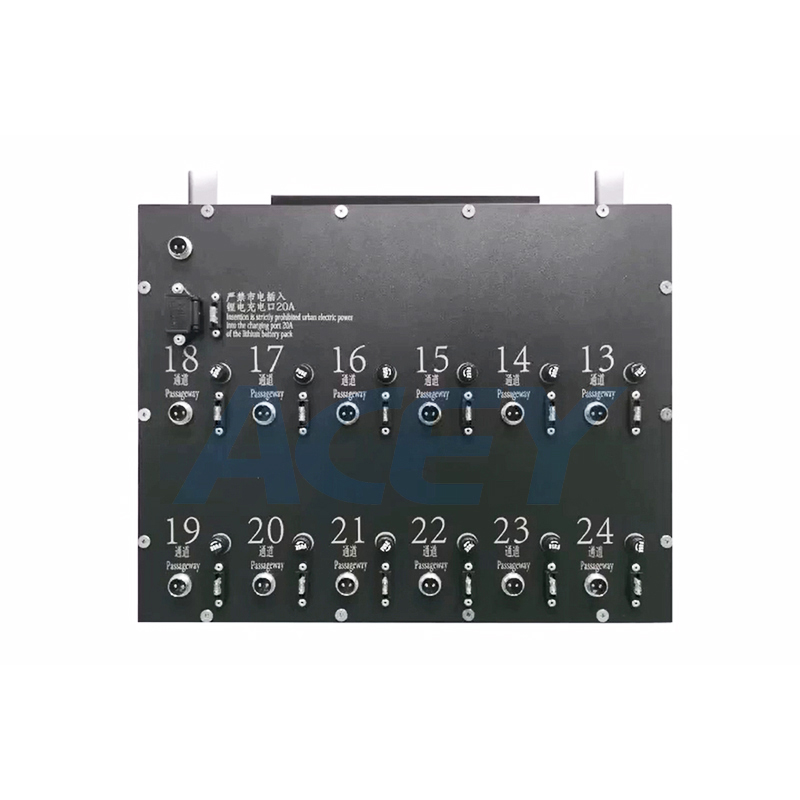

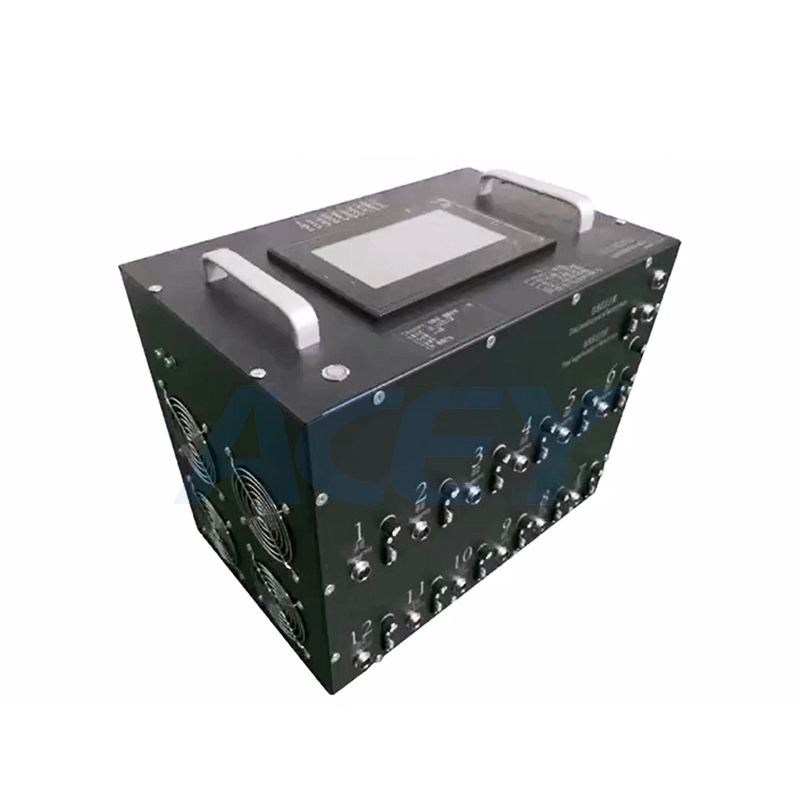

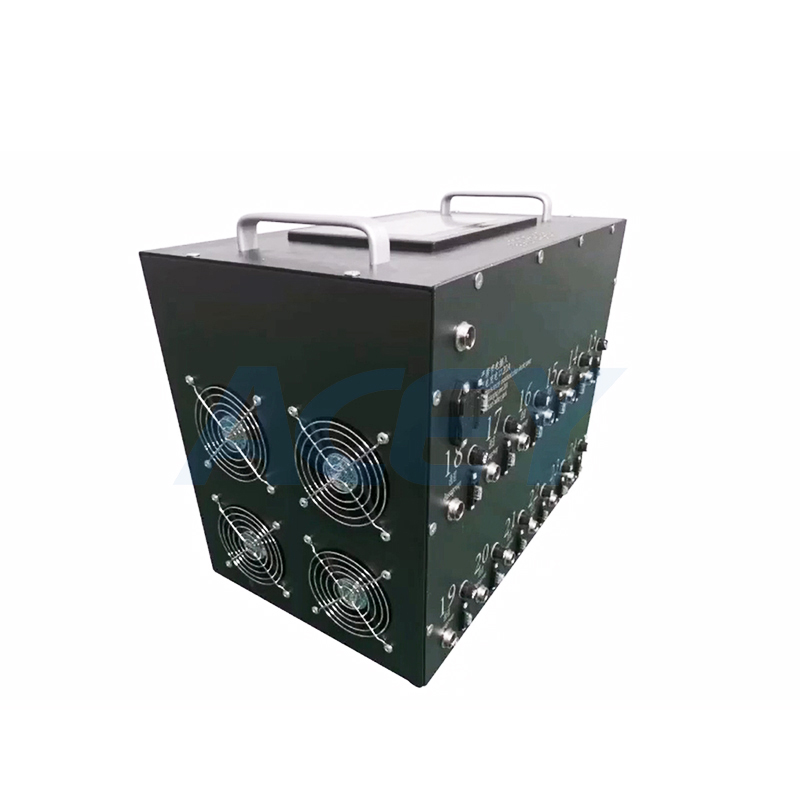

7days1-24S 10A Portable Lifepo4 Lithium Battery Automatic Balancer Equalizer
Introduction
ACEY-BBT100-24S-10A lithium battery equalizer is widely used for the maintenance of lithium battery packs in new energy vehicles. It can solve the problem of inconsistent battery cells after connecting power batteries in series, leading to further expansion of battery cell unevenness, shortened battery life, shortened range, and even battery failure.
Specification
| Equipment name | 24S Automatic Lithium Battery Equalizer |
| Model | ACEY-BBT100-24S-10A |
| Support charge and discharge current | Charging and discharging port support 20A+50A |
| Display function and touch control | Display all cell voltages and touch control |
| Number of battery strings supported | 1~24S |
| Support balanced current | 1 ~ 10 A adjustable |
| Battery types supported | NMC battery, LifePo4 battery |
| Function | Support multi machine series use |
| Temperature protection function | The product reaches the internal 50 degree temperature automatic control function |
| Differential pressure accuracy | 0.000V Differential pressure control |
| Equipment operating voltage | DC12V |
| Protection method | The machine is equipped with instantaneous wrong connection protection, super series connection and reverse connection protection |
| Protective measures | Fuse and built-in self-developed protection module |
| Constant pressure equalization function | Support constant pressure equalization function, maximum pressure difference accuracy 0.000 control |
4S 12V Active Lifepo4 Lithium Battery Charge Balancer
ACEY-BBM is a bi-directional energy transfer system that works with high-frequency pulses to prevent and correct battery overcharge, undercharge, and overdischarge in a timely manner by finely managing the voltage of each battery in the battery pack at all times, thus extending the battery pack life.
5S Diy Active Li Ion Battery Charger Lipo Balancer equalizer
ACEY-BBM is a high precision, high efficiency, high power, low loss equalization module, always maintain the battery, online activation of the battery, so that the battery performance is more stable and reliable
6S Lithium Ion Battery Active Balancer Circuit For Storage Battery Packs
ACEY Battery balancer can keep the voltage difference of each cell within 10mv.Extend the battery span life 2-3times.Without capacity & voltage & battery type limitation .
7S 24V Battery Cell Voltage Balancer For Lifepo4 LTO NCM 18650 Pack
ACEY-BBM wiring is simple and convenient. When there is voltage inconsistency in the battery pack, the active equalization module immediately actively equalizes the battery by energy transfer, and the battery power flows dynamically in each single cell to achieve battery voltage equalization and power sharing.
8S 24V Lithium Solar Battery Balancer Module Active Battery Equalizer
ACEY active battery balancing module group is applicable to lithium ion batteries, lithium battery packs, electric vehicles, energy storage systems, communication base stations.
2V Lead Acid Lto Battery Active Cell Balancer Equalizer
ACEY-BBM is a high-efficiency and high-precision bi-directional energy transfer system that prevents and corrects battery overcharge, undercharge, and overdischarge in a timely manner by finely managing the voltage of each battery in the battery pack at all times, thus extending the battery pack life.
2V Lead Acid Battery Active Balancer Circuit With Led Indicator
The lead-acid battery active equalization module transfers the power from the high-voltage battery to the low-voltage battery by energy transfer, and the power transfer is carried out in parallel in both directions, even if the power of any high-voltage battery can be transferred to any low-voltage battery at the same time in parallel, which can be infinitely cascaded and infinitely expanded to achieve battery voltage balance.
6V Lead Acid Battery Active Cell Balancer Equaliser With Led Indicator
6V Lead acid battery balancer for supercapacitor, lead-acid battery pack
