Lithium battery balancer is used to solve the problem of uneven battery capacity caused by the inconsistency of each individual battery after the power battery is connected in series, leading to shortened battery life, reduced cruising range, and even complete battery failure..
Brand:
ACEYItem No.:
ACEY-BBT100-24S-20ACompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:

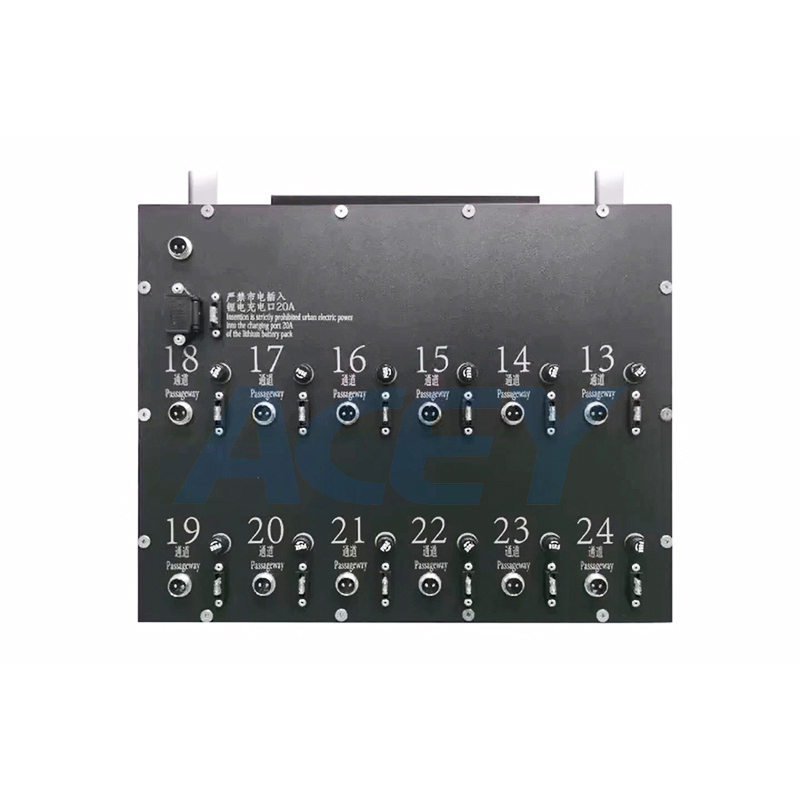

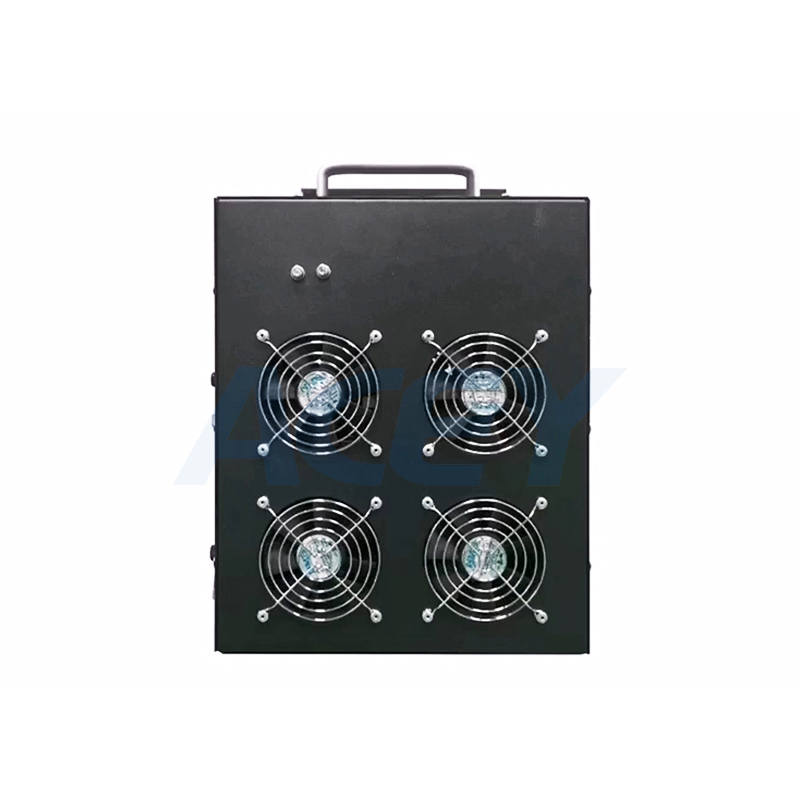

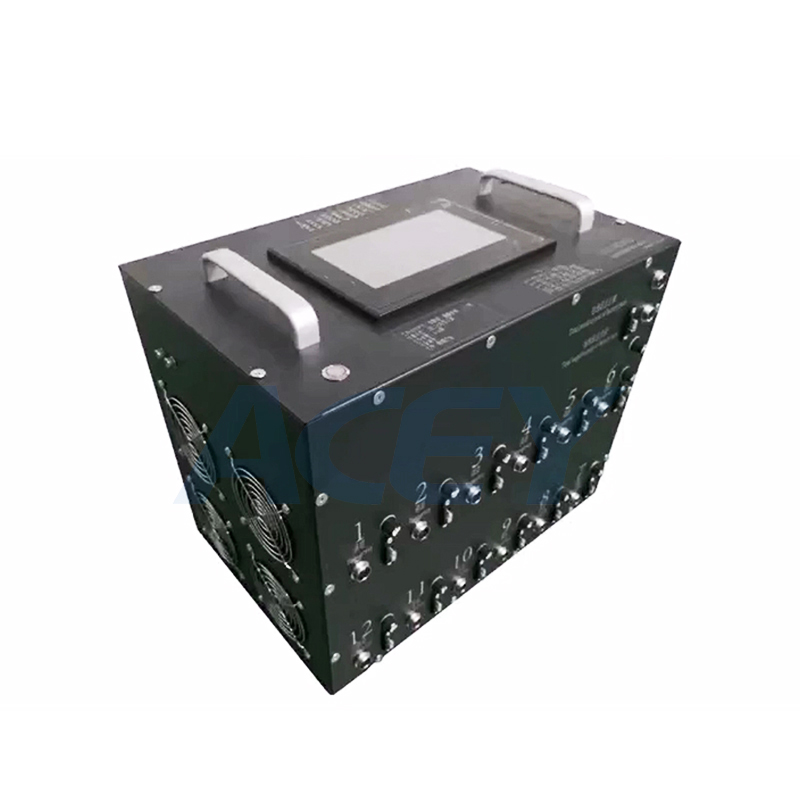

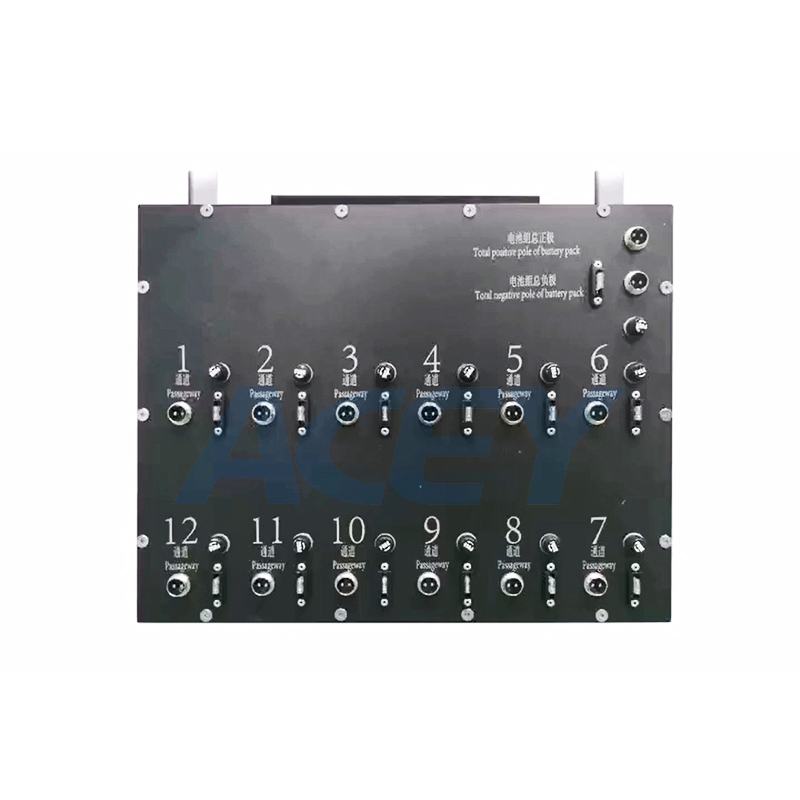

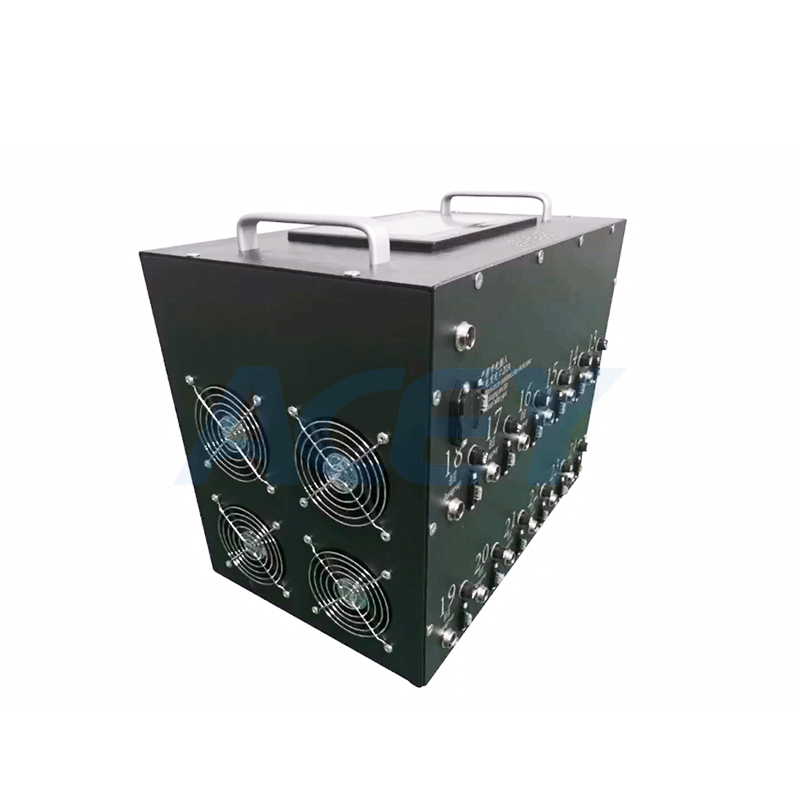

7days1-24S 20A Lifepo4 Battery Voltage Balancer Automatic Lithium Battery Equalizer
Introduction

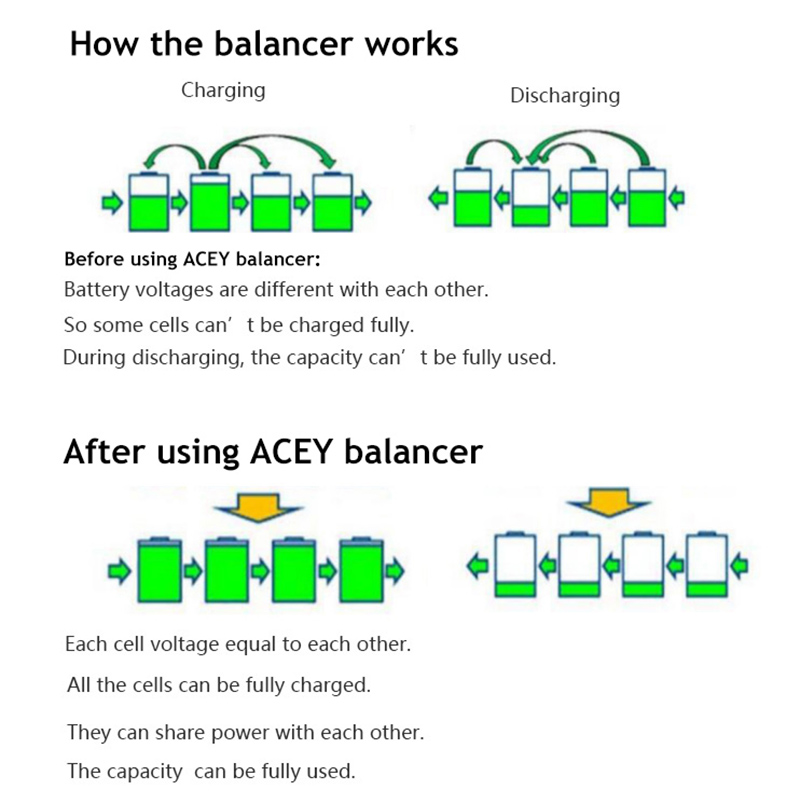

ACEY-BBT100-24S-20A lithium battery equalizer collects individual battery parameters and uses intelligent algorithms to accurately recharge outdated batteries, ensuring that each string of individual batteries is fully charged and maintaining the power difference between each individual battery in the pack to the factory level. Thus eliminating the short board effect of the battery pack and restoring the overall capacity of the battery pack to near the factory level.
Specification
Device name
24s automatic lithium battery equalizer
Device model
ACEY-BBT100-24S-20A
Support charge and discharge current
The charging and discharging port supports 20A+50A

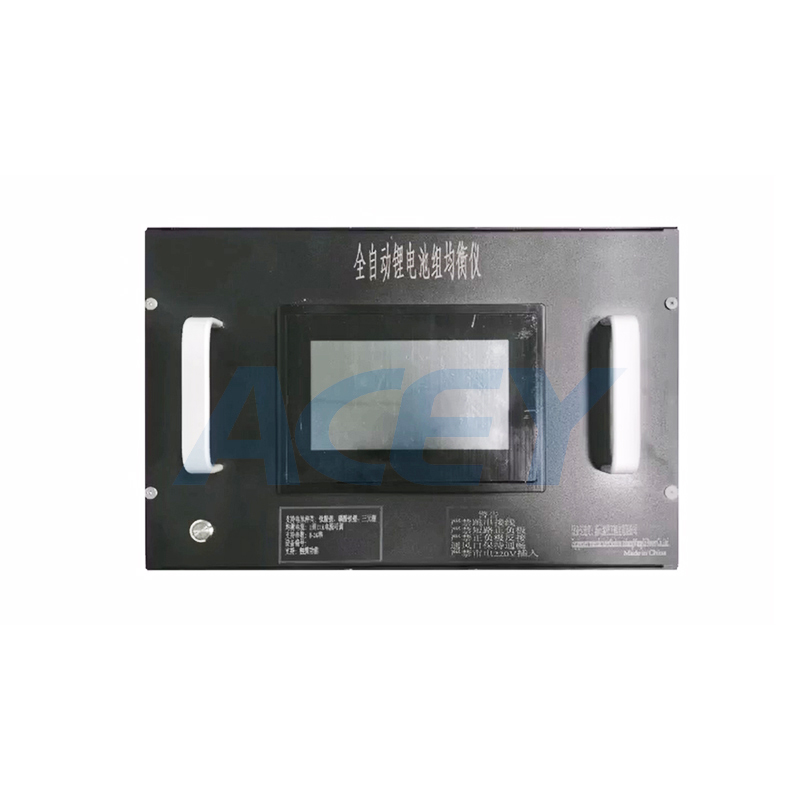

Display functions and touch controls
Display all cell voltages and touch control
Number of battery strings supported
2 to 24 strings of any string number
Support balanced current
1 to 20A current adjustable
Supported battery types
Ternary lithium battery, iron lithium battery
Function
Support multi-machine serial use
Temperature protection function
The product reaches the internal temperature of 50 degrees with automatic control function
Differential pressure accuracy
0. 000V voltage accuracy control
Equipment working voltage
DC12V
Protection method
The machine comes with instant protection for wrong connection, super series connection, reverse connection can be protected
Safeguard
Fuse and built-in self-developed protection module
Constant pressure equalization function
Support constant pressure equalization function Maximum differential voltage accuracy 0.000 control
Operating mode
Support charge equalization or discharge equalization, both modes are compatible
4S 12V Active Lifepo4 Lithium Battery Charge Balancer
ACEY-BBM is a bi-directional energy transfer system that works with high-frequency pulses to prevent and correct battery overcharge, undercharge, and overdischarge in a timely manner by finely managing the voltage of each battery in the battery pack at all times, thus extending the battery pack life.
5S Diy Active Li Ion Battery Charger Lipo Balancer equalizer
ACEY-BBM is a high precision, high efficiency, high power, low loss equalization module, always maintain the battery, online activation of the battery, so that the battery performance is more stable and reliable
6S Lithium Ion Battery Active Balancer Circuit For Storage Battery Packs
ACEY Battery balancer can keep the voltage difference of each cell within 10mv.Extend the battery span life 2-3times.Without capacity & voltage & battery type limitation .
7S 24V Battery Cell Voltage Balancer For Lifepo4 LTO NCM 18650 Pack
ACEY-BBM wiring is simple and convenient. When there is voltage inconsistency in the battery pack, the active equalization module immediately actively equalizes the battery by energy transfer, and the battery power flows dynamically in each single cell to achieve battery voltage equalization and power sharing.
8S 24V Lithium Solar Battery Balancer Module Active Battery Equalizer
ACEY active battery balancing module group is applicable to lithium ion batteries, lithium battery packs, electric vehicles, energy storage systems, communication base stations.
2V Lead Acid Lto Battery Active Cell Balancer Equalizer
ACEY-BBM is a high-efficiency and high-precision bi-directional energy transfer system that prevents and corrects battery overcharge, undercharge, and overdischarge in a timely manner by finely managing the voltage of each battery in the battery pack at all times, thus extending the battery pack life.
2V Lead Acid Battery Active Balancer Circuit With Led Indicator
The lead-acid battery active equalization module transfers the power from the high-voltage battery to the low-voltage battery by energy transfer, and the power transfer is carried out in parallel in both directions, even if the power of any high-voltage battery can be transferred to any low-voltage battery at the same time in parallel, which can be infinitely cascaded and infinitely expanded to achieve battery voltage balance.
6V Lead Acid Battery Active Cell Balancer Equaliser With Led Indicator
6V Lead acid battery balancer for supercapacitor, lead-acid battery pack
