1-32 Series 200A Charge 200A Discharge Battery Management System Tester Testing Machine

1-32 Series 200A Charge 200A Discharge Battery Management System Tester Testing Machine

Product Description

ACEY-BP32-200A200A bms tester with high degree of automation, fast testing speed and high testing accuracy. With test overcharge, overcharge recovery, overdischarge, overdischarge recovery, overcurrent (overcharge current and overdischarge current), internal resistance, self-consumption, short-circuit protection, overcharge protection time, overcurrent protection time, overdischarge protection time, equalization current, equalization voltage, 13 performance.
Can meet the current market lithium ternary batteries, lithium iron phosphate batteries and cobalt acid battery protection plate test, with lithium ternary batteries, lithium iron batteries and cobalt acid battery test gear switching function.
The instrument requires connection to a computer, computer hardware configuration requirements for general office computers can be, the system generally requires XP system, the instrument and the computer using industry-standard 232 interface.

Parameter

1)Input power:180~240V 50/60HZ
2)Power standard supply: AC 220V/50HZ，Range:±10%
3)The voltage of charge and discharge：5000mV ~102000mV
4)It can test and set the voltage range when this machine is charging and discharging..
5)Current accuracy：±(0.1%FS+0.1%RD)
6)Voltage accuracy：±(0.1%FS+0.1%RD)
7)Current resolution：1mA
8)Voltage resolution：1mV
9)Cycles：1～9999
10)With log function, including operation records and exception records during the whole process of testing, which can be used for traceability of the testing process.
11)Data processing, human-machine interface
12)Export data formation:Excel
13)Interface:RS232
14)Accuracy calibration/software calibration
15)With scan code start function
16)MES system connection

Test Functions

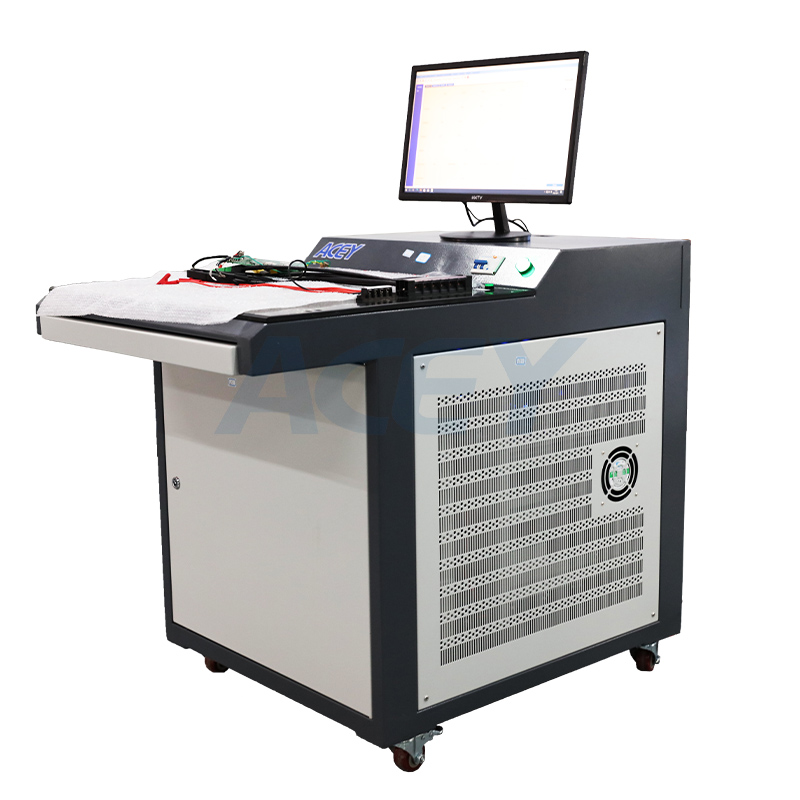

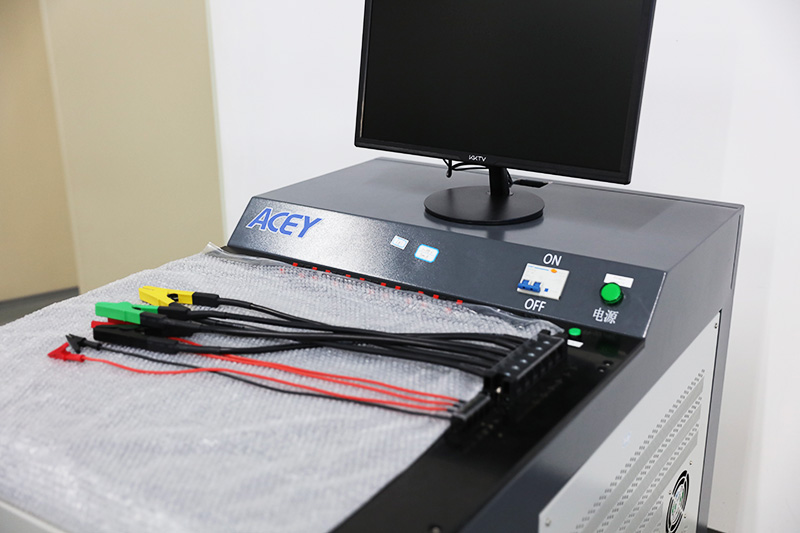

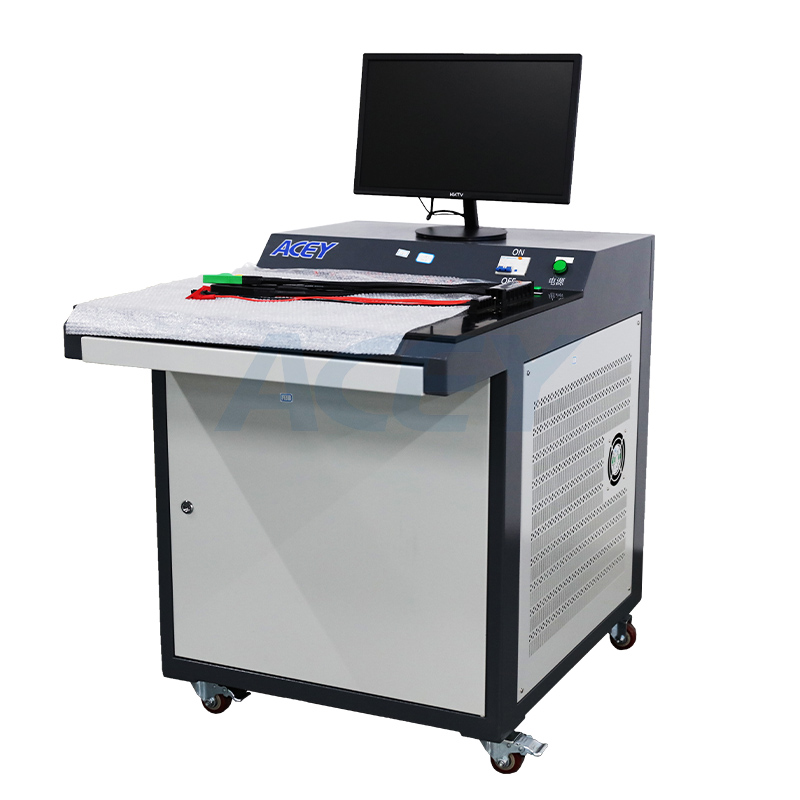

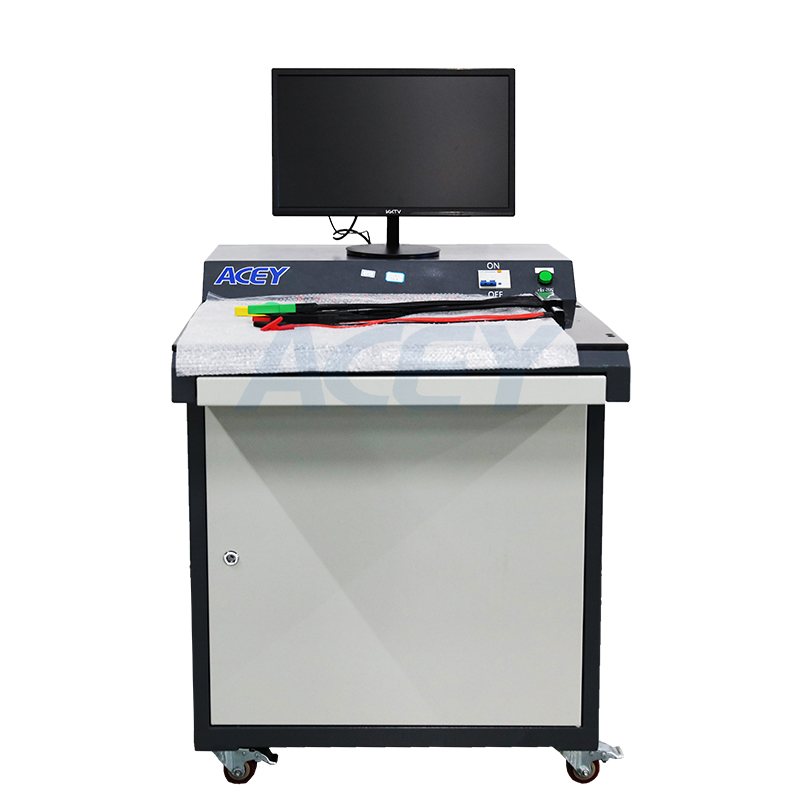

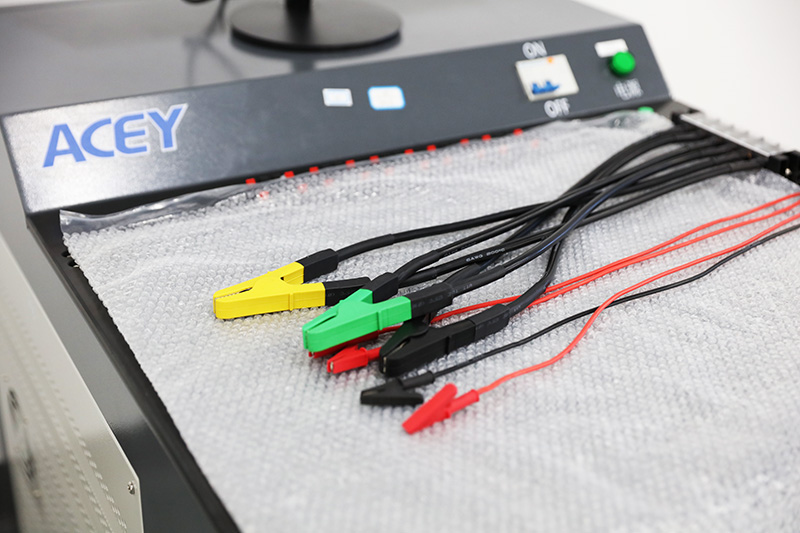

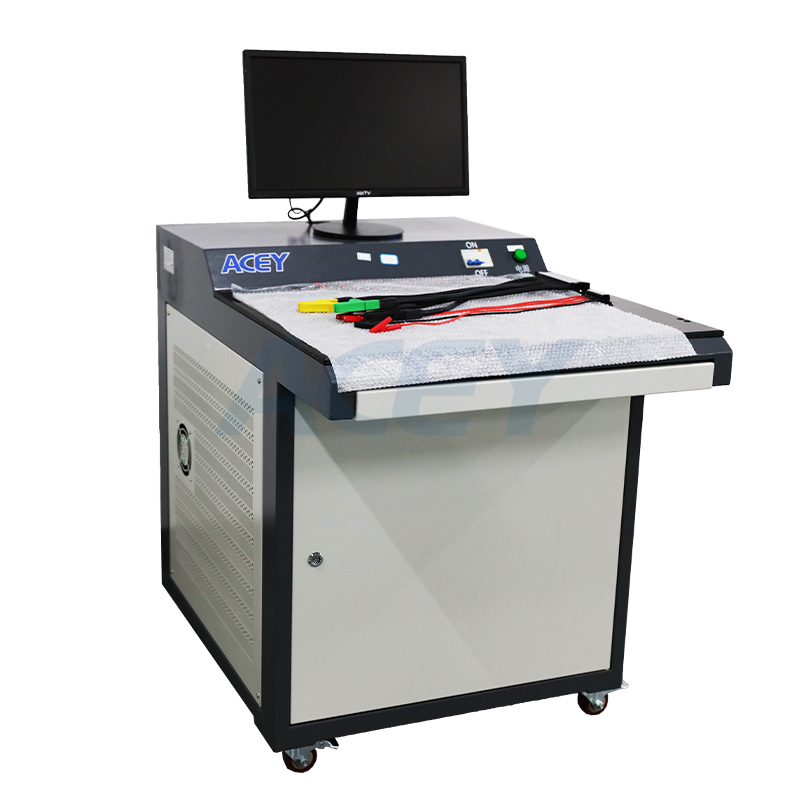

Product Display
