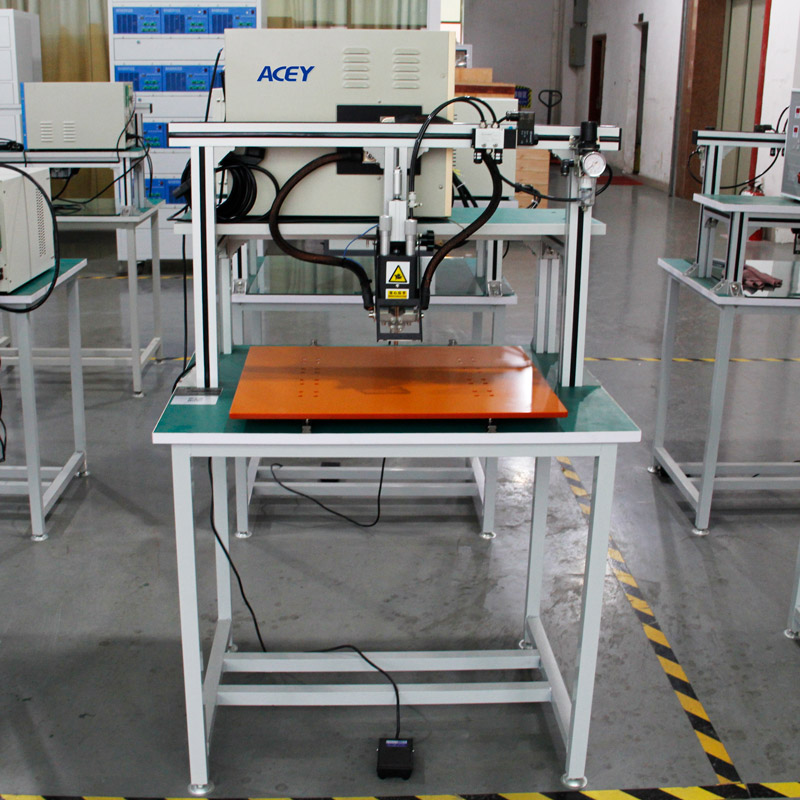

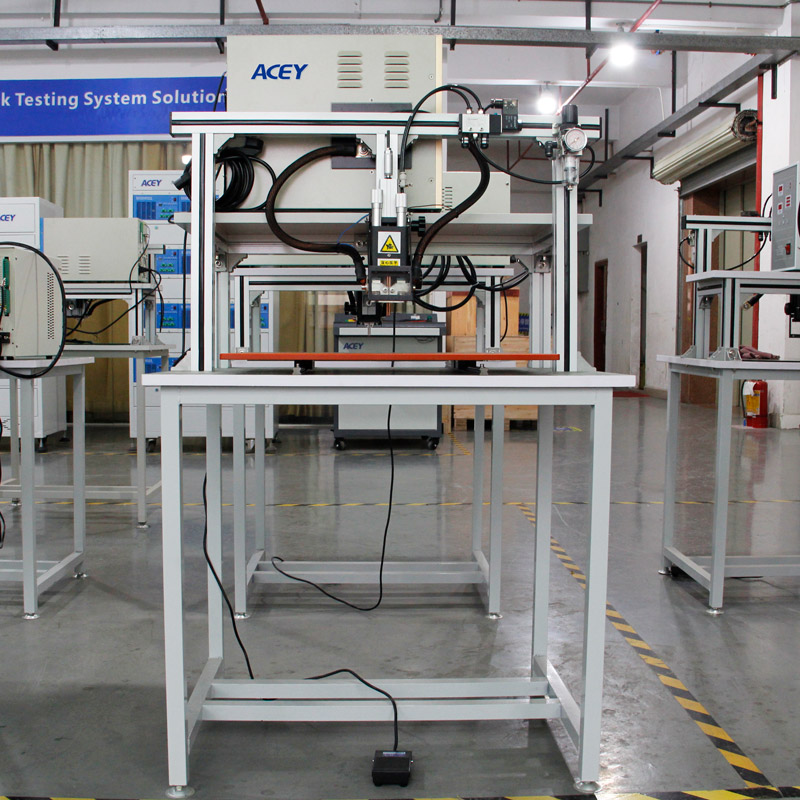

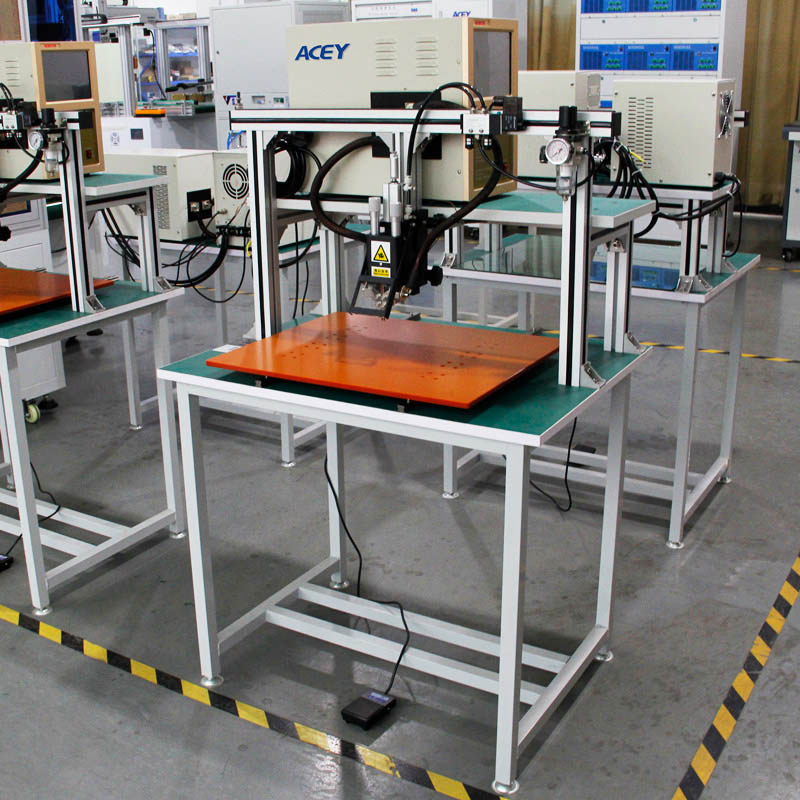

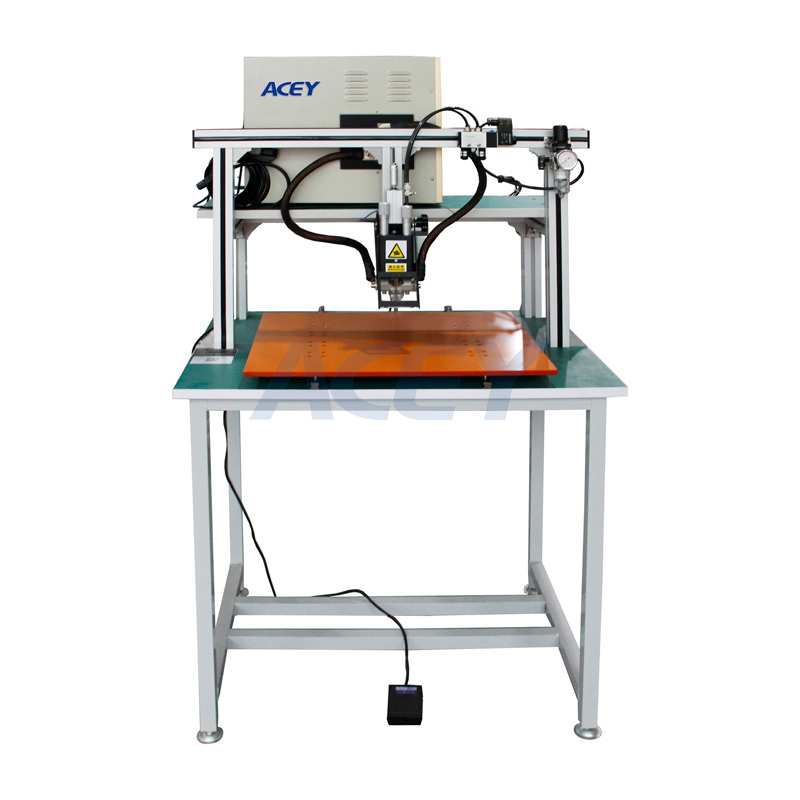

ACEY-10000T manual gantry lithium-ion battery pack spot welding machine is specifically designed for welding lithium-ion battery packs. Manual operation allows for greater flexibility and control, enabling operators to accurately position the battery pack and welding electrodes.
Brand:
ACEYItem No.:
ACEY-10000DCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7days10000A Transistor Manual Gantry Lithium Ion Battery Pack Spot Welding Machine With Slide
Product Description
ACEY-10000T manual spot welder is a general platform for cylinder battery pack assembly. It equipped with advanced 10000A DC inverter welding power supply, suitable battery for pack spot welding and assembly in the factory. This machine can assemble batteries like 18650, 26650, 21700, 32650, 32700, etc and Nickel or Nickel-Plated Steel strips, which support battery pack like E-Bike, Scooter, Electromobile.
Features
Specification
| Item No. | ACEY-10000T |
| Max output power of transformer | 35 KVA |
| Floating voltage | 10V |
| Control mode | Constant current control |
| Cooling mode | Forced air cooling |
| Setting data group | 99goups |
| Use | Electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc |
| Max thickness of parallel welding | 0.03mm~0.5mm |
| Max thickness of upper and lower butt welding | 0.3mm + 1mm |
| Machine weight | 23.5kg |
| External dimension | L810mm*W610mm*H1220mm |
| Input power | AC220V±10% 50/60Hz |
| Transistor welding power supply | |
| Communication interface | RS485 |
| Independent external touch screen interface: optional external 7-inch touch screen | |
| (DMT80480T070-18WT), the communication mode is RS485 | |
| External control function: | It can be controlled by an external industrial computer/PLC control, and cooperate with the automatic production of the machine |
| Dimensions | L430MM*W185MM*H400MM |
| Weight: | 25KG |
| Working voltage | Single phase AC220V±10% 50Hz |
| Output voltage | 1-6V DC |
| Output current Maximum short-circuit current | 10000A |
| Cooling method | Forced air cooling |
| Valve power supply | DC 24V±10% current <150mA |
| Environment temperature | -10℃~55℃ |
| Relative humidity | Below 80% |
