ACEY-5000D spot welding machine is used to weld the positive and negative terminals of multiple batteries and materials such as nickel sheets together, ensuring stable current transmission during the charging and discharging process of the battery pack. It is widely used in welding many battery packs such as power batteries, electric tools, and electric bicycles, etc.
Brand:
ACEYItem No.:
ACEY-5000DCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:

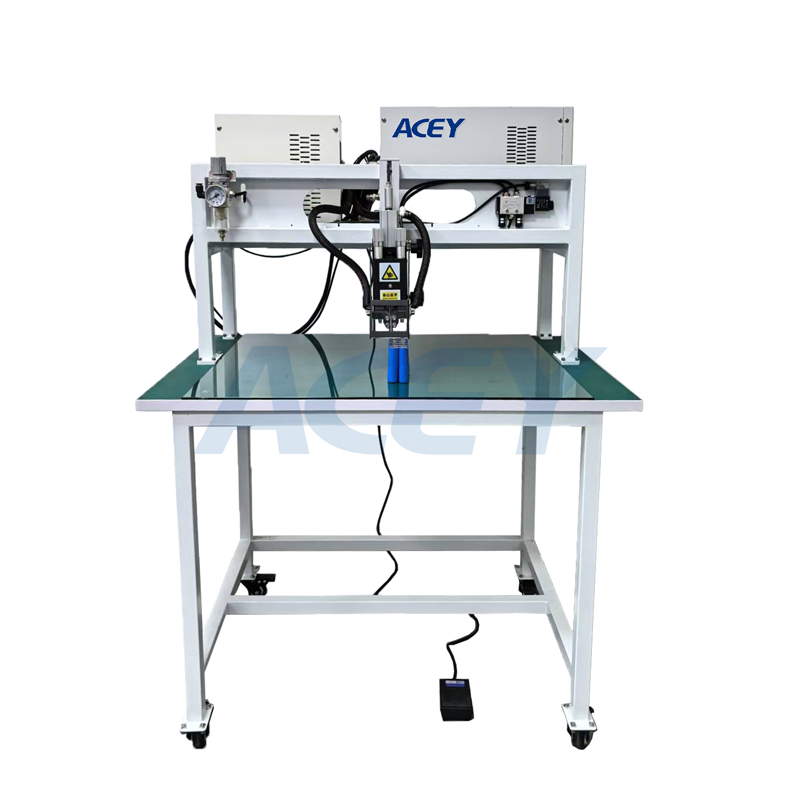

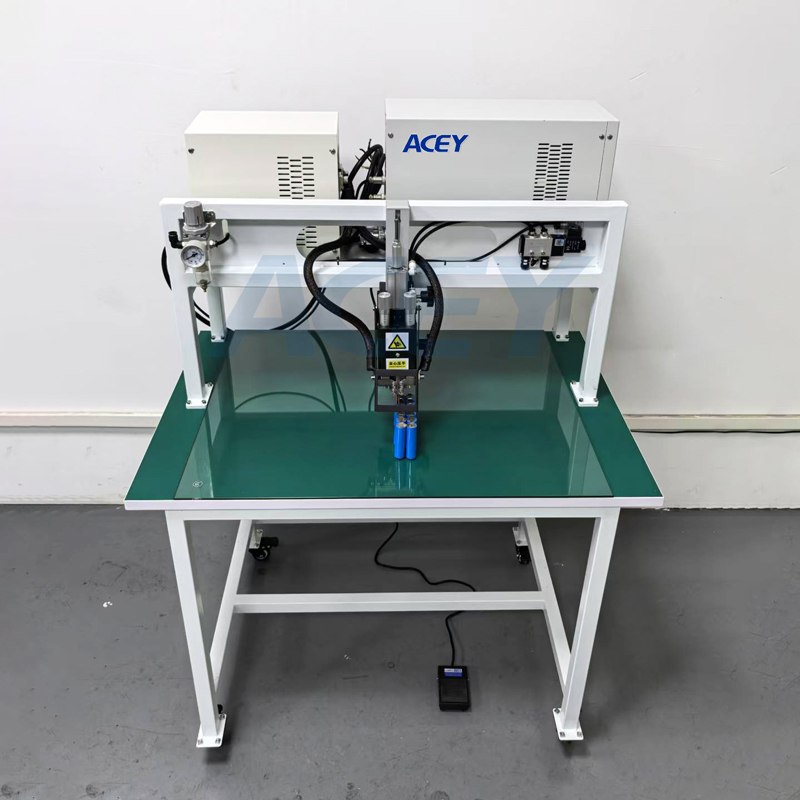

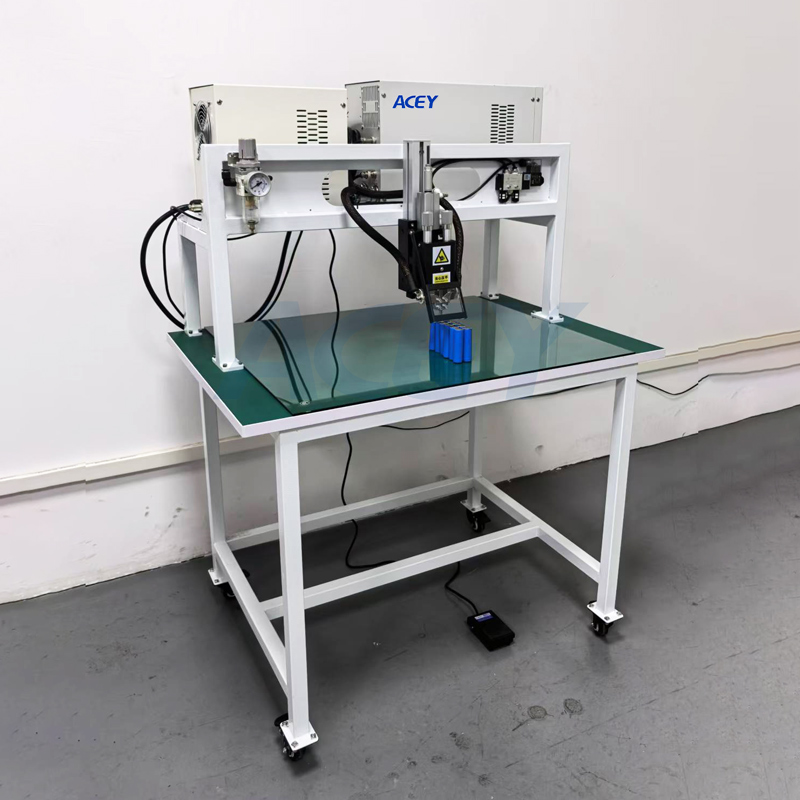

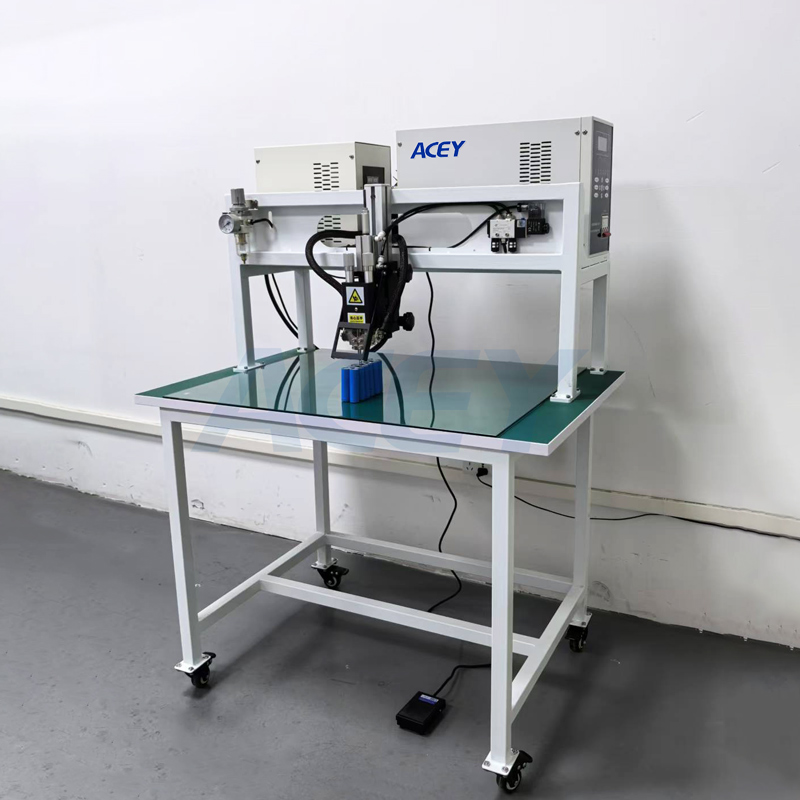

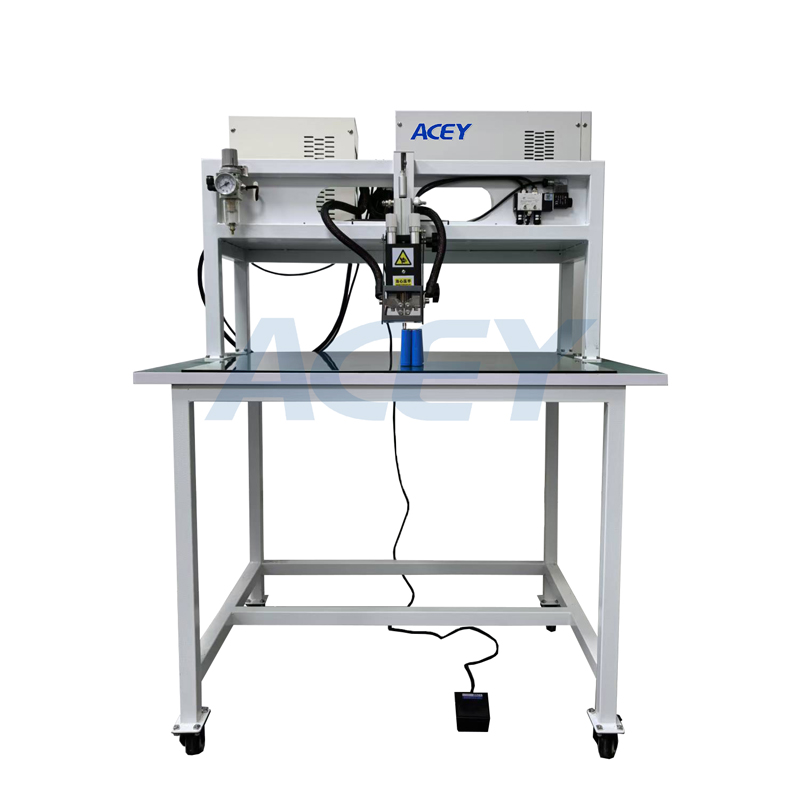

7days5000A DC Inverter Pedal Manual Gantry Spot Welding Machine For Battery Pack
Product Description
ACEY-5000D lithium battery spot welding machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply, Suitable battery for pack spot welding and assembly in the factory. This machine can assemble batteries such as 18650, 21700, 26650, 32650, 32700, etc... And nickel or nickel plated steel strips. Support welding battery packs for electric bicycles, scooters, electric vehicles, and more.
Features
Specification
| Item No. | ACEY-5000D |
| Max output power of transformer | 35 KVA |
| Output max short circuit current | 5000A |
| Floating voltage | 10V |
| Control mode | constant current control |
| Cooling mode | forced air cooling |
| Setting data group No. | 8 |
| Suit for | electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc |
| Max thickness of parallel welding | 0.03mm~0.5mm |
| Max thickness of upper and lower butt welding | 0.3mm + 1mm |
| Machine weight | 23.5kg |
| External dimension | L810mm*W610mm*H1220mm |
| Input power | 3Phase AC380V±10% 50/60Hz |
Product Display
Lithium Battery Pack Single Side Automatic Spot Welder With Rotatable Welding Head
ACEY-S200C with welding head rotation function, is used for 18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding.
5000A Battery Pack Cylindrical Cell Gantry Spot Welder With Slide Rail
This machine can assembling batteries like 18650, 21700,26650, 32650... and Nickel or Nickel-Plated Steel strips.
Pneumatic Single Side Automatic Spot Welding Machine For Battery Pack Assembly
ACEY-S200A can be matched with the production line of lithium battery group,suitable for battery pack spot welding and assembly in the factory for 14500/18650/21700/26650/32650/32700 multi-parallel multi-series combination
Electric Single Side CNC Automatic Spot Welder For Battery Pack Assembly
ACEY-S200B is suitable for the processing of various and diversified battery packs like 18650,21700,26650,32650,32700,and can be equipped with 5000A/8000A/10000A AC, transistor or DC inverter power supply.
Double Sides CNC DC Inverter Automatic Spot Welding Machine
ACEY-D300C with Rotatable Welding Head can be equipped with 5000A/8000A/10000A AC, transistor or DC inverter power supply And is used for 18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding.The welding head adopts water-cooled circulating heat dissipation to effectively reduce the loss of welding needle and improve the welding effect.
Pneumatic Double Sides CNC Automatic Spot Welding Machine for Battery Pack
ACEY-D300A is equipped with 5000A/8000A/10000A AC, transistor or DC inverter power supply.It can weld pure nickel sheet less than 0.2mm and steel nickel sheet more than 0.3. Bump welding is required. Double sided automatic welding, high efficiency. Programming is simple.
Double Sides Cylindrical Battery Pack Automatic Spot Welder
ACEY-D300B support breakpoint start, automatic start, and manual start.And is used for18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding.The power supply can be equipped with 5000A or 8000A AC, transistor or DC inverter.The operation and debugging is very easy and convenient.
Double Sides Cnc Automatic Battery Spot Welding Machine
ACEY-D300 is used for 18650,21700,26650,32650,32700 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect and the highly automated human-machine interface makes it easy to operate.
