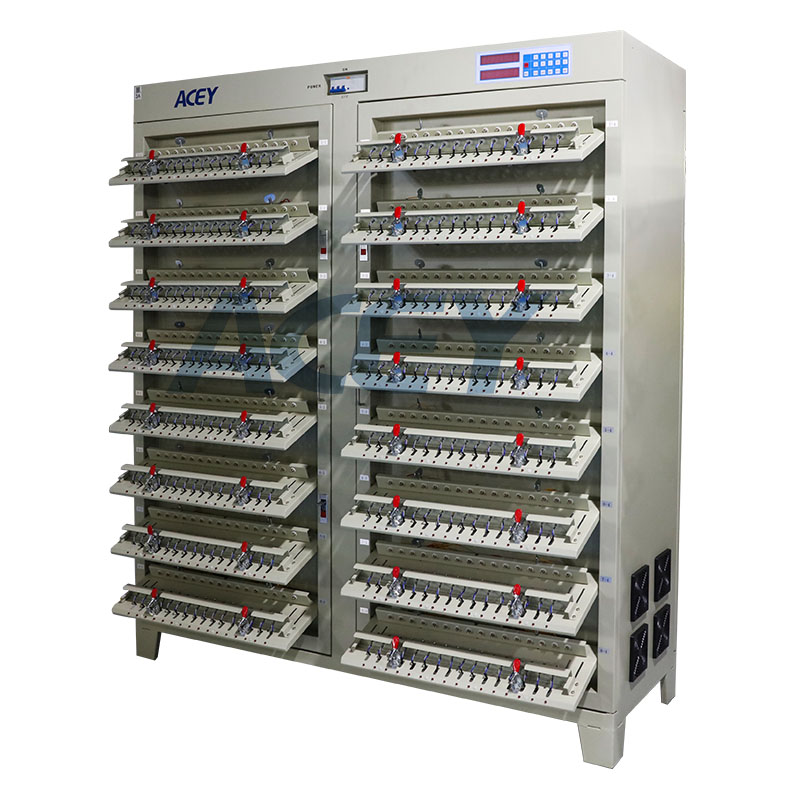

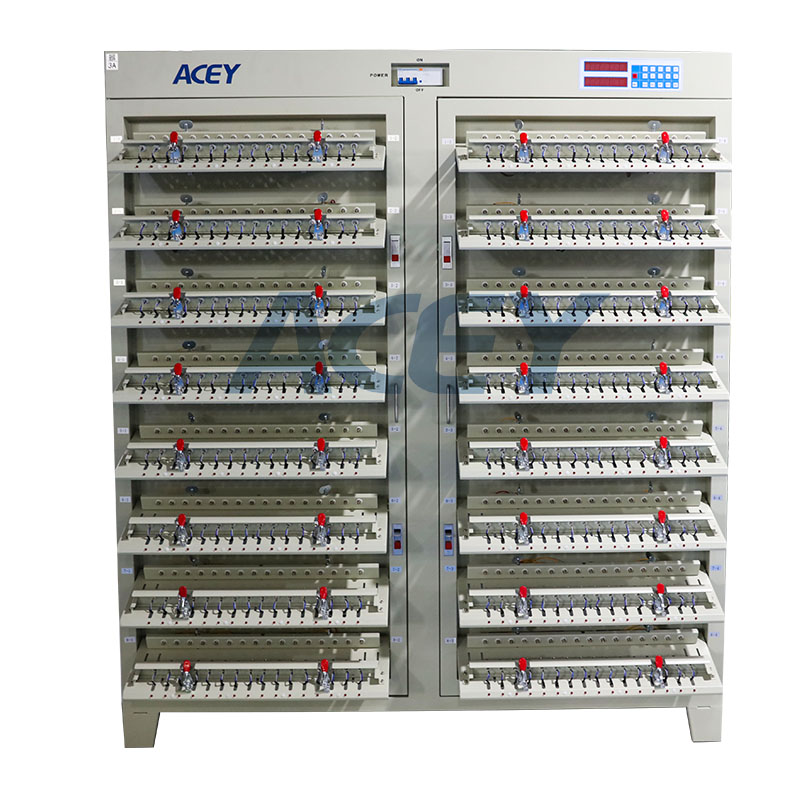

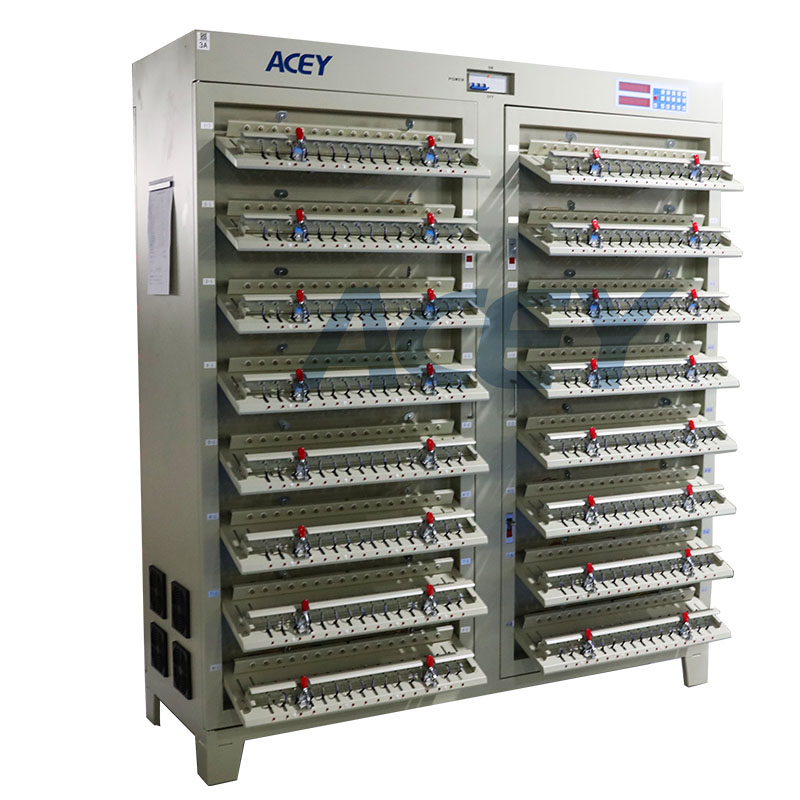

7days512 Channel 5V 6A Battery Cell Formation And Grading Tester For Lithium Battery
Features
This battery testing machine can be used for cylindrical battery capacity, internal resistance, charging and discharging test, etc.（Optional: Battery tester with tray loading and Energy feedback function.）
1. Each channel can be started and stopped at a single point, and the response speed is fast.
2. The operation is simple, convenient and intuitive.
3. Modular design, easy to maintain..
4. The digital current and voltage automatic calibration function.
5. Using network connection and SQL database.
6. The hardware technology is advanced, stable and durable.
7.Suitable for testing 18650,21700,26650,32650,32700 battery cell.
Specification
Structure Of Equipment (Device)
Number of device channels
512 Channels
Size (width * depth * height) cm
160*55*184
Clamp form
Cylindrical four-wire fixture
Color of device
Dark grey
Clamp center distance
40mm/35mm
Support battery height
Adjustable within 10-100mm range
Working power
Three-phase five-wire system ac380v±10%, 50hz
Working power dissipation
≤27Kw
Work environment
Temperature 0-40 ℃, relative humidity ≤80%
Heat-dissipating method
Natural wind intake and upward exhaust
Channel Parameter
Voltage testing range
0-5V, 1MV resolution
Battery voltage range
Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range
2.5V-4.5V
Voltage accuracy
±(1‰ reading +1‰ full)
Current range
60mA-6A,Resolution: 1mA
Current accuracy
±(1‰ reading +1‰ full)
Control mode
Computer connection equipment work, Whole Machine Control
Software Function
Communication mode
Rs485, baud rate 57,600
Process set
Maximum 32 work steps and 256 cycles
Charging mode
Constant current, constant voltage
Charging cutoff condition
Voltage, current, time, capacity
Discharge
Constant current
Discharge cut-off condition
Voltage, time, capacity
Protection function
Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range
0 - 30,000 minutes
Time accuracy
≤±1‰
Sampling inspection period
≤8s
Minimum data recording frequency
≤8s
Battery grading
By capacity, time, discharge platform, etc
Data processing
Data, graphs, and loop diagrams
