$this->product_detail['product_name']

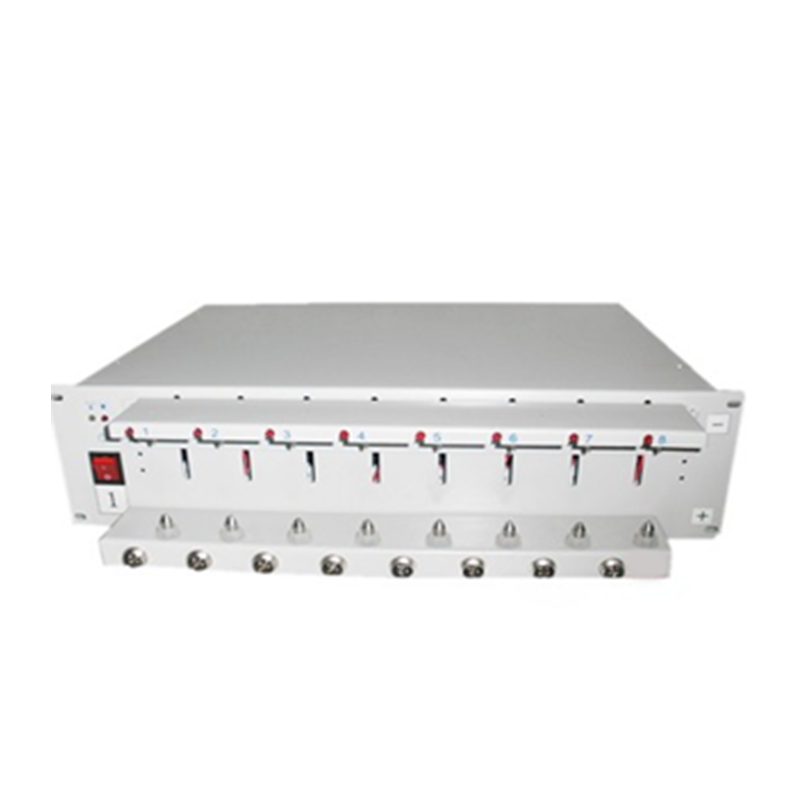

5V3A Eight-Channel Battery Analyzer System Cylindrical Battery Pack Testing Machine

ACEY-BT0503 is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries.

  • Brand:

    ACEY
  • Item No.:

    ACEY-BT0503
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Eight-Channel Battery Analyzer System Cylindrical Battery Pack Testing Machine

Description

ACEY-BT0503 is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries.This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

Specification

Model No.
ACEY-BT0503
Number of channels
8 channels/set
Communication method
RS232
Input power supply
AC220V±10%, 50Hz
Input power
150W
Current control range
0.05A-3A
Current measurement range
0.001A-3A
Current measurement accuracy
±(0.1%FS+0.1%RD)
Voltage control range
constant current charging 0.01V-5V, constant voltage charging 3V-5V; discharge 0V-5V
Voltage measurement range
0.01V-5V
Voltage measurement accuracy
±(0.1%FS+0.1%RD)
Step time setting range
1-720min
Time measurement resolution
1S
Continuous cycle range
1-999 times
Data recording conditions
△t, △V, △I
Working temperature
10℃-40℃ (20℃-30℃)

Product Details

Eight-Channel Battery Analyzer System Cylindrical Battery Pack Testing Machine
