![$this->product_detail['product_name']](/uploadfile/category/b89002a2a35eafe899fa835a932713f1.jpg)
Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.
Brand:
ACEYItem No.:
ACEY-BCTCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:

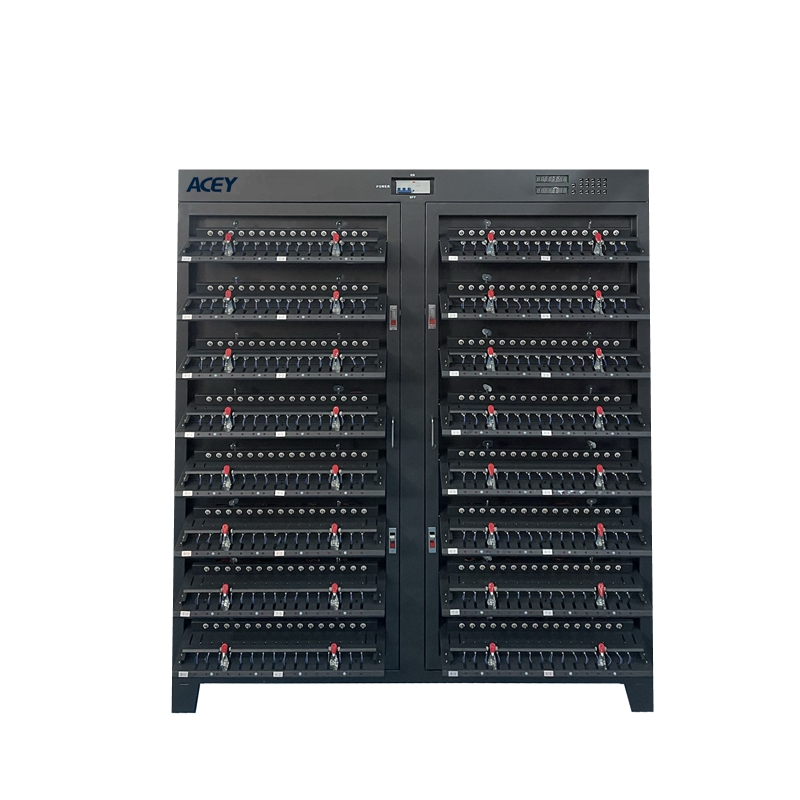

7daysCharge and Discharge Lithium Ion Cylindrical Cell Battery Capacity Tester
Description
*Voltage and current: 5V/2A; 5V/3A; 5V/5A; 5V/6A; 5V/10A etc
*Channels: 96,128,256,512,768 or others.
*Battery type: Cylindrical cell 18650 21700 26650 32650 32700
*Support battery height: Adjustable within 10-100mm range
*Working power: Three-phase five-wire system AC380V±10%, 50HZ
*Voltage measuring range 0-5V, 1MV resolution
*Battery voltage range: Charge: 0-4.5V; Discharge: 4.5-2V
*Constant voltage range 2.5V-4.5V
Features
Each channel can be started and stopped at a single point, and the response speed is fast.
The operation is simple, convenient and intuitive
Modular design, easy to maintain.
The digital current and voltage automatic calibration function
Using network connection and SQL database
The hardware technology is advanced, stable and durable.
Specification
| Working power | Three-phase five-wire system AC380V±10%, 50HZ |
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% |
| Heat-dissipating method | Take in the wind naturally and exhaust it upward |
| Channel Parameter | |
| Voltage measuring range | 0-5V, 1MV resolution |
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V |
| Constant voltage range | 2.5V-4.5V |
| voltage accuracy | ±(1‰ reading +1‰ full) |
| Current accuracy | ±(1‰ reading +1‰ full) |
| Software Function | |
| Control mode | Computer connection equipment work, FCL control |
| Communication mode | RS485 baud rate 57,600 |
| Process set | A maximum of 32 work steps and 256 cycles are se |
| Charging mode | Constant current, constant pressure |
| Charging cutoff condition | Voltage, current, time, capacity |
| Discharge | constant current |
| Discharge cut-off condition | Voltage, time, capacity |
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc |
| Time range | Set it anywhere from 0 to 30,000 minutes |
| Time accuracy | ≤±1‰ |
| Sampling inspection period | ≤8S |
| Minimum frequency of data recording | ≤8S |
| Battery sorting | By capacity, time, discharge platform, etc |
| Data processing | Data, graphs, and loop diagrams |

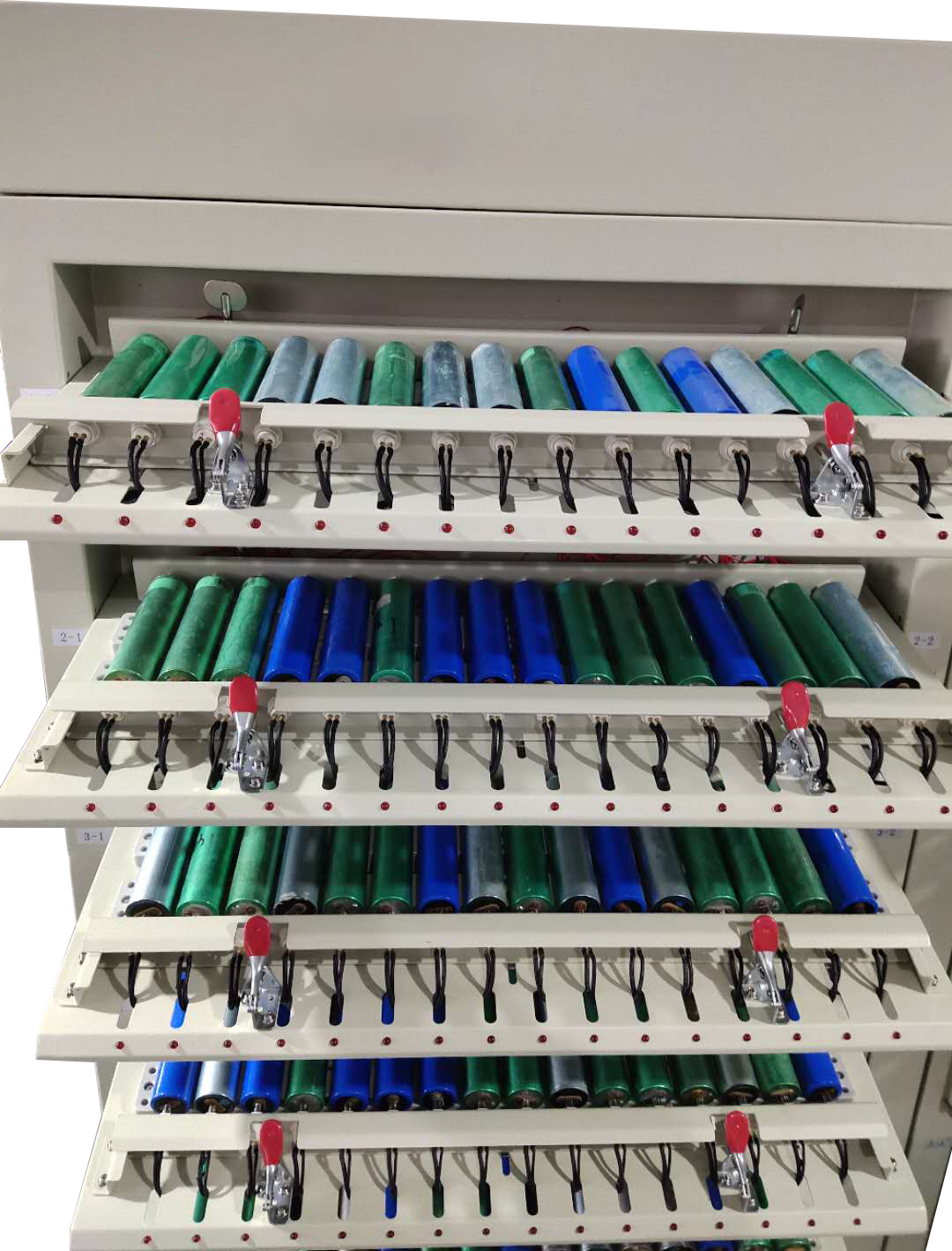

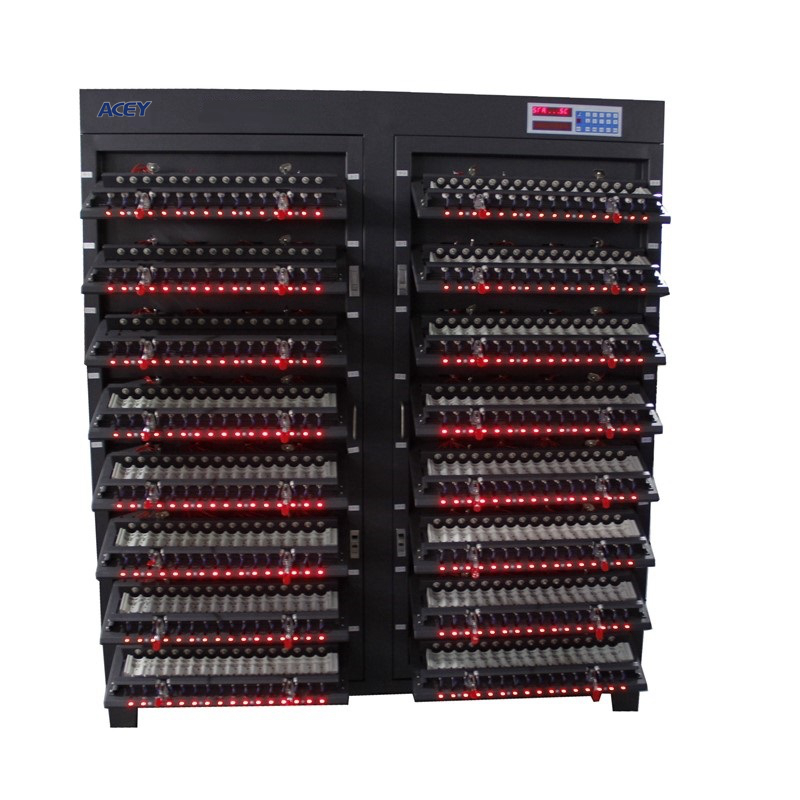

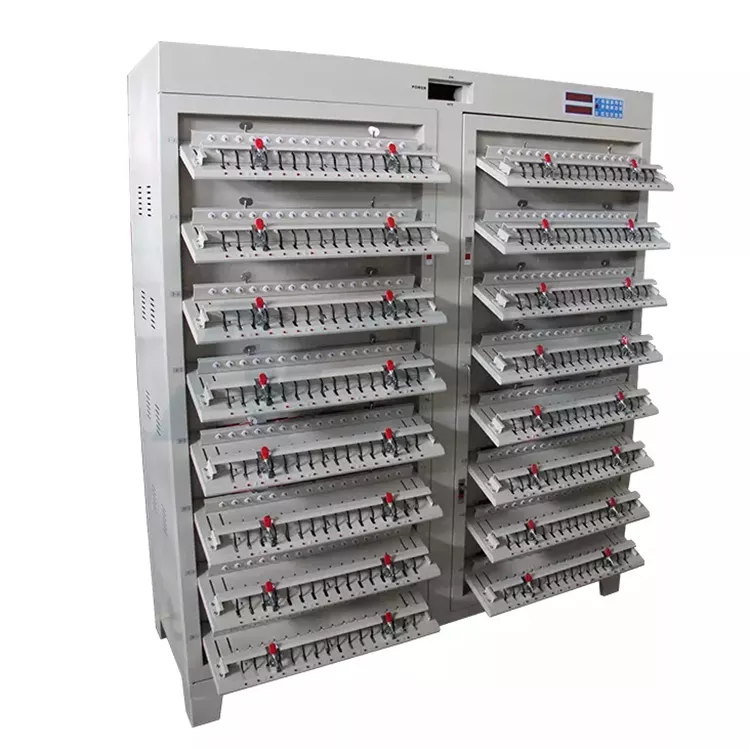

Product Display
